ACT 25 meter LSZH Singlemode 9/125 OS2 fiber patch cable duplex with LC connectors

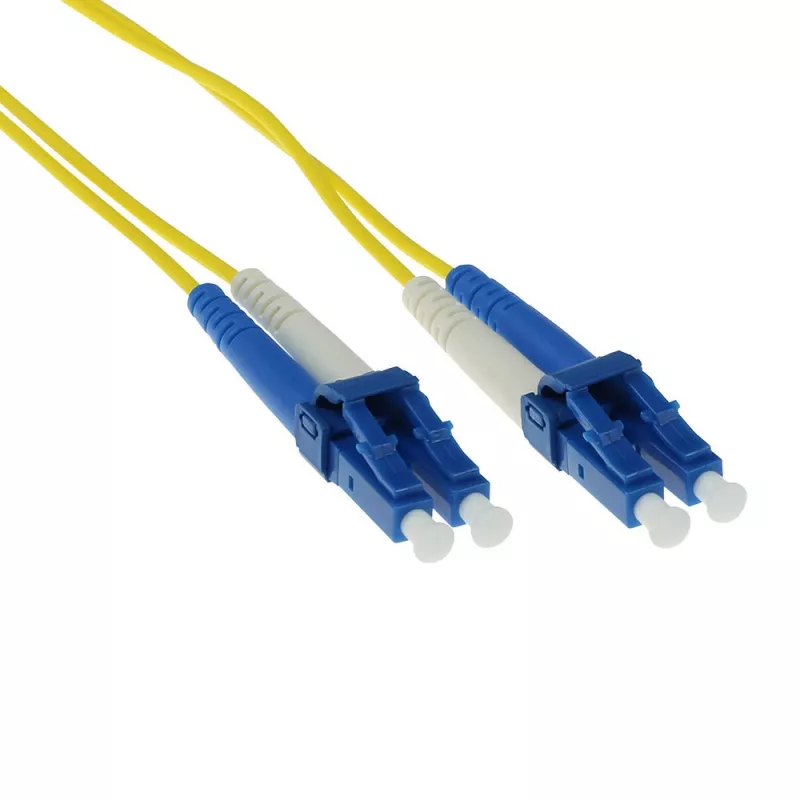

Fiber Patch Cable Duplex LC 25m ACT RL9925 is a 25-metre singlemode fiber patch cable with duplex LC–LC connectors and a 9/125 µm OS1 core. The cable has a yellow PVC sheath and a 2 × 3 mm diameter, designed for high-quality signal transmission in network and telecom environments.

Advantages

The duplex LC connectors provide reliable, low-loss connections for singlemode networks. A 9/125 µm OS1 core ensures compatibility with singlemode equipment and long-distance links. The yellow PVC sheath makes the cable easy to identify in wiring bundles while maintaining flexibility for indoor routing.

Suitable for

• Connecting network devices in data centers
• Telecommunications links and patch panels
• Indoor singlemode fiber installations

Key specifications

• Length: 25 m
• Connectors: LC — LC (duplex)
• Core: 9/125 µm OS1
• Diameter: 2 × 3 mm
• Sheath material: PVC
• Colour: Yellow

How to use

Route the cable between devices ensuring gentle bends and avoiding sharp angles to prevent microbending loss. Insert the LC connectors into matching LC ports until they click. Use cable management and labeling to maintain organized runs and prevent strain on connector ends.

Recommendations

For indoor installations where low smoke and halogen-free properties are required, choose the LSZH variant referenced in the product data; otherwise the PVC-sheathed version is suitable for standard indoor applications. Avoid exceeding the minimum bend radius and protect connectors from dust with dust caps when not in use.
