ACT 2-Port HDMI 4K@60Hz KVM switch, USB 3.2 Gen1 (USB 3.0)

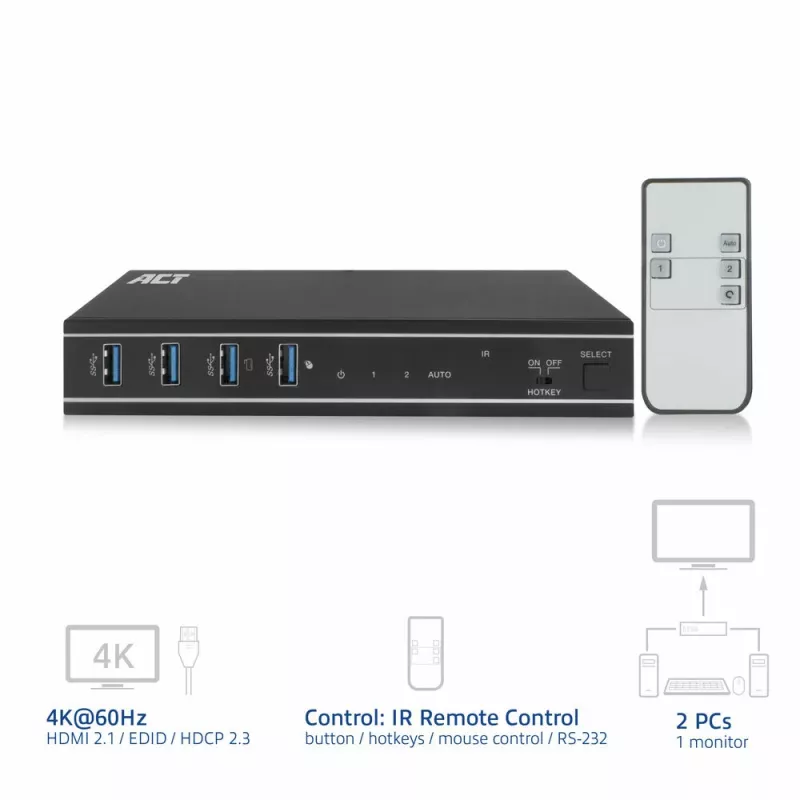

The AC7912 2-port 4K HDMI KVM switch lets you simplify your workspace by controlling two computers while using a single monitor, a single USB keyboard and mouse. The HDMI output supports a monitor with a resolution up to 4K@60Hz. The AC7912 lets you switch between computers using the buttons on the switch itself, the IR remote control, keyboard hotkeys, a mouse, or RS-232 commands.

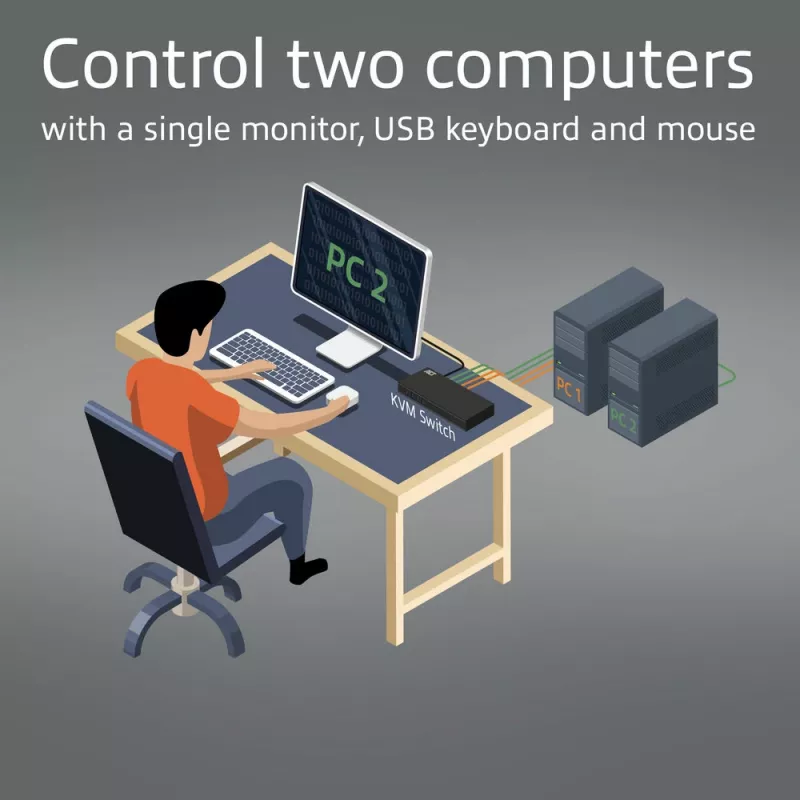

Control two devices with a single monitor, mouse and keyboard
Simplify your workspace by connecting two computers to the AC7912 via HDMI. Connect a single HDMI monitor and a single keyboard and mouse set to the switch and control both computers with minimal setup.

Supports up to 4K@60Hz
The AC7912 HDMI KVM switch supports 4K@60Hz, 4:4:4 12-bit, HDMI 2.0 and is HDCP 2.3 compliant. The EDID emulator in the KVM switch provides the correct display information from the monitor to the connected computer.

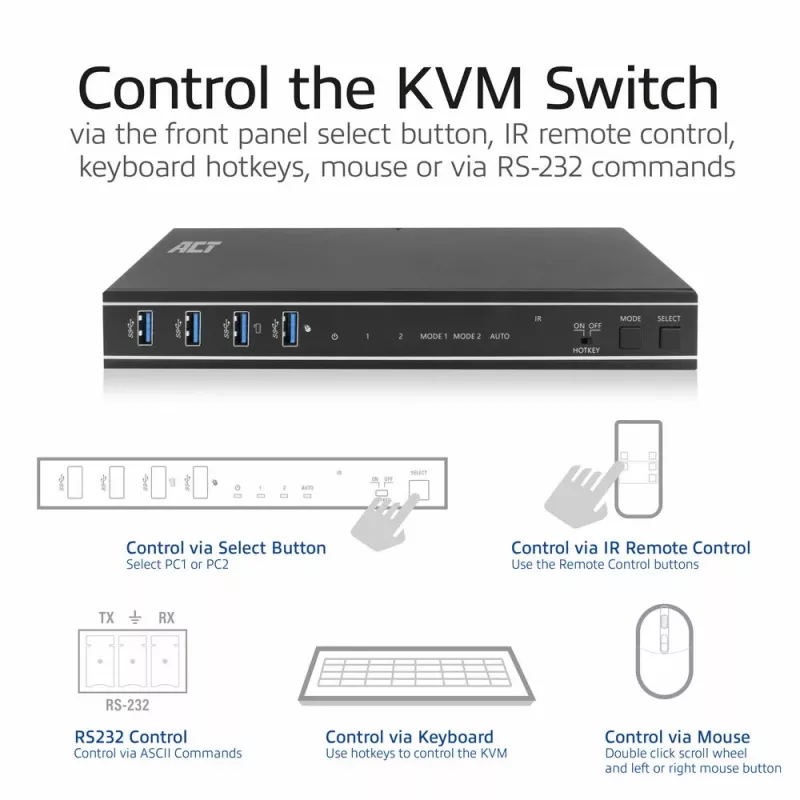

Easy switching between computers

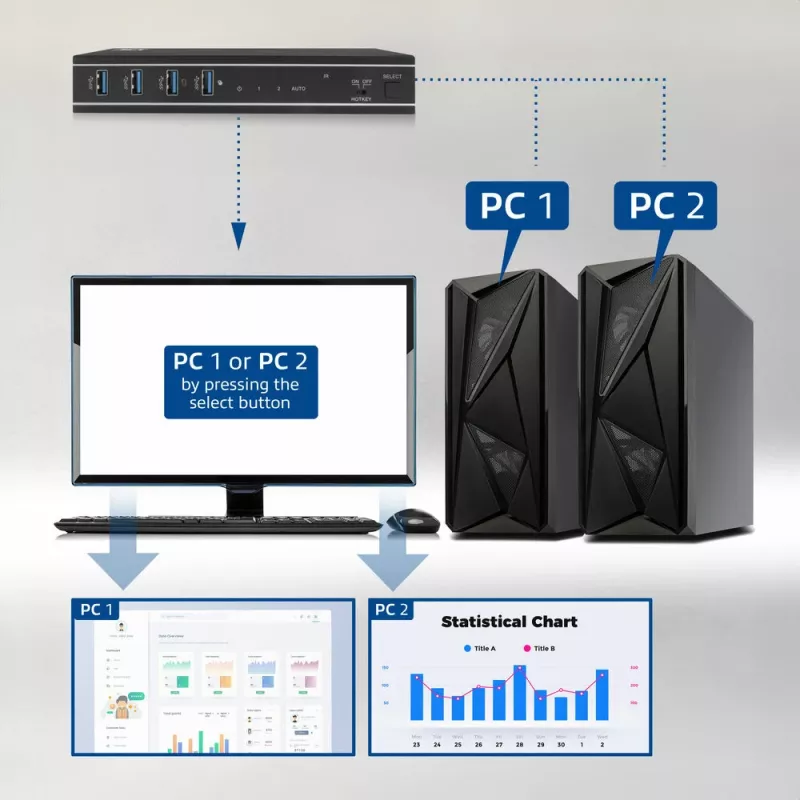

Switching between two connected computers is easy with the dedicated button on the AC7912 KVM switch. Prefer to use IR control, a mouse, keyboard shortcuts or RS-232 commands? This is also supported.

Auto input switching
Have two computers connected to the KVM switch and only one is active? The AC7912 will automatically detect the active device.

Additional features

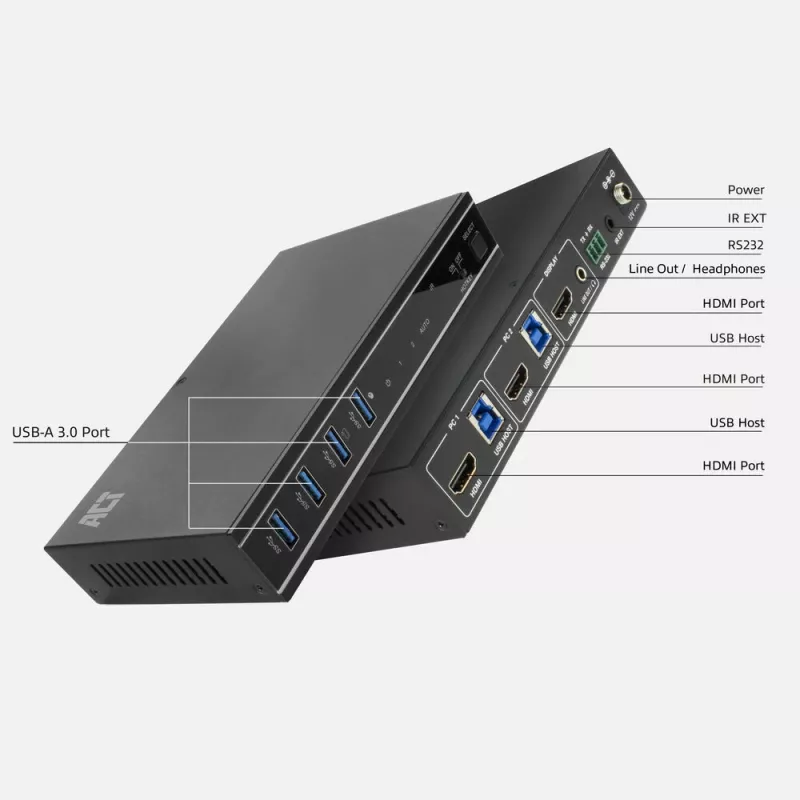

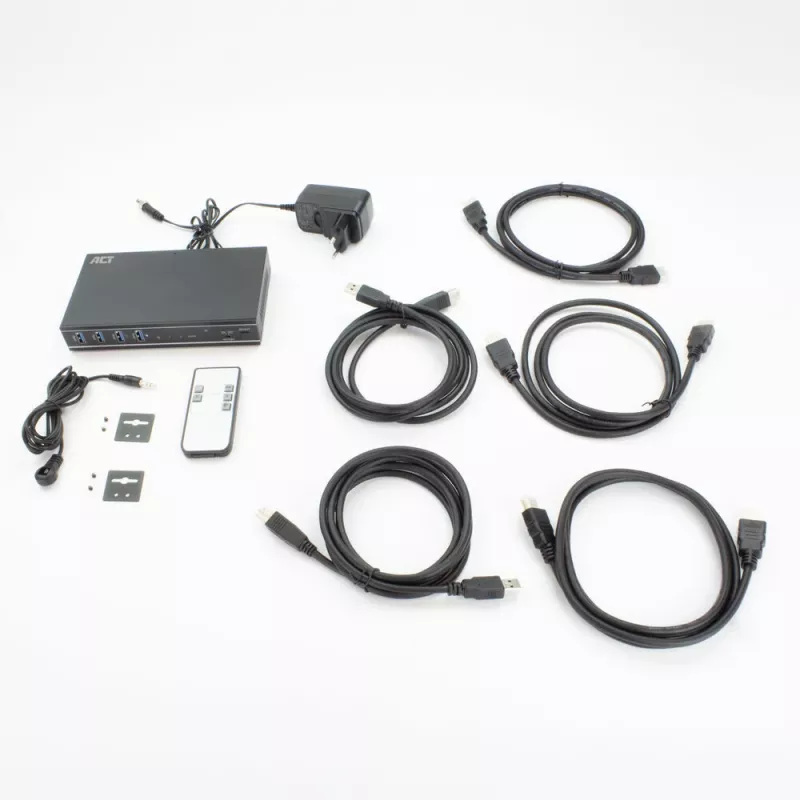

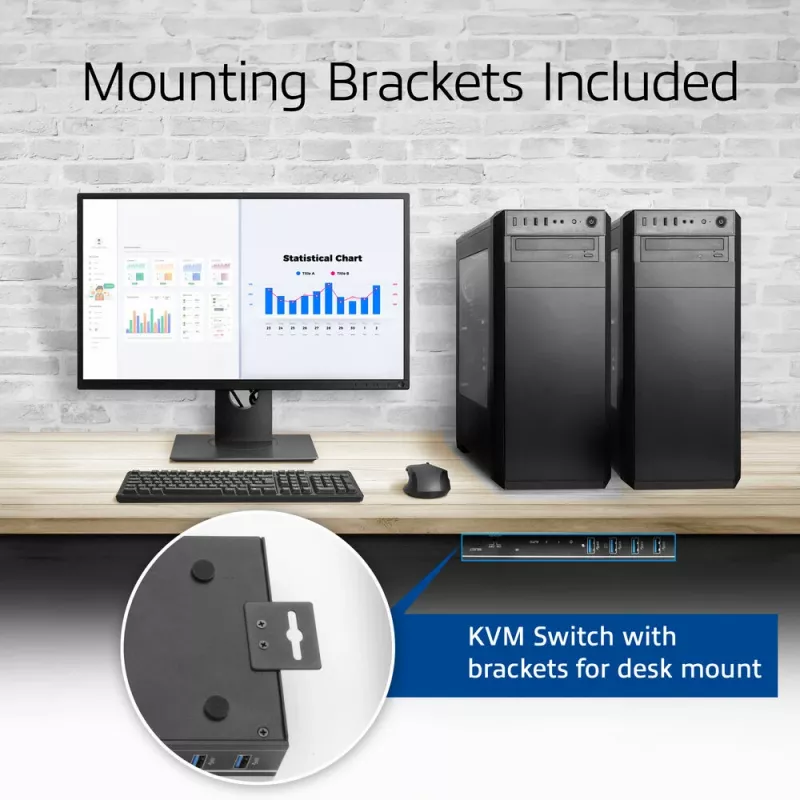

The AC7912 includes four USB 3.2 Gen1 (USB 3.0) 5Gbps ports for sharing peripherals, such as a keyboard, mouse, printer and more. The switch also has a 3.5mm audio jack for connecting headphones or speakers. HDMI cables, USB cables, remote control, RS-232 connector and mounting brackets are included.

Prevent accidental power cord disconnection

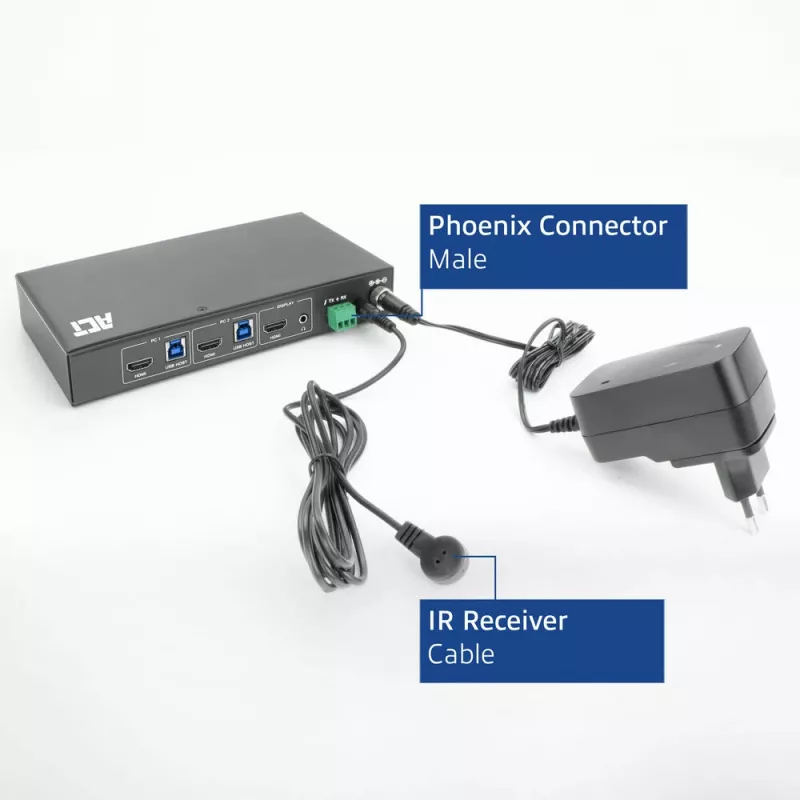

The power connection on the KVM switch is secured with a screw lock to prevent accidental disconnection.

User scenarios
Business use:
- Government offices: Control sensitive systems that are isolated from the network.
- Datacenters and server rooms: Troubleshoot, update and maintain servers.

Home use:
- Home office: switch easily between your personal computer and work laptop and use only one monitor, mouse, keyboard setup.
- Gaming: switch between a gaming console/desktop and a personal laptop.

Whether you’re a professional, home user, or gamer, this 2-port HDMI KVM switch streamlines your setup while maintaining performance and security.

ACT 2-Port HDMI 4K@60Hz KVM switch, USB 3.2 Gen1 (USB 3.0). Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Data transfer rate (max): 5 Gbit/s. Product colour: Black. Power source: DC, Input voltage: 12 V, Input current: 1 A. Cables included: HDMI, IR, USB Type-A to USB Type-B

How to use

Connect each computer to the KVM switch via HDMI and connect a single HDMI monitor to the output. Plug a USB keyboard and mouse into the switch’s USB ports and attach any additional USB peripherals to the available USB 3.2 Gen1 ports. Connect power and secure the connector using the screw lock. Use the front-panel button, IR remote, keyboard hotkeys, mouse, or RS-232 commands to switch between the two connected computers. The device can also detect and switch automatically to the active input.

Recommendations

For reliable 4K@60Hz performance, use high-quality HDMI 2.0 cables and ensure connected computers support HDMI 2.0 and the required graphics output. Maintain updated drivers on connected systems to ensure proper EDID communication and HDCP compliance.
