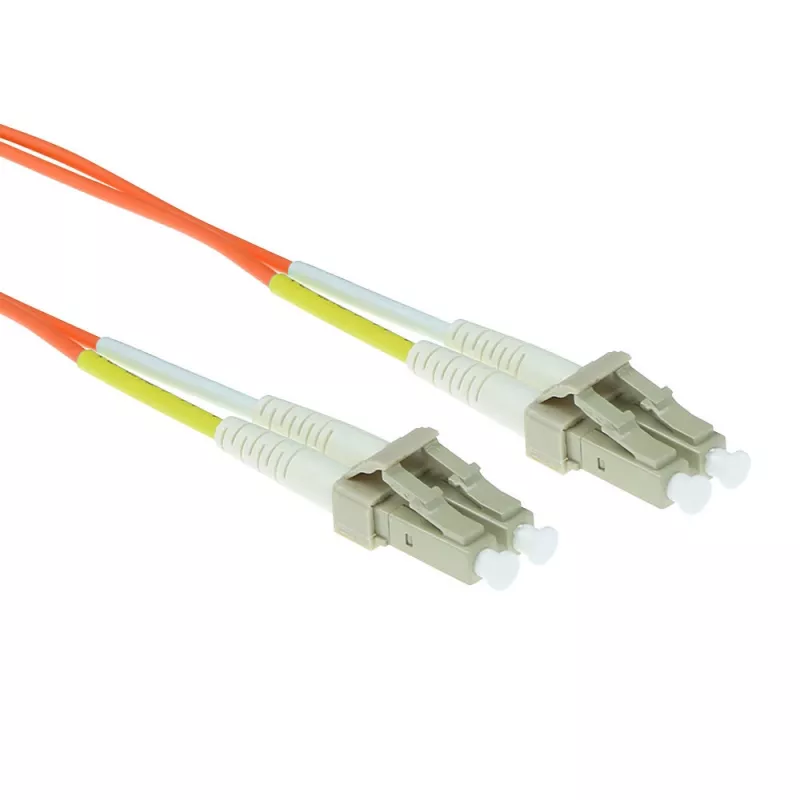

ACT 15 meter LSZH Multimode 50/125 OM2 fiber patch cable duplex with LC connectors

The ACT 15 meter LSZH Multimode 50/125 OM2 fiber patch cable duplex with LC connectors provides a reliable optical link for local area networks and inter-rack connections. Designed for multimode fiber systems, this 15 m cable supports high-speed data transmission within data centers, server rooms and office environments. The LSZH (Low Smoke Zero Halogen) jacket reduces toxic and corrosive emission in case of fire, making the cable suitable for installations where safety and low smoke generation are required.

Advantages

This fiber patch cable uses OM2 50/125 multimode fiber to deliver consistent optical performance for short- to medium-range links. Duplex LC connectors ensure stable bidirectional communication with reduced insertion loss and accurate alignment. The LSZH outer jacket improves safety in enclosed spaces by limiting smoke and halogen release. The cable’s 15 m length offers flexibility for routing between racks, panels and active devices while maintaining signal integrity.

Suitable for

• Interconnecting switches, patch panels and servers within data centers
• Office network backbone and telecommunication closets
• Cabling between optical transceivers and distribution panels
• Short- to medium-distance multimode fiber links in enterprise environments

Key specifications

• Fiber type: Multimode 50/125 µm (OM2)
• Connector type: Duplex LC on both ends
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Cable length: 15 meters
• Polish/type: Typically UPC/APC compatibility depends on connector polish—standard multimode LC duplex
• Typical applications: Data center patching, horizontal and backbone links

How to use

Route the ACT multimode duplex cable between the two designated ports, ensuring the LC connectors are fully inserted into the transceivers or panel adapters until they click into place. Avoid tight bends and ensure bend radius recommendations for multimode fiber are respected to prevent increased attenuation. Secure the cable along trays or in cable management panels to prevent strain on the connectors. When disconnecting, depress the LC connector latch and pull straight out without twisting.

Recommendations

Verify connector cleanliness before installation and use appropriate fiber cleaning tools to remove dust and contaminants. For optimal performance, test insertion loss and end-to-end throughput after installation. Choose LSZH jacketing for installations in confined or populated spaces where reduced smoke and halogen emission are required.
