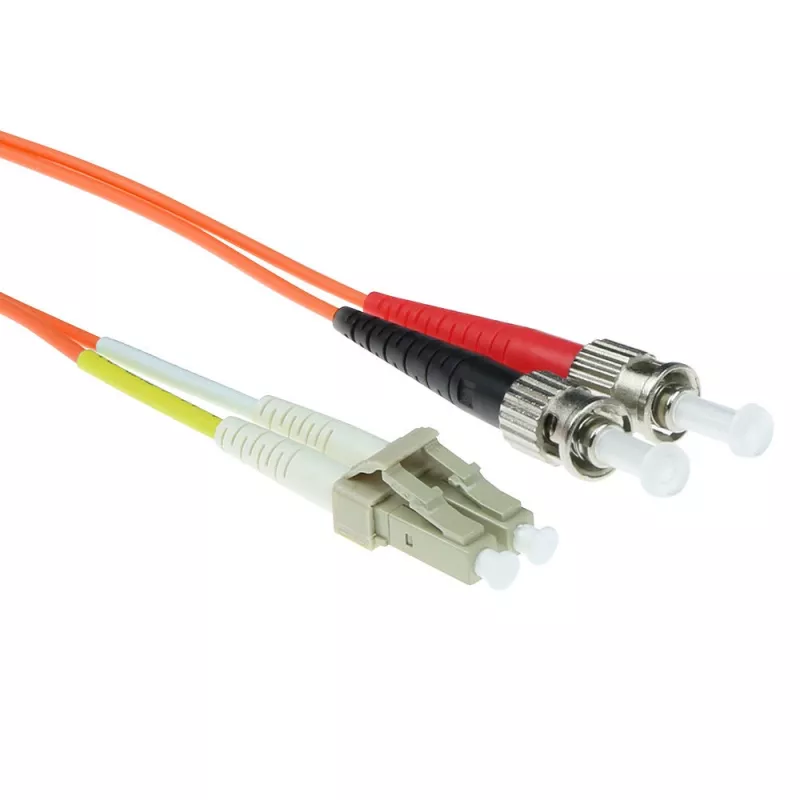

ACT 15 meter LSZH Multimode 50/125 OM2 fiber patch cable duplex with LC and ST connectors

The ACT 15 meter LSZH Multimode 50/125 OM2 fiber patch cable duplex combines multimode 50/125 OM2 fiber with duplex wiring and two connector types (LC and ST) to support high-speed data transmission over moderate distances. The cable jacket is made from LSZH (Low Smoke Zero Halogen) material, which reduces toxic fumes and dense smoke in case of fire. Designed for structured cabling and network links, this 15 m patch cable balances performance and safety for indoor installations.

Advantages

The cable offers duplex multimode transmission using OM2 50/125 fiber, providing low attenuation and suitable bandwidth for local area network applications. The inclusion of LC and ST connectors allows compatibility with equipment that uses small form-factor and bayonet-style terminations. The LSZH jacket lowers risks associated with smoke and halogen gases in enclosed spaces, and the 15 meter length supports flexible placement of network devices while maintaining signal integrity.

Suitable for

• Data center patch panels and rack-to-rack connections
• Campus and building backbone links within moderate distances
• Telecommunications rooms and structured cabling installations
• Environments requiring low-smoke, halogen-free cabling

Key specifications

• Fiber type: Multimode 50/125 µm (OM2)
• Configuration: Duplex
• Length: 15 meters
• Connector types: LC to ST
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Typical applications: Short to medium range data transmission, LAN/backbone

How to use

Inspect connector endfaces for cleanliness before installation and, if necessary, clean using appropriate fiber-optic cleaning tools. Route the duplex cable along cable management paths, avoiding tight bends and mechanical strain; maintain the minimum bend radius recommended for multimode fiber. Plug the LC connector into the LC adapter or port and the ST connector into the ST adapter or device port, ensuring secure seating and correct orientation. After connection, verify link integrity and optical loss with appropriate testing equipment.

Recommendations

Store the cable coiled without sharp kinks and protect connector endfaces with dust caps until ready to connect. For reliable performance, avoid exceeding the bend radius, minimize tensile load during installation, and use proper cleaning and testing procedures when terminating or integrating the cable into active networks.
