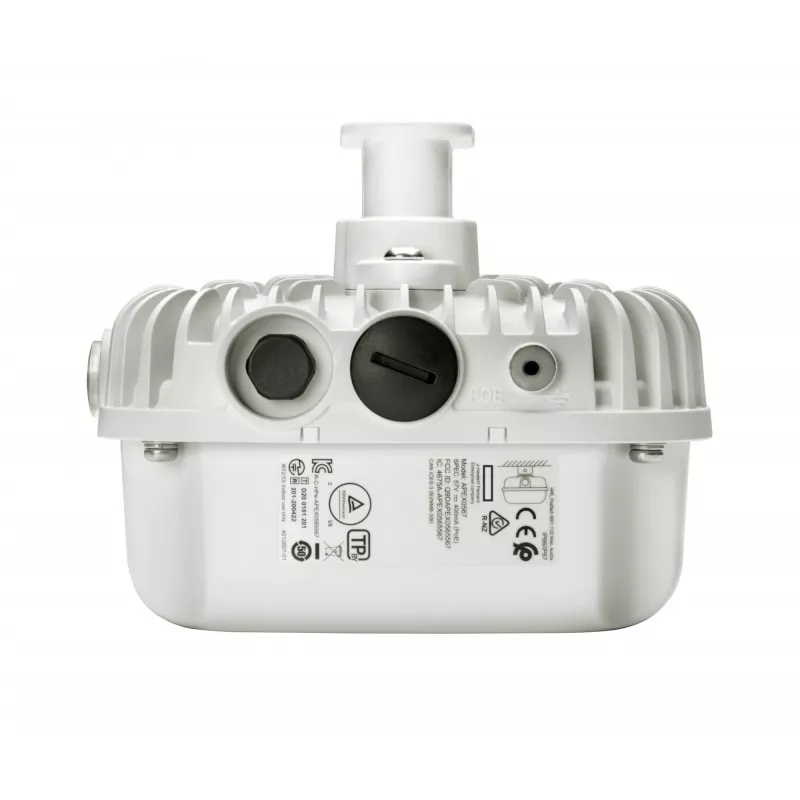

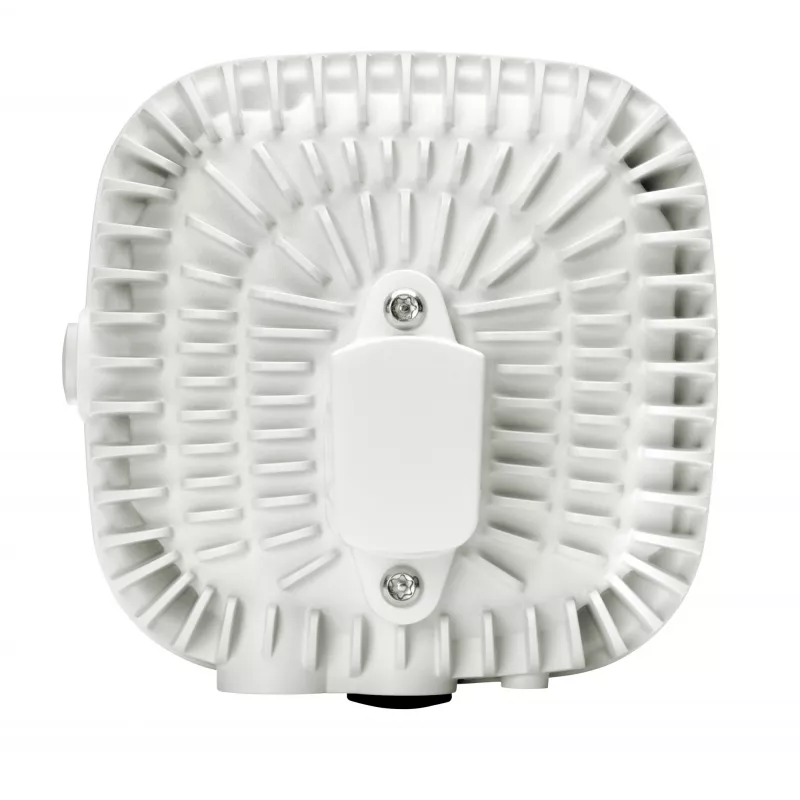

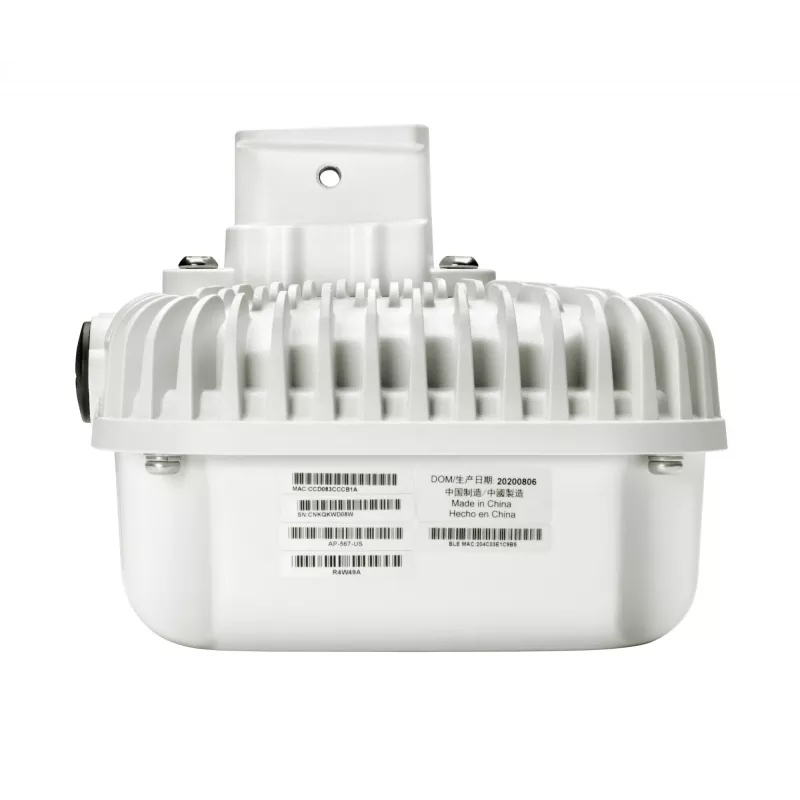

Access Point HPE Aruba AP-565 2.4 GHz 5 GHz Wi-Fi 5

The HPE Aruba AP-565 is a dual-band outdoor access point that supports 2.4 GHz and 5 GHz Wi‑Fi 5 connections with a maximum data rate of 1774 Mbit/s. Designed for demanding outdoor and high-density environments, it offers reliable connectivity, WPA2/WPA3 security, and Power over Ethernet (PoE) support for simplified installation. The unit is built to operate in challenging conditions and fits deployments requiring robust wireless performance.

Advantages

The AP-565 provides high-performance dual-band Wi‑Fi 5 throughput up to 1774 Mbit/s and supports modern security standards including WPA3. Its PoE capability enables flexible mounting without the need for local AC power. The device is compact and lightweight yet designed for reliable operation in environments where stable outdoor connectivity is required.

Suitable for

• Outdoor spaces and perimeter coverage
• High-density areas such as stadiums or campuses
• Retail and hospitality outdoor seating areas
• Temporary event and deployment zones

Key specifications

• Wireless bands: 2.4 GHz and 5 GHz (dual-band)
• Maximum data transfer rate: 1774 Mbit/s
• Supported standards: IEEE 802.11a/b/g/n/ac/ax
• Security: WPA2 and WPA3
• Ethernet: 1 × RJ-45 port
• Power: Power over Ethernet (PoE); max power consumption 15.6 W
• Weight: 1.03 kg
• Colour: White

How to use

Mount the AP-565 in the chosen outdoor location following site planning for coverage and line-of-sight. Connect a PoE-capable switch or injector to the RJ-45 Ethernet port to provide both data and power. Configure SSIDs, security (WPA2/WPA3), and radio settings using your Aruba management platform or controller. Verify coverage and client connectivity after deployment and adjust antenna orientation or placement if required.

Recommendations

For stable outdoor performance, install the access point away from large reflective surfaces and sources of electrical interference. Use PoE infrastructure that meets the device power requirements and follow local grounding and surge protection practices for outdoor equipment.
