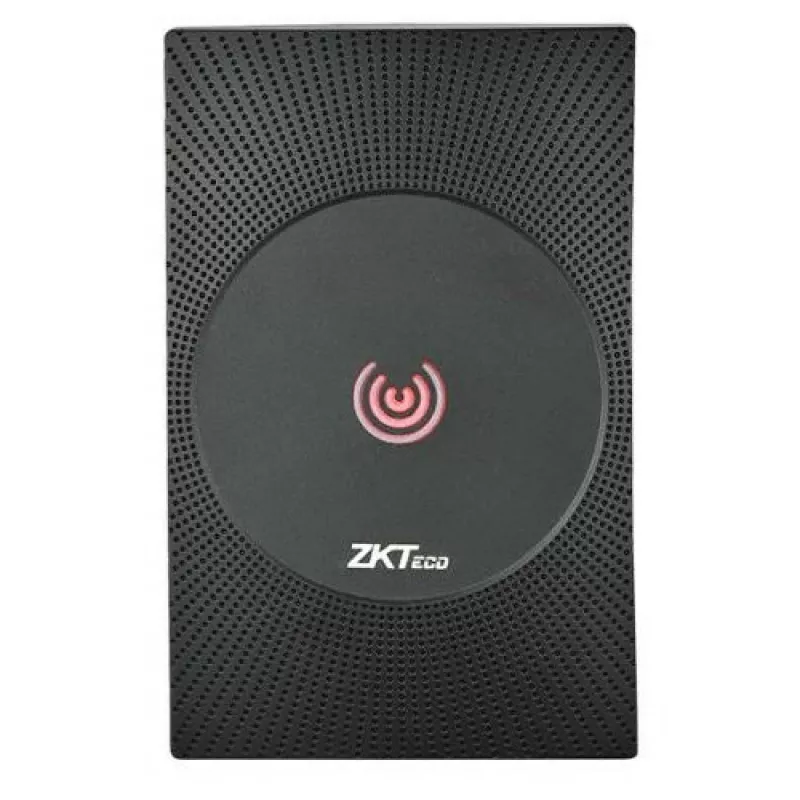

ZKTeco ACC-ER-KR610E Outdoor Proximity Card Reader - Wiegand 26/34-bit, IP65, Black

The ZKTeco ACC-ER-KR610E is a rugged outdoor proximity reader created for secure and controlled access. It reads 125 kHz EM cards at distances up to 10 cm, while the auto-sensing Wiegand output supports both 26-bit and 34-bit formats. Encased in an IP65-rated ABS+PC housing, it withstands rain, dust, and temperature swings, making it a solid choice for perimeter entrances, parking areas, and industrial gates.

Advantages

Featuring a tri-colour LED and built-in buzzer, the device offers clear visual and audible feedback for every card read. The reader is simple to install, operates from a wide 6-14 V DC supply, and consumes under 70 mA, so it places minimal load on the access control system. Its Wiegand transmission distance of up to 100 metres allows flexible placement in large installations.

Suitable for

• External doors and building entrances
• Vehicle gates and car park barriers
• Factory and warehouse access points
• Lift lobbies and common areas in residential complexes

Key specifications

• Card type: 125 kHz EM proximity cards
• Reading distance: up to 10 cm
• Output format: Wiegand 26-bit / 34-bit
• Transmission distance: up to 100 m
• IP rating: IP65
• Operating temperature: -10 °C to 65 °C
• Operating humidity: 10 % to 90 % RH
• Power supply: DC 6-14 V
• Current consumption: < 70 mA
• LED indicator: red, green, blue
• Buzzer: yes
• Housing material: ABS + PC
• Colour: black

Recommendations

Before installation verify that your access control panel accepts Wiegand 26-bit or 34-bit. For long cable runs use a shielded twisted pair, and mount the unit on a flat surface with the sealing gasket properly fitted to preserve the IP65 rating.
