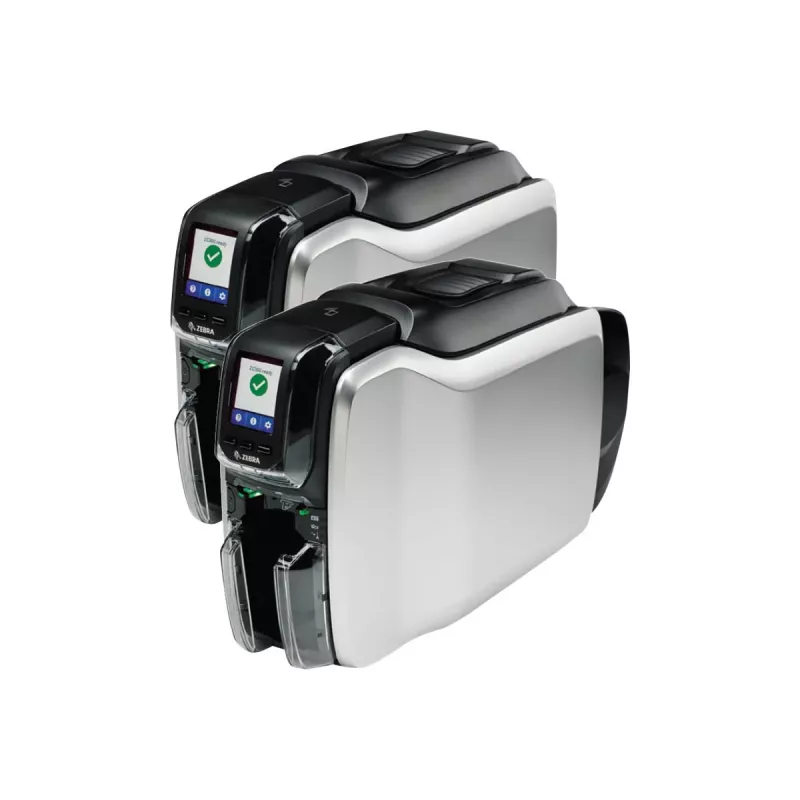

Zebra ZC300 plastic card printer Dye-sublimation/Thermal transfer Colour 300 x 300 DPI

No matter what type of card you need to print — from identity and access to membership, event and credit/debit cards — the ZC300 Series card printers will help you do it better, faster, and easier. Elegant engineering of the ZC300 and ZC350 card printers eliminate virtually all pain points associated with card printing. The result is push-button simplicity no matter what you are printing — single or dual-sided magnetic stripe or contactless cards, in color or black and white. And with a ground-breaking fits-everywhere design, you can get secure card printing wherever you need it.

When you need even more, the ZC350 delivers the fastest print speed and advanced printing options that allow you to create virtually any card design you can dream up. With support for just about every encoding technology, you can create just about any type of card — credit, debit, identity, access, loyalty, public transportation passes and more. The ZC300 Series — the card printers that deliver it all.

GROUNDBREAKING SIMPLICITY

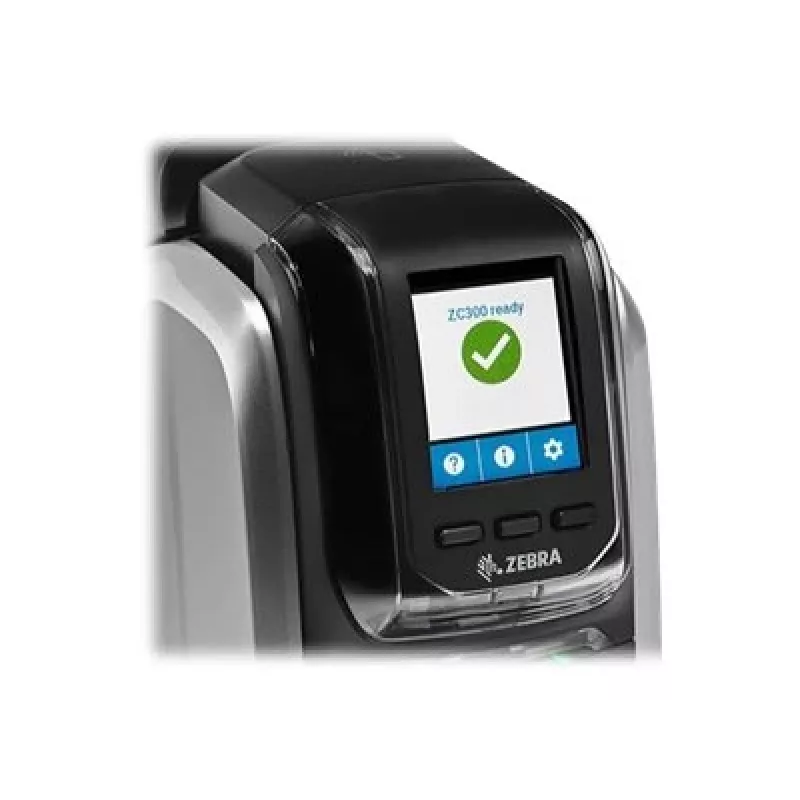

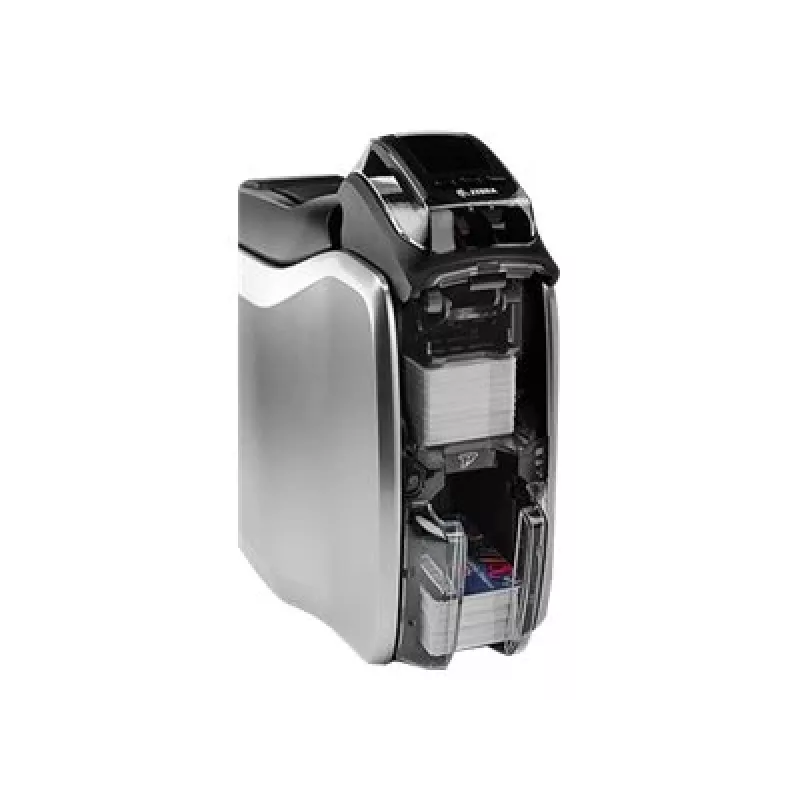

With plug-and-play deployment, instant card feeder adjustment, intuitive icons and a graphical user interface, the ZC300/ZC350 Series is easy to integrate, use, and manage. Ribbon changing is virtually fool-proof, and a revolutionary hopper design makes loading and unloading cards easier than ever.

BOUNDLESS CARD DESIGN OPTIONS
The ZC300/ZC350 Series is loaded with advanced card production features. Print what you want, when you want, from just about anywhere – single or dual-sided edge-to-edge monochrome and color cards, with new ribbons that offer specialty colors and special effects.

FITS EVERYWHERE DESIGN
Even though the ZC300/ZC350 Series is built for business, it has the consumer good looks required to fit in customer facing areas – from the corporate office to the university to the retail store. And the printer cover lock provides security by preventing theft of card stock and rejected cards.

Zebra ZC300. Print technology: Dye-sublimation/Thermal transfer, Maximum resolution: 300 x 300 DPI, Card types: Magnetic stripe (ISO 7811), PVC, PVC Composite. Product colour: Black, Silver, Total input capacity: 100 sheets, Display: LCD. Ethernet interface type: Fast Ethernet, Security algorithms: AES. AC input frequency: 47 - 60 Hz, AC input voltage: 90 - 264 V. Windows operating systems supported: Windows 10, Windows 7, Windows 8

How to use

Install the ZC300 using the provided drivers and connect it to the network via Fast Ethernet. Load up to 100 PVC cards into the input hopper and install the correct ribbon for single- or dual-sided printing. Use the LCD and on-screen icons to select print jobs, encoding options and ribbon type. For magnetic stripe encoding, enable the encoder settings in the printer driver or management software and pass cards through the encoder during printing.

Recommendations

For reliable results, use genuine Zebra ribbons and PVC cards matched to the ZC300 specifications, keep the printer and cards free of dust, and perform routine cleaning with manufacturer-recommended cleaning kits. Place the printer on a stable, level surface and ensure proper network configuration for secure printing.
