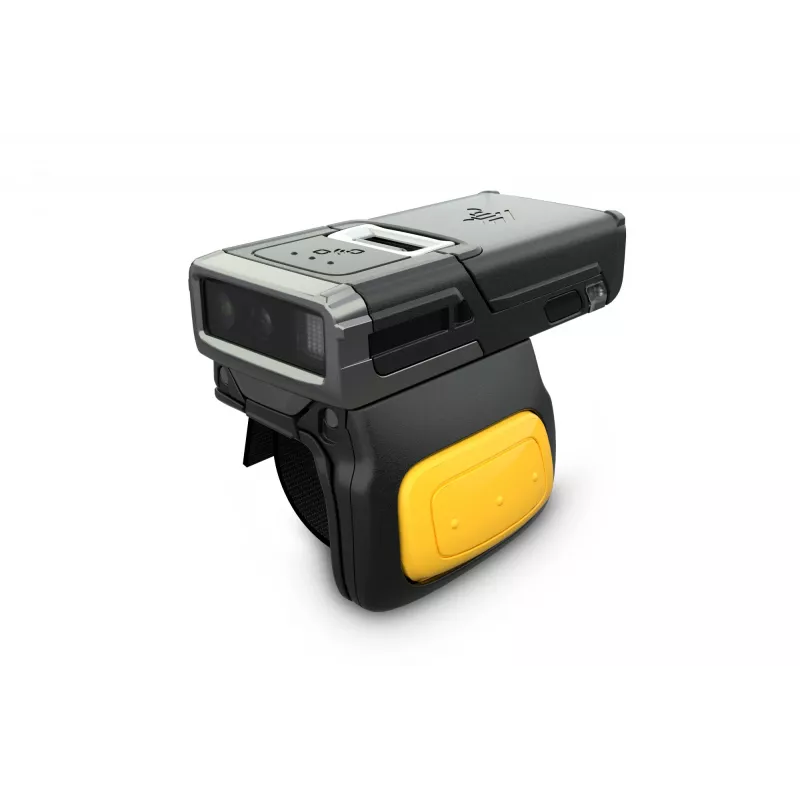

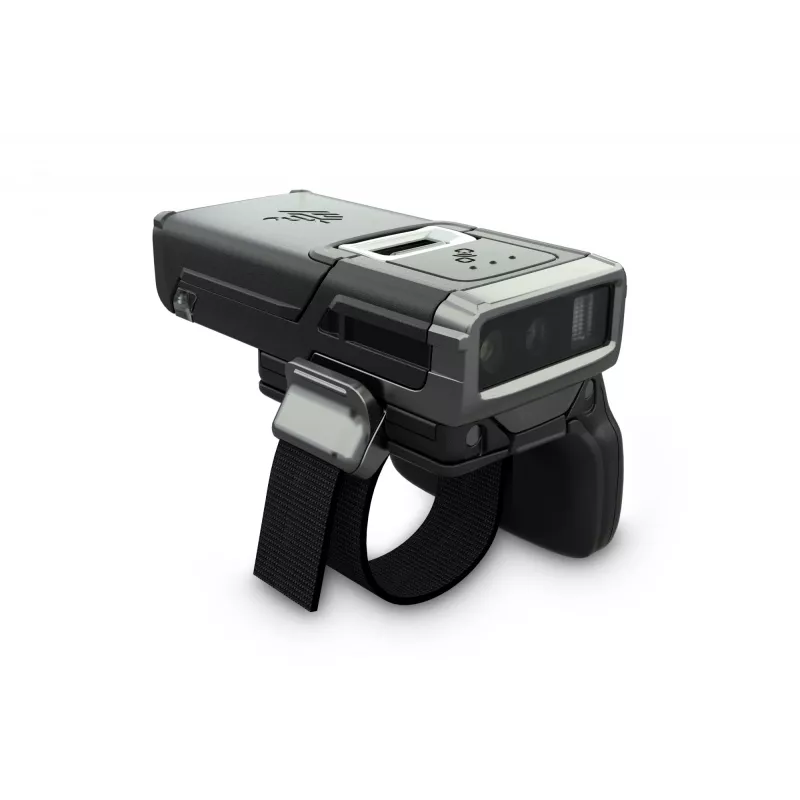

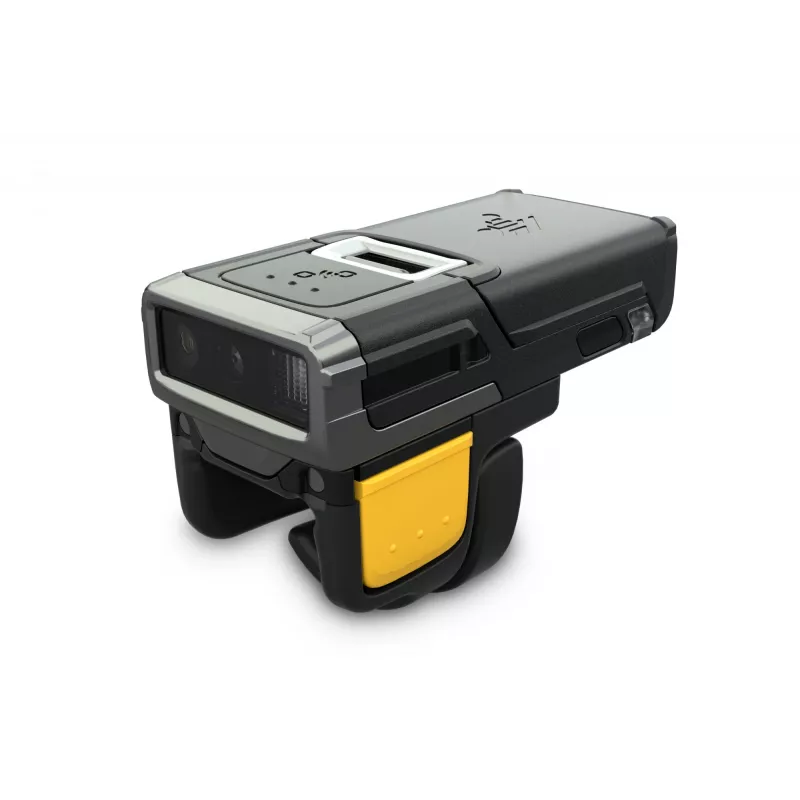

Zebra RS5100 Wearable bar code reader 1D/2D Laser Black

The Zebra RS5100 wearable bar code reader is a lightweight, enterprise-grade scanner for 1D and 2D barcodes. Designed for continuous wear, it combines a compact form factor, Bluetooth wireless connectivity and a built-in lithium-ion battery to enable hands-free scanning in customer-facing and warehouse environments. The device supports multiple wearing styles and rugged construction to reduce total cost of ownership while providing dependable barcode capture.

Advantages

The RS5100 offers five interchangeable wearing styles that adapt to different hand sizes and workflows, including an enterprise hand mount with adjustable position and aiming angle, back-of-hand and ring-style options, and accessories such as a retractable lanyard. Weighing approximately 70 g (about two ounces) and occupying a very small volume, the scanner minimizes hand fatigue. Bluetooth wireless connectivity removes cable constraints and improves ergonomics. A robust housing and a trigger rated for millions of presses deliver a long service life, while two scan engine options enable reliable capture of virtually any barcode in varied conditions.

Suitable for

• Retail checkout and customer-facing scanning
• Warehouse picking and packing
• Inventory management and cycle counting
• Shipping and receiving operations
• Manufacturing floor processes requiring hands-free scanning

Key specifications

• Scanner type: 1D/2D
• Sensor type: Laser
• Connectivity: Bluetooth (wireless)
• Battery: Built-in lithium-ion
• Weight: 0.07 kg
• Supported 1D codes: Code 128, UPC-E, UPC-A, MSI, GS1 DataBar, Code 93, Code 39, Code 11
• Supported 2D codes: Composite Codes, MicroPDF417, PDF417, QR Code, TLC-39, Micro QR Code, MaxiCode, Han Xin, Data Matrix, Aztec Code
• Colour: Black
• Manufacturer model: RS51C0-TBSNWR

How to use

Charge the built-in lithium-ion battery before first use. Attach the RS5100 in the preferred wearing style (hand mount, ring, back-of-hand, belt or lanyard) and pair it with a host device via Bluetooth according to the host device instructions. Position the scanner so the aiming window aligns with the barcode and press the trigger or use configured hands-free activation to capture the code. If scanning poor-quality or angled barcodes, adjust the aiming angle or choose the appropriate scan engine option for the environment.

Recommendations

For reliable long-term operation, keep the RS5100 clean and free of debris, store and charge the device within the recommended temperature range, replace worn mounts or straps as needed, and select the scan engine option that best matches your barcode density and label condition.
