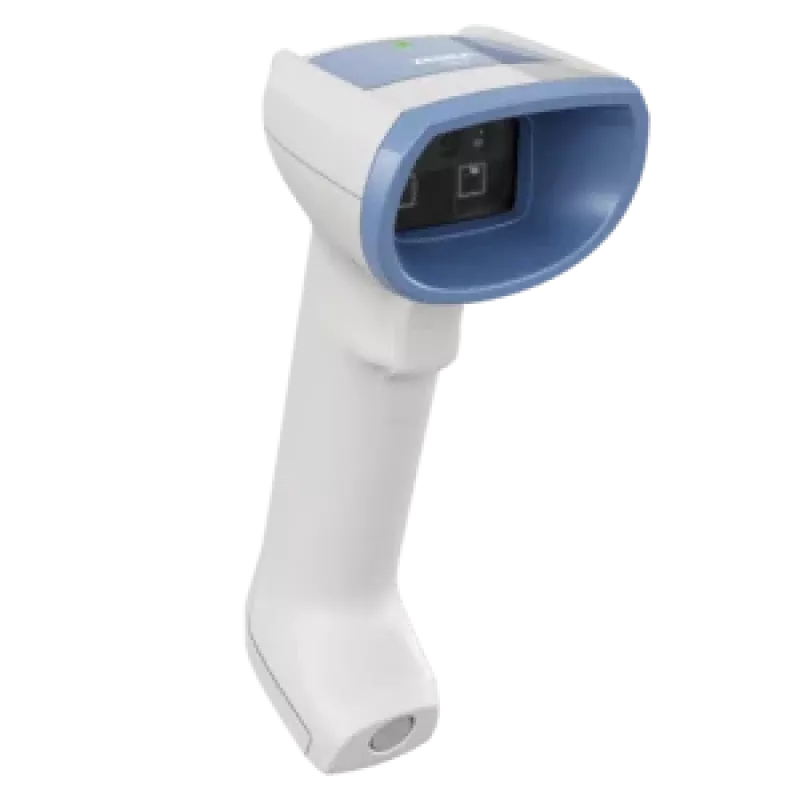

Zebra DS82 Series - USB Kit - Barcode-Scanner (DS8288-HCBU210MSAW)

With a motion tolerance of 240 inches per second, the Zebra DS8288-HCBU210MSAW captures even the fastest-moving barcodes without a hitch. Part of the DS82 Series, this 2D imager scanner delivers enterprise-grade performance in a rugged, compact design that fits effortlessly into retail, healthcare, hospitality, and light manufacturing workflows. The included USB cable and presentation stand make it ready to deploy right out of the box.

Overview

The DS8288-HCBU210MSAW is a wired handheld barcode scanner engineered for high-throughput environments. It reads all standard 1D, 2D, and stacked barcodes, including QR Code, Data Matrix, PDF417, and Aztec, ensuring compatibility with virtually any application. The scanner connects via USB and supports multiple host interfaces—HID Keyboard, IBM SurePOS, Serial Emulation, and NDM—so it integrates seamlessly with existing POS systems and terminals.

What stands out

• Exceptional motion tolerance of 240 in./610 cm per second for fast scanning
• Wide field of view (48° horizontal, 30.6° vertical) for easy targeting
• Rugged design withstands 6 ft./1.8 m drops to concrete and IP42 sealing against dust and moisture
• Bright 617 nm amber aiming dot and 660 nm red illumination for precise scanning in any lighting
• Includes USB cable and presentation stand for hands-free scanning
• Powered directly by the host—no external power supply needed

Technical details

• Scanner type: 2D imager, handheld
• Connectivity: Wired USB (HID Keyboard, IBM SurePOS, Serial Emulation, NDM)
• Decoding capability: 1D (Code 39, Code 128, UPC/EAN, etc.), 2D (QR Code, Data Matrix, PDF417, Aztec, etc.)
• Scan range: Standard Range (SR)
• Light source: Aiming pattern – circular 617 nm amber LED; illumination – 660 nm red LED
• Field of view: Horizontal 48°, vertical 30.6°
• Minimum print contrast: 15%
• Motion tolerance: 240 in./610 cm per second
• Drop specification: 6 ft./1.8 m to concrete
• Sealing: IP42
• Operating temperature: 0°C to 50°C (32°F to 122°F)
• Indicators: Beeper, good decode LED, rear view LEDs
• Power source: Host power via USB
• Included accessories: USB cable, presentation stand

Our verdict

The Zebra DS8288-HCBU210MSAW is a workhorse scanner that combines speed, durability, and versatility. Its high motion tolerance and robust construction make it ideal for busy retail counters, healthcare check-ins, and warehouse picking stations. With plug-and-play USB connectivity and a presentation stand included, it's a smart investment for any business seeking reliable barcode capture.
