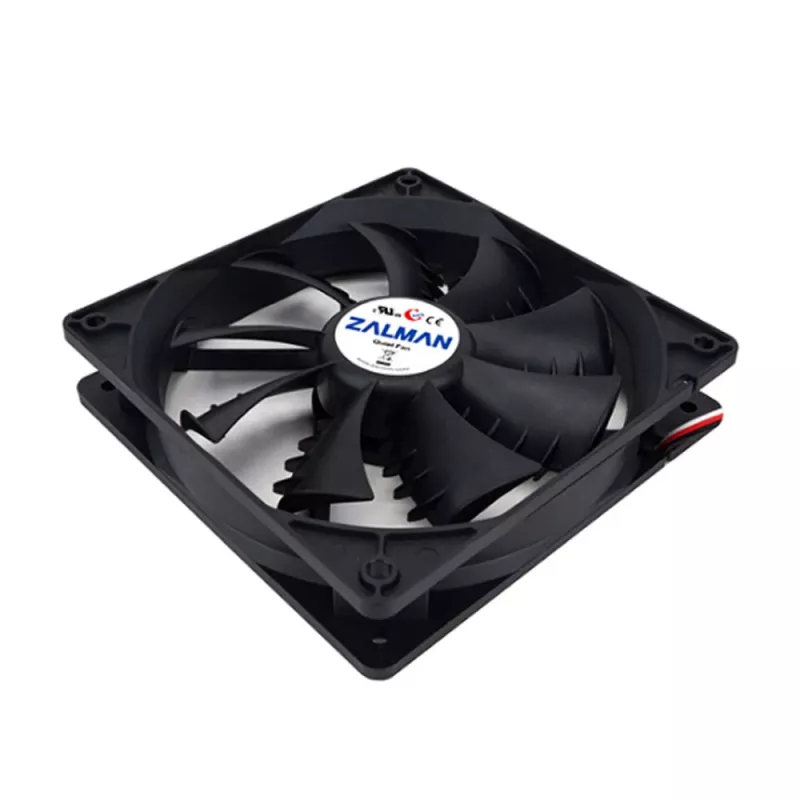

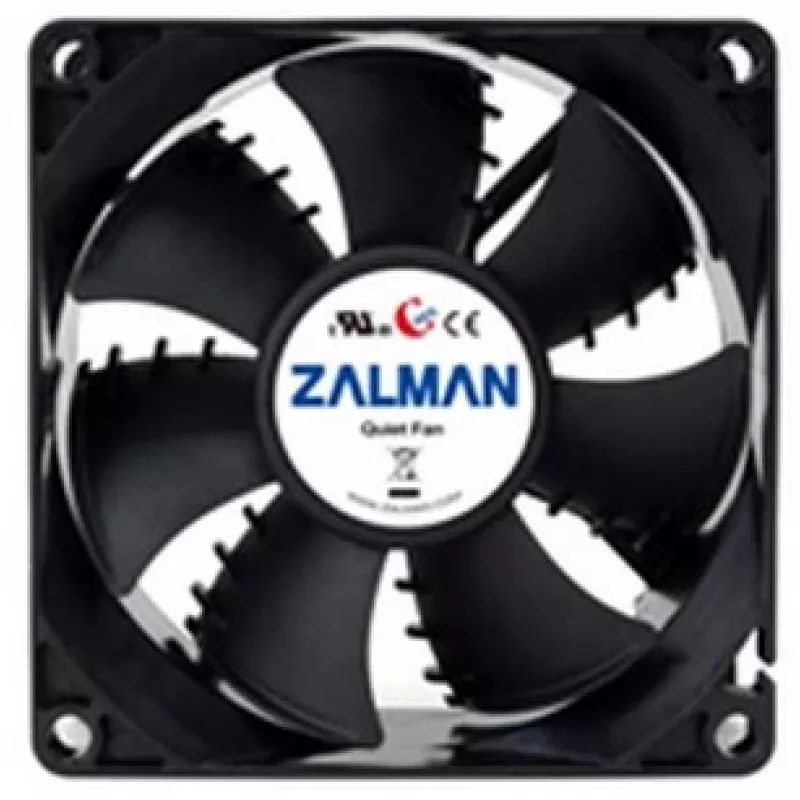

Zalman ZM-F2 PLUS(SF) computer cooling system Computer case Fan 9.2 cm Black

The Zalman ZM-F2 PLUS(SF) is a 92 mm black computer case fan designed to improve system cooling with a maximum speed of 1500 RPM and a 12 V supply. Its compact dimensions (92 × 25 × 92 mm) and lightweight construction make it suitable for installation in a variety of PC cases where quiet, efficient airflow is required.

Advantages

Equipped with a Long Life Bearing (EBR) to reduce noise and limit dust ingress for an extended service life. The Shark Fin blade design optimizes airflow and reduces turbulence, lowering noise and vibration while increasing air movement. The fan operates at relatively low RPM to minimize audible noise and vibration, and included silicone pins absorb vibrations between the fan and the case for quieter operation.

Suitable for

• General PC case cooling
• Silent or low-noise system builds
• Upgrading airflow in compact or small-form-factor cases
• Replacing a 92 mm case fan

Key specifications

• Model: Zalman ZM-F2 PLUS(SF)
• Fan diameter: 92 mm
• Dimensions: 92 × 25 × 92 mm
• Max speed: 1500 RPM
• Voltage: 12 V
• Colour: Black
• Weight: 0.077 kg

How to use

Install the Zalman ZM-F2 PLUS(SF) into a compatible 92 mm fan slot in your PC case, aligning the airflow direction indicated on the fan frame with the desired intake or exhaust orientation. Secure the fan using the supplied silicone pins or appropriate screws, connect the fan cable to a 3-pin or compatible motherboard header or fan controller, and verify operation at different system loads to ensure stable voltage and cooling performance.

Recommendations

For quieter operation, mount the fan using the provided silicone pins to reduce vibration transfer. Periodically clean dust from the fan blades and bearing area to maintain airflow and prolong the Long Life Bearing lifespan.
