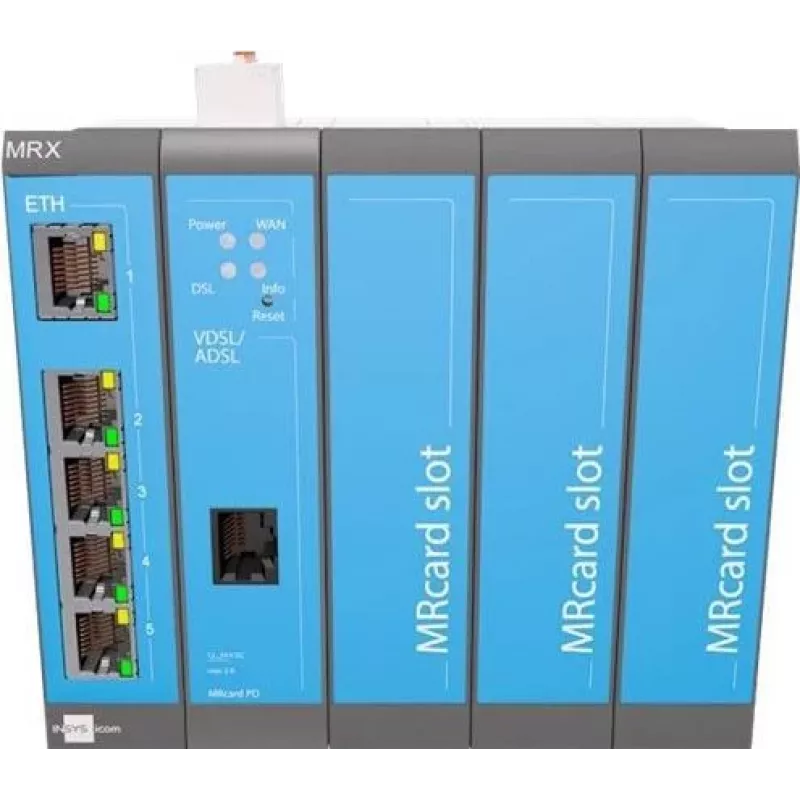

xDSL router INSYS icom icom MRX5 DSL-B with Fast Ethernet 10/100 Mb, BGP/OSPF/RIP routing, IPSec/SNMP/SSH security

INSYS icom MRX5 DSL-B is an industrial xDSL router with Fast Ethernet LAN (10/100 Mb) designed to provide secure WAN connectivity for remote sites, branch networks and industrial automation. The MRX5 DSL-B supports dynamic routing with BGP, OSPF and RIP/RIP-2, and includes security functions such as IPsec VPN, SSH remote access, SNMP management and RADIUS authentication. The device is delivered in a modular concept that allows expansion via plug-in MRcards and offers hardware redundancy options for demanding network topologies.

Advantages

The MRX5 DSL-B combines high routing performance and VPN throughput with flexible modularity: additional interfaces and communication technologies can be added via plug-in cards. It provides multiple connectivity options (xDSL and Ethernet WAN) and supports connection redundancy in hardware to increase availability. Integrated management and standard network protocols simplify central administration and monitoring while the built-in security features help protect data in transit and manage authenticated access.

Suitable for

Key specifications

How to use

Install the MRX5 DSL-B in a suitable rack or enclosure and connect the xDSL line and Fast Ethernet LAN ports according to your network plan. Access the web-based management interface or use SSH for initial configuration. Configure routing protocols (BGP, OSPF or RIP) as required for your topology, set up IPsec VPN tunnels for secure site-to-site connectivity and define SNMP parameters for monitoring. If additional interfaces are required, insert compatible MRcards and configure the new interfaces in the management console.

Recommendations

For reliable operation, keep firmware up to date and use SNMP monitoring to detect link or tunnel failures. When deploying in critical applications, configure redundant tunnels and hardware connection failover, and restrict management access via SSH and RADIUS authentication.
