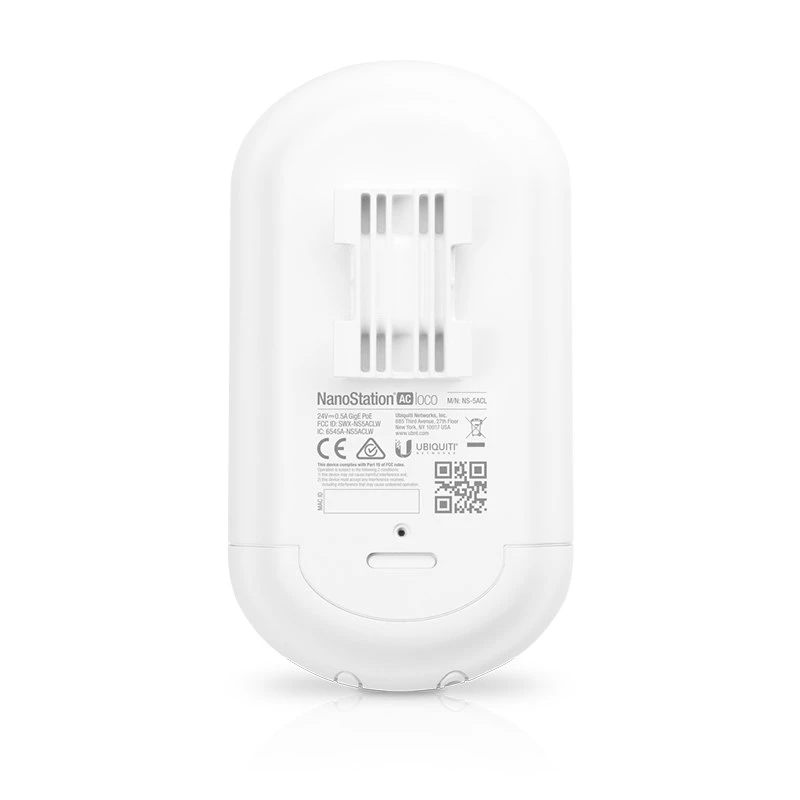

Wireless Access Point Ubiquiti NanoStation 5AC Loco 5 GHz Wi-Fi 802.11ac

The Ubiquiti NanoStation 5AC Loco is a compact outdoor wireless access point operating on the 5 GHz band. It delivers up to 450 Mbit/s, supports Power over Ethernet (PoE) for simplified installation, consumes up to 7 W, and provides WPA2 security. The device follows the classic NanoStation form factor with a refined industrial design and improved surge protection. It is suitable as a point-to-point (PtP) bridge or as a point-to-multipoint (PtMP) station (CPE) and includes a dedicated management Wi‑Fi interface for easy setup with the UNMS mobile app.

Advantages

The NanoStation 5AC Loco integrates an updated airMAX ac chipset and runs airOS®8, offering support for the airMAX® ac protocol and real‑time RF analytics. Its slim industrial housing continues the NanoStation lineage while delivering enhanced ESD and surge protection. Built‑in management Wi‑Fi simplifies commissioning and configuration using the UNMS app, and PoE operation reduces cabling requirements.

Suitable for

• Outdoor point‑to‑point (PtP) links
• Outdoor point‑to‑multipoint (PtMP) CPE
• Small to medium wireless ISP connections
• Locations requiring compact, weather‑resistant client stations

Key specifications

• Frequency band: 5 GHz
• Maximum data transfer rate: 450 Mbit/s
• Ethernet LAN (RJ‑45) ports: 1
• Ethernet speed: 10/100/1000 Mbit/s
• Power: PoE support, maximum consumption 7 W
• Security: WPA2
• Colour: White
• Brand/Model: UBIQUITI NanoStation 5AC Loco (MPN: Loco5AC-5)

How to use

Mount the NanoStation 5AC Loco outdoors with a clear line of sight to the remote device for optimal throughput. Connect the unit to a PoE injector or PoE switch using the single RJ‑45 port to provide power and network connectivity. Use the dedicated management Wi‑Fi or connect via Ethernet to access airOS®8. Configure the device as a PtP bridge or as a PtMP station, set encryption to WPA2, and adjust radio and channel settings according to site RF conditions. Use the UNMS mobile app for guided setup and monitoring.

Recommendations

For reliable long‑range links, ensure unobstructed line of sight and perform a site survey to select the least congested 5 GHz channel. Protect connectors and the mounting area from prolonged water ingress, and keep firmware up to date via airOS®8 or UNMS to maintain security and performance.
