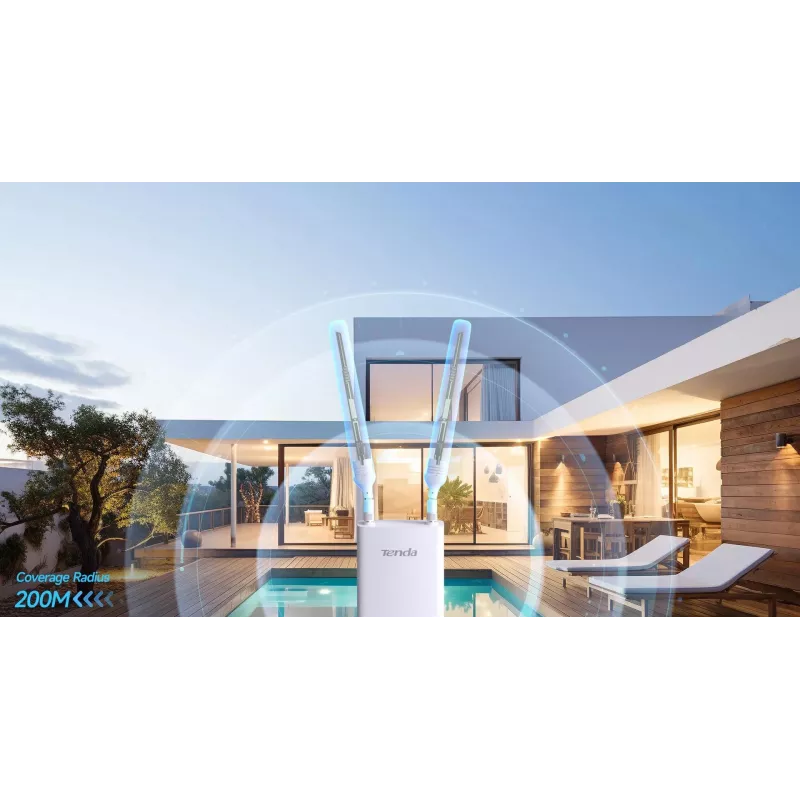

Tenda OAP1200 Outdoor Wi-Fi Access Point AC1200 Dual-Band Gigabit IP65 VLAN 802.11k/v/r Active & Passive PoE

The Tenda OAP1200 is an outdoor-rated wireless access point engineered to deliver consistent, high-speed connectivity in environments where standard indoor APs fall short. Unlike typical consumer routers, this unit supports both 802.3af/at active PoE and 24V passive PoE, giving installers the freedom to power it from a switch or a dedicated injector without extra cabling. The IP65-rated enclosure shrugs off rain, dust, and extreme temperatures, while the integrated 4dBi omni-directional antennas provide broad coverage for open spaces.

Highlights

• AC1200 dual-band Wi-Fi: 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz
• Gigabit Ethernet port with 802.3af/at and passive PoE flexibility
• IP65 weatherproof housing for outdoor deployment
• 802.11k/v/r fast roaming for seamless client transitions
• VLAN (802.1Q) support for network segmentation
• Beamforming and MU-MIMO improve capacity and range

In daily use

Mount the OAP1200 on a pole or wall using the included hardware, connect an Ethernet cable from a PoE switch or injector, and it powers up automatically. The web-based management interface makes configuration straightforward, while optional AC controller support allows centralised control for larger installations. With an operating range from -30°C to 60°C, it can handle everything from freezing winters to blazing summer heat.

Full specifications

• Wi-Fi standard: IEEE 802.11a/b/g/n/ac
• Data rates: 10/100/1000 Mbps Ethernet
• Frequency band: 2.4 GHz & 5 GHz dual-band
• Antennas: 2 internal omni-directional with 4dBi gain
• Ports: 1 Gigabit RJ45
• Power: IEEE 802.3af/at PoE and 24V/0.5A passive PoE
• Power consumption: <11W
• Security: WPA-PSK, WPA2-PSK, WPA/WPA2-PSK, WPA, WPA2
• Management: Web UI and AC controller
• Roaming: 802.11k/v/r
• VLAN: 802.1Q
• Ingress protection: IP65
• Operating temperature: -30°C to 60°C

Final note

Whether you are extending coverage to a courtyard, warehouse, or remote site, the Tenda OAP1200 delivers a robust blend of performance, durability, and flexible power options that simplify installation and ensure long-term reliability.
