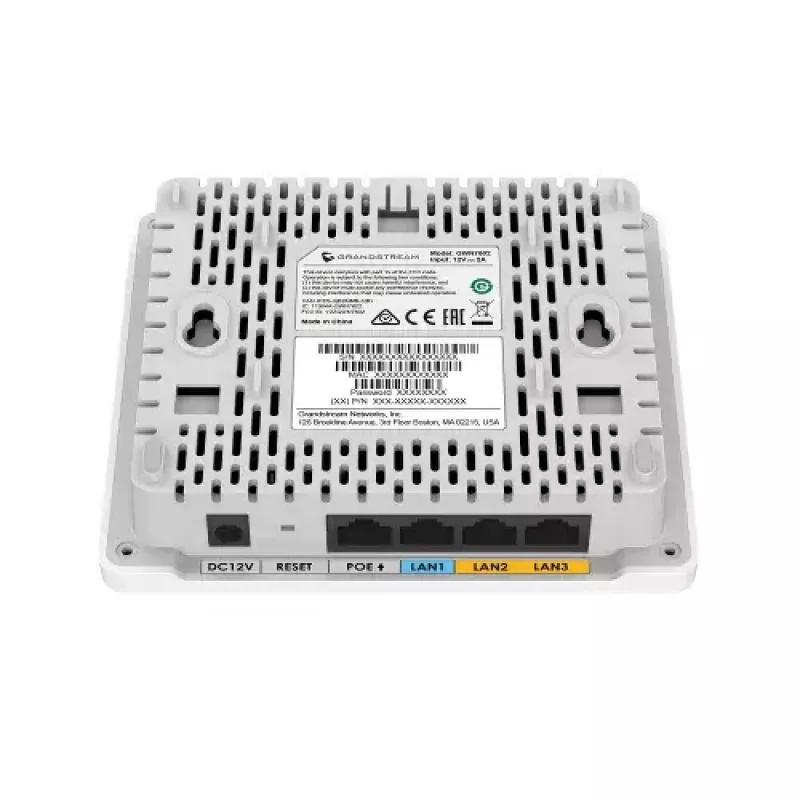

Wireless Access Point Grandstream GWN7603 2.4/5 GHz 802.11ac, 2x2 MIMO, 4x LAN, PoE, 16 SSIDs

The Grandstream GWN7603 is a dual-band wireless access point that delivers Wi‑Fi connectivity on both 2.4 GHz and 5 GHz bands with combined support for speeds up to 867 Mbit/s. Designed for small offices, home networks and public spaces, this compact white access point integrates two external antennas, four Ethernet LAN ports and Power over Ethernet (PoE) support to simplify installation and reduce cabling. The device implements standard wireless security protocols including WEP, WPA, WPA2 and WPA2‑PSK to protect users and network traffic.

Advantages

The GWN7603 provides simultaneous dual‑band operation to balance device load between 2.4 GHz and 5 GHz, improving overall network performance and reducing interference. Built‑in PoE capability allows placement in ceilings or walls without a nearby power outlet, while the four LAN ports expand wired connectivity for local devices. Low maximum power consumption makes the access point energy efficient. The white enclosure and compact form factor suit a variety of installation environments.

Suitable for

• Small and home offices requiring reliable dual‑band Wi‑Fi
• Retail shops, cafes and waiting areas with moderate client density
• Wired device aggregation with additional LAN ports for printers or IP cameras
• Environments where PoE simplifies installation and reduces wiring

Key specifications

• Wireless standards: IEEE 802.11ac (backward compatible with 802.11a/b/g/n)
• Frequency bands: 2.4 GHz and 5 GHz (dual‑band, simultaneous)
• Maximum data transfer rate: up to 867 Mbit/s
• Antennas: 2 external antennas
• Ethernet ports: 4 × RJ‑45 LAN ports
• Power: Power over Ethernet (PoE) support; maximum power consumption 6.5 W
• Color: White

How to use

Mount the access point on a ceiling or wall near the center of the coverage area to achieve even wireless distribution. Connect one of the Ethernet LAN ports to a PoE‑enabled switch or PoE injector to power the device and provide network connectivity; use the remaining LAN ports to attach wired devices as needed. Access the web management interface or compatible controller software to configure SSIDs, security settings (WEP/WPA/WPA2/WPA2‑PSK), radio parameters and VLANs. Monitor connected clients and performance metrics through the management console to fine‑tune channel selection and transmit power for best results.

Recommendations

Place the Grandstream GWN7603 away from large metal objects and microwave ovens to reduce interference. For mixed-device environments, enable both 2.4 GHz and 5 GHz bands and segregate guest traffic with a separate SSID and VLAN. Use PoE for installations where electrical outlets are limited, and schedule periodic firmware updates via the management interface to maintain security and performance.
