Wire connector DeLOCK 89951

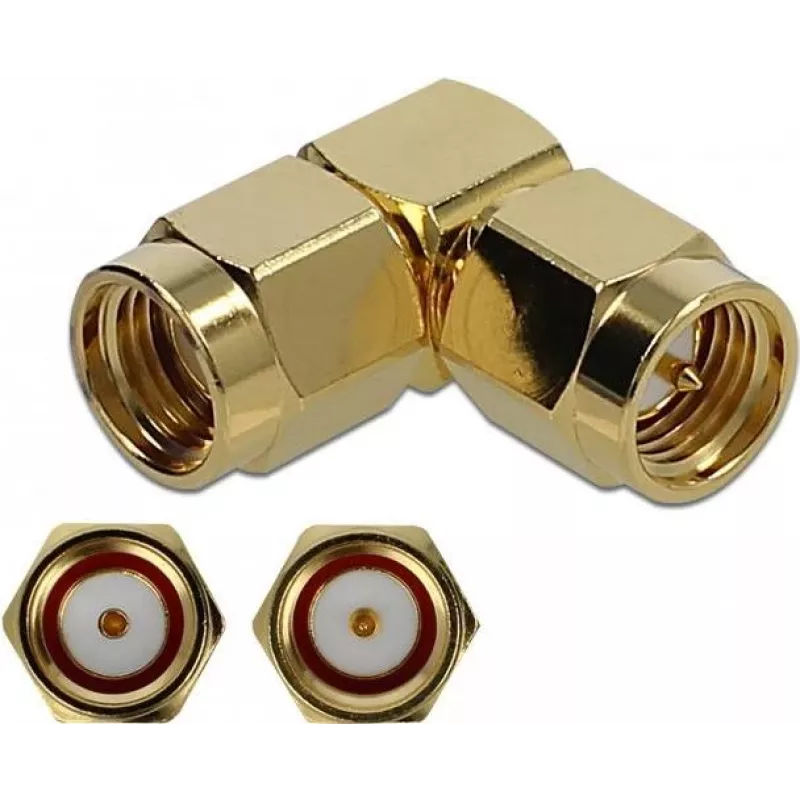

The DeLOCK 89951 wire connector is an adapter for radio frequency components, providing an interface between SMA and RP‑SMA connectors. It features gold plating to improve conductivity and corrosion resistance and is supplied as a single unit in a polybag. The compact dimensions (outer diameter 1.6 cm, depth 16.5 mm) make it suitable for installations with limited space.

Advantages

Gold-plated SMA ⇄ RP-SMA contacts ensure stable signal transmission and reduced contact resistance. The small form factor and standard connector types allow straightforward integration with RF cables and devices. The product is sold individually and packaged in a polybag for simple handling and storage.

Suitable for

Key specifications

How to use

Align the SMA and RP‑SMA connectors and thread the adapter carefully to avoid cross‑threading. Tighten by hand until contact is secure; for final adjustment use a suitable torque wrench if required by your equipment specifications. Inspect connections for proper mating and test RF continuity before putting the system into regular operation.

Recommendations

Ensure connectors are clean and free of debris before mating. Avoid over‑tightening to prevent damage to threads and dielectric components. Store the adapter in its polybag when not in use to protect the gold plating from contamination.
