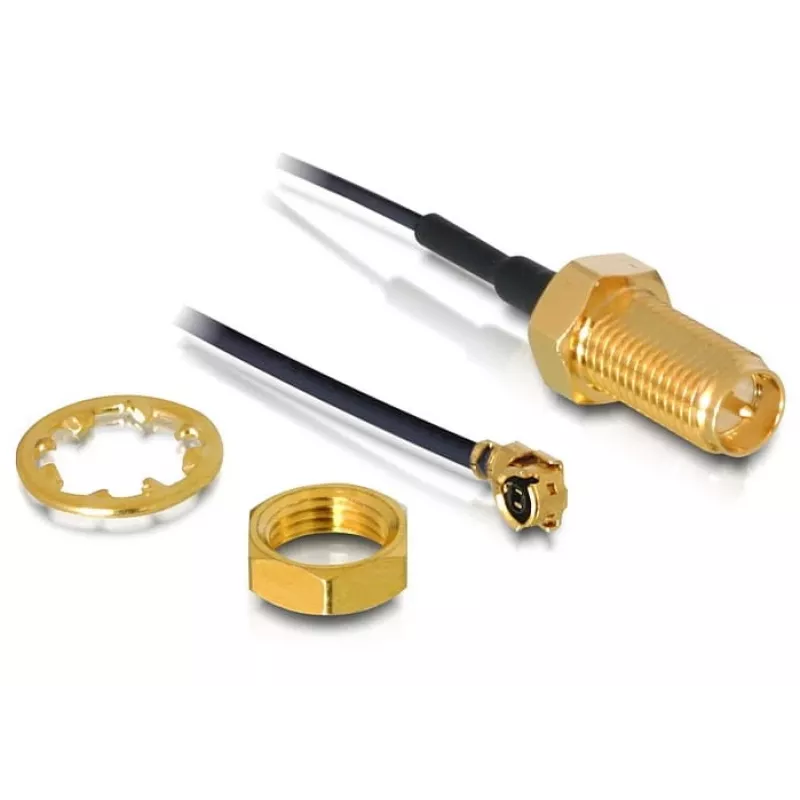

Coaxial Connector R-SMA DeLOCK 88379

The DeLOCK 88379 is a coaxial connector cable that converts an I-PEX connection to an RP-SMA interface, enabling the attachment of RP-SMA antennas to modules with I-PEX sockets such as WLAN or other RF/high-frequency modules. It is a single-piece cable assembly designed for use in RF signal transmission where a compact, reliable connection is required.

Advantages

The cable provides a direct RP-SMA output from I-PEX equipped modules, allowing easy connection of standard RP-SMA antennas. Its compact design supports installation in space-constrained setups while maintaining low signal loss typical of quality coaxial interconnects. The presence of both I-PEX and RP-SMA connectors makes the adapter versatile for various RF tasks.

Suitable for

• Connecting RP-SMA antennas to WLAN modules with I-PEX sockets
• RF testing and prototyping where external antennas are required
• IoT devices and embedded systems that need external RF antenna connection

Key specifications

• Brand: DELOCK
• Model / MPN: 88379
• EAN: 4043619883790
• Connector 1: I-PEX
• Connector 2: RP-SMA
• Type: Coaxial connector / adapter cable

How to use

Connect the I-PEX end to the HF module’s I-PEX socket, ensuring correct alignment and a secure press-fit. Attach an RP-SMA antenna to the RP-SMA connector by screwing it on until hand-tight, avoiding excessive force. Verify the connections before powering the device to ensure proper RF performance.

Recommendations

For reliable RF performance, keep cable bends gentle and avoid sharp kinks. Use the adapter in environments within the device manufacturer’s specified temperature and humidity ranges and ensure connectors are free from debris before connecting.
