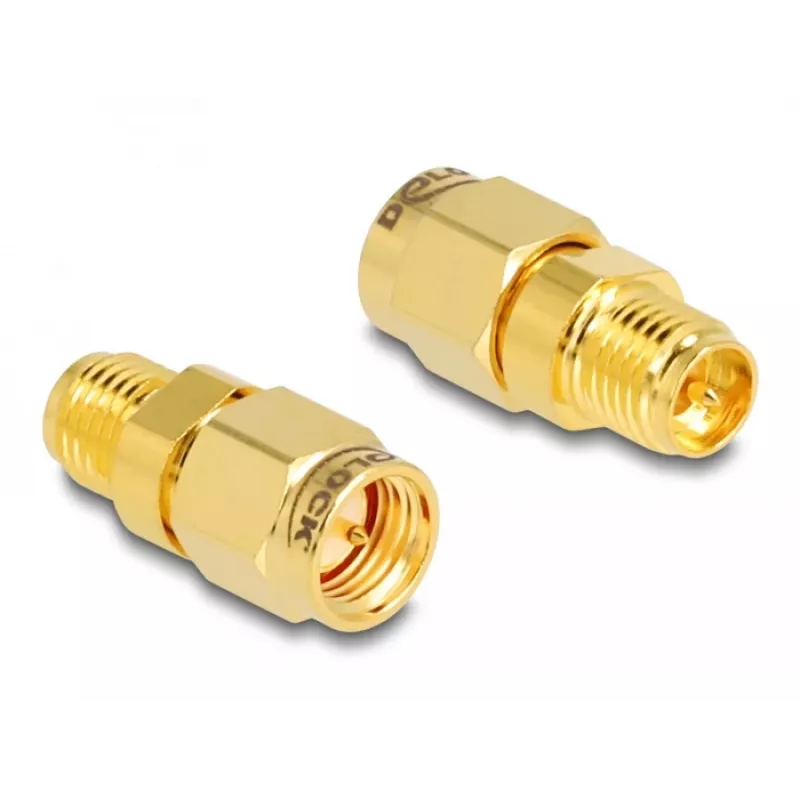

DeLOCK Adapter RP-SMA jack to SMA plug 9mm diameter 18mm width

DeLOCK adapter RP-SMA jack to SMA plug with a 9 mm diameter and 18 mm width for radio frequency connections. The adapter is designed to provide a reliable mechanical and electrical connection between RP-SMA and SMA coaxial components used in RF applications.

Advantages

The adapter ensures compatibility between RP-SMA and SMA connectors without modifying cables or devices. Its compact metal body with specified diameter and width supports stable signal transmission and straightforward installation in confined spaces. Manufactured by DELOCK and matching the product dimensions, it simplifies integration into existing RF setups.

Suitable for

Key specifications

How to use

Screw the RP-SMA jack end of the adapter onto the RP-SMA connector of the antenna or cable, then tighten the SMA plug end into the SMA receptacle on the device. Ensure connectors are aligned and hand-tighten; use appropriate tools only if necessary to avoid over-torquing. Verify the mechanical fit and signal continuity after installation.

Recommendations

Use the adapter in dry, clean environments. Avoid excessive bending or strain on connected cables and do not expose the connector to corrosive substances. For optimal RF performance, keep mating surfaces free of dust and inspect connections periodically.
