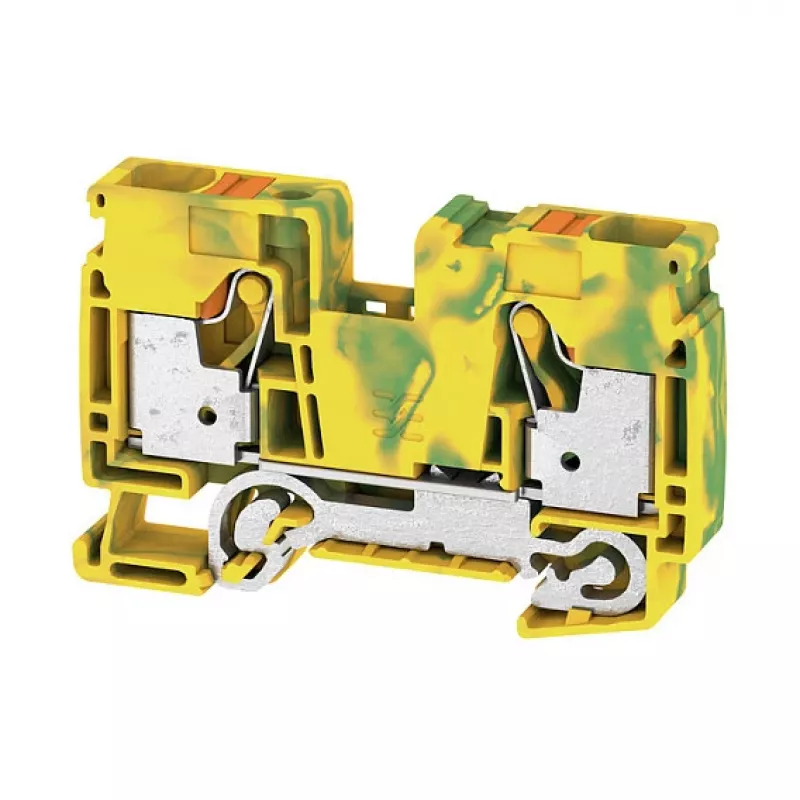

Weidmüller A2C 16 PE Terminal Block, A-Series, PUSH IN, 16 mm², Green/Yellow

Electrical installers and panel builders working on DIN-rail assemblies will appreciate the Weidmüller A2C 16 PE terminal block, a ground/protective-earth block designed for industrial and commercial power distribution. This A-Series component uses a reliable PUSH IN connection system, reducing installation time while maintaining a vibration-resistant and maintenance-free connection.

Key specifications

• Product type: General terminal block for protective earth (PE) applications
• Connection technology: PUSH IN, with 2 connection points
• Rated cross-section: 16 mm²
• Wire size range: 0.5 – 25 mm² solid, 0.5 – 16 mm² flexible with ferrule, AWG 20 – 4
• Mounting: DIN rail TS 35
• Colour: Green/yellow
• Insulating material: Wemid (PA 66) with flammability rating UL 94 V-0
• Operating temperature: -60 °C to +130 °C
• Pollution degree: 3
• Rated impulse withstand voltage: 8 kV

Why choose it

The PUSH IN connection allows a solid conductor to be inserted directly without the need for ferrule or screwdriver, cutting wiring time by up to 50% compared with screw terminals. The generous wire range accommodates heavy cables, and the terminal’s dual connections simplify looping conductors for convenient grounding of multiple circuits.

Ideal use cases

• Protective earth bonding in control cabinets and switchgear
• Grounding connections in motor control centres
• Distribution panels in building services and industrial plants
• Maintenance and repair work in harsh environments where vibration is present

Good to know

With a rated impulse withstand voltage of 8 kV and a wide operating temperature from -60 °C to +130 °C, this terminal block is engineered for demanding applications. The green/yellow colour coding clearly identifies it as a protective conductor terminal, making compliance checks simpler. It is part of the Weidmüller A-Series, offering a consistent design and compatibility with common DIN-rail accessories.
