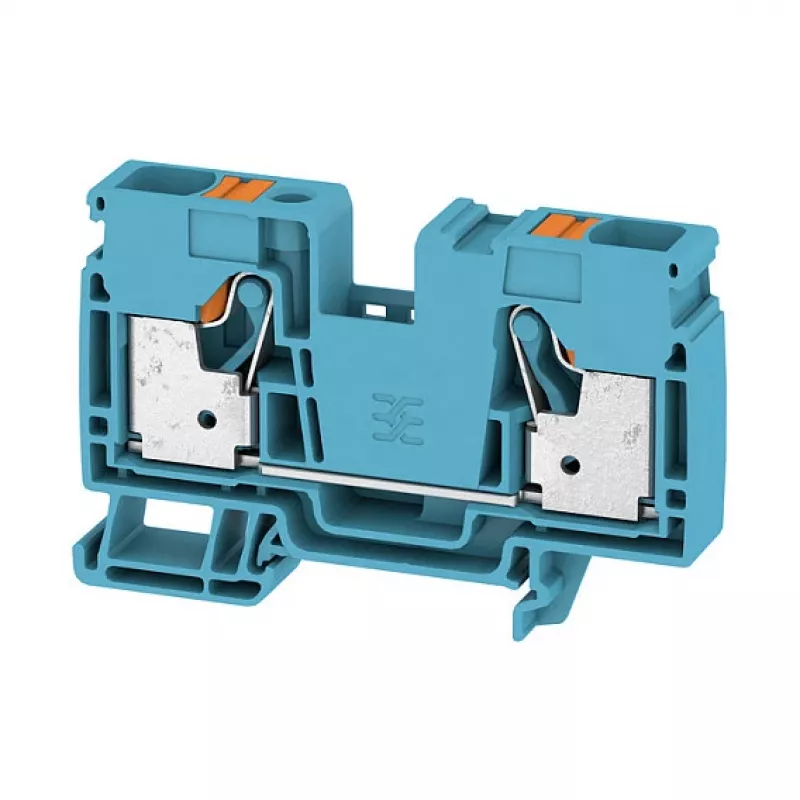

Weidmüller A2C 16 BL Feed-Through Terminal Block, Screw Connection, 16 mm², 1000 V, 76 A, Blue, DIN Rail TS 35

The Weidmüller A2C 16 BL stands out in the A-Series with its robust screw connection and high current capacity, making it a reliable choice for demanding industrial control panels. Unlike standard feed-through terminals, this block handles up to 76 A and 1000 V, ensuring safe power distribution in compact spaces.

Highlights

• Rated cross-section of 16 mm² with screw connection technology
• High current rating of 76 A and voltage rating of 1000 V (IEC)
• Single potential with two connections for straightforward wiring
• Mounts on standard DIN rail TS 35 for easy integration
• Blue polyamide housing with UL 94 V-0 flammability rating
• Wide operating temperature range from -50 °C to +120 °C

In daily use

This terminal block simplifies wiring in distribution boxes and control cabinets. The screw connection accepts rigid conductors from 0.5 to 25 mm² and flexible conductors from 0.5 to 16 mm², with a stripping length of 16 mm and a maximum tightening torque of 2.5 Nm. Its compact design and clear blue colour aid in circuit identification.

Full specifications

• Brand: Weidmüller
• Model: A2C 16 BL
• MPN: 2494100000
• EAN: 4050118504101
• Connection technology: Screw connection
• Rated cross-section (IEC): 16 mm²
• Rated voltage (IEC): 1000 V
• Rated current (IEC): 76 A
• Number of potentials: 1
• Number of connections: 2
• Mounting type: DIN rail TS 35
• Colour: Blue
• Insulating material: PA (Polyamide)
• Operating temperature: -50 °C to +120 °C
• Pollution degree: 3
• Flammability rating (UL 94): V-0
• Stripping length: 16 mm
• Tightening torque (max): 2.5 Nm
• Conductor cross-section, rigid (min-max): 0.5 - 25 mm²
• Conductor cross-section, flexible (min-max): 0.5 - 16 mm²
• Approvals: cURus, VDE, CSA, EAC, KEMA-KEUR, ATEX (Ex e)

Final note

With its high current rating and rugged construction, the A2C 16 BL is a dependable solution for power distribution in industrial environments.
