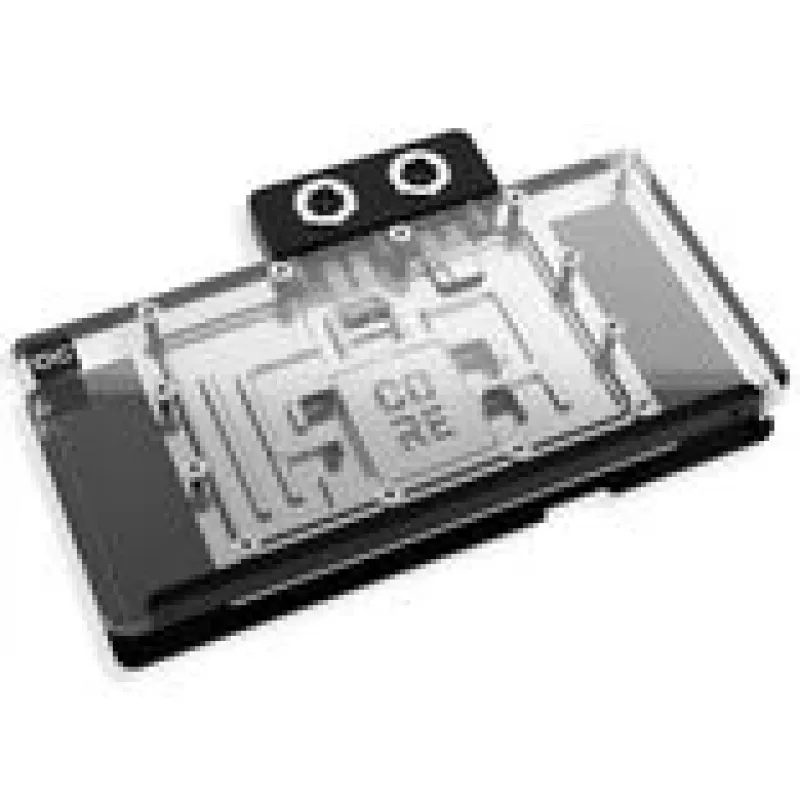

Water block Alphacool Core RX 9070 XT Nitro+ transparent/chrom with backplate

Alphacool Core RX 9070 XT Nitro+ transparent/chrom with backplate is a full-cover water block designed to cool compatible graphics cards in custom liquid-cooling loops. The block provides direct contact cooling for the GPU and associated components on the specific 9070 XT Nitro+ PCB layout, combining a transparent top with chrome accents and an included backplate to create a visually consistent solution for systems where component appearance and thermal performance are both important.

Advantages

This water block delivers targeted heat transfer from the GPU area to the coolant path, enabling lower operating temperatures compared with air-only cooling. The transparent/chrome design allows visible coolant flow and RGB lighting to remain prominent while the included backplate improves structural support and contributes to passive heat dissipation from the card’s rear side. Compatibility with the 9070 XT Nitro+ PCB layout ensures proper alignment of mounting points and coolant channels.

Suitable for

• Custom water-cooling builds targeting high-performance GPUs with 9070 XT Nitro+ PCB layout
• Silent or reduced-noise systems where liquid cooling replaces or supplements air cooling
• Showcase PC builds that require a transparent cooling solution and coordinated backplate aesthetics

Key specifications

• Full-cover water block design for graphics cards

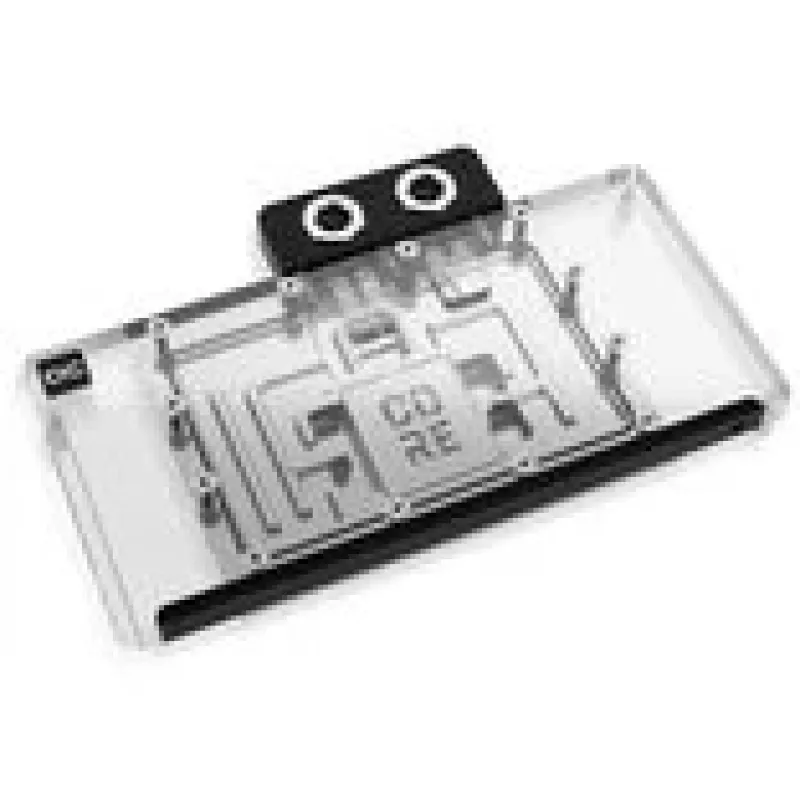

• Transparent top with chrome accents for visibility and style

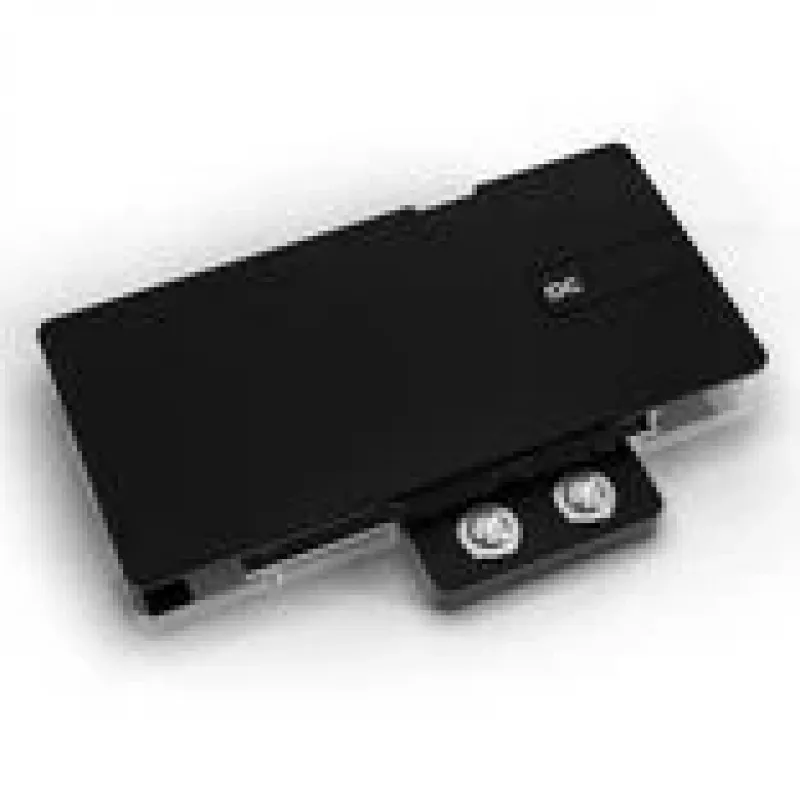

• Includes backplate for added support and rear-side cooling

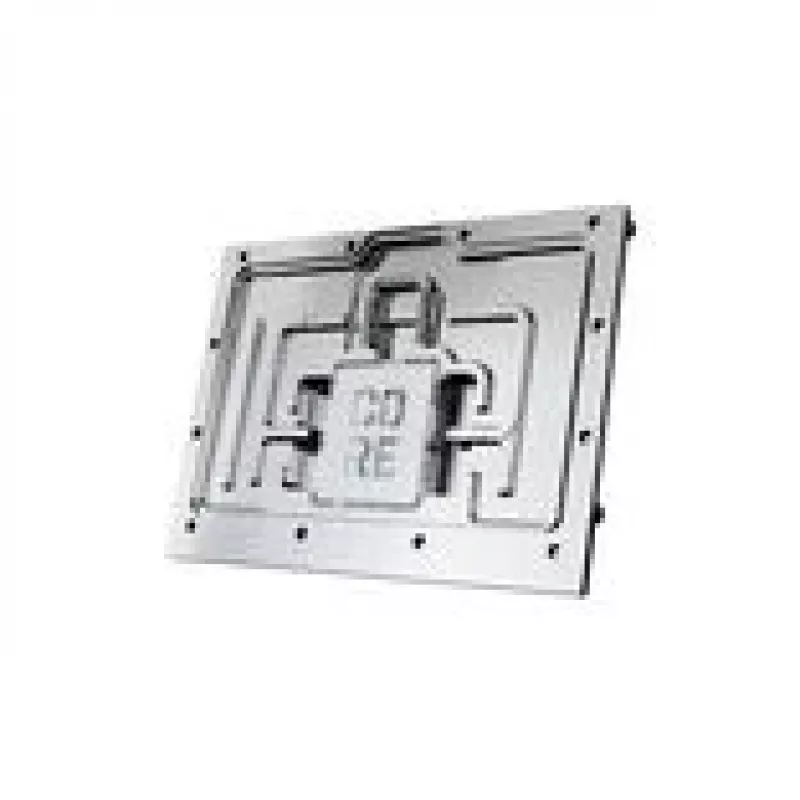

• Direct-contact cooling for GPU area and adjacent components
• Intended for integration into custom liquid-cooling loops
• Compatible with specific PCB layout of 9070 XT Nitro+ graphics cards

How to use

Install the water block by following manufacturer instructions for safe disassembly of the graphics card cooler and proper mounting on the 9070 XT Nitro+ PCB layout. Ensure the GPU surface and block cold plate are clean and apply thermal interface material where required between the GPU die and the block. Connect the block to the loop using suitable fittings and tubing rated for PC liquid cooling, then fill and leak-test the loop before normal operation. Tighten mounting hardware evenly to avoid stress on the PCB and verify clearance for adjacent components and case panels.

Recommendations

Use corrosion-resistant coolant and routine loop maintenance to preserve performance and appearance. Verify exact PCB compatibility before installation and follow torque specifications to prevent damage. Monitor coolant temperatures and check for any signs of leakage after initial system start-up.
