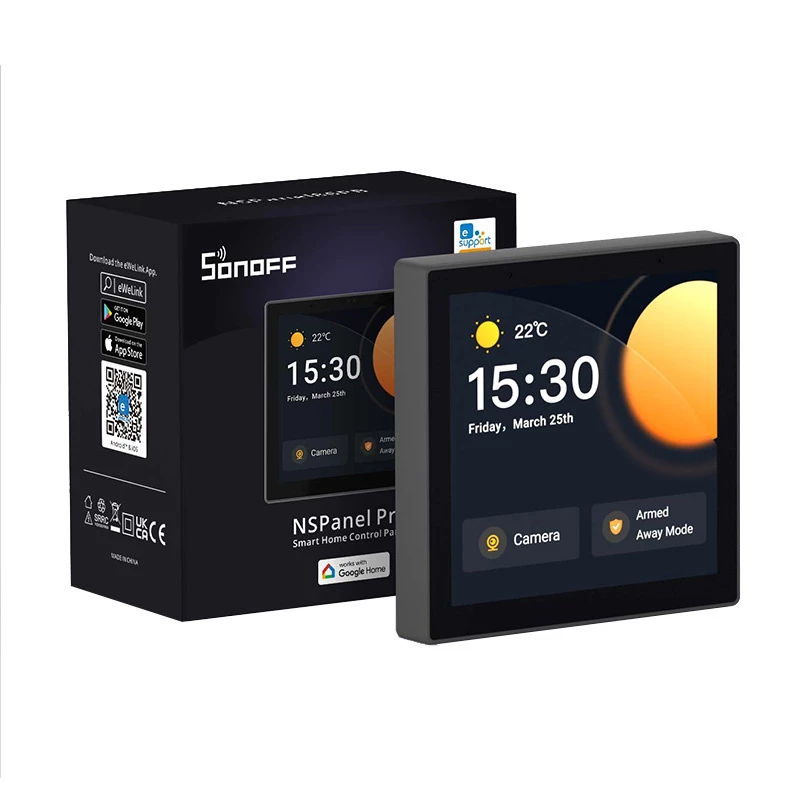

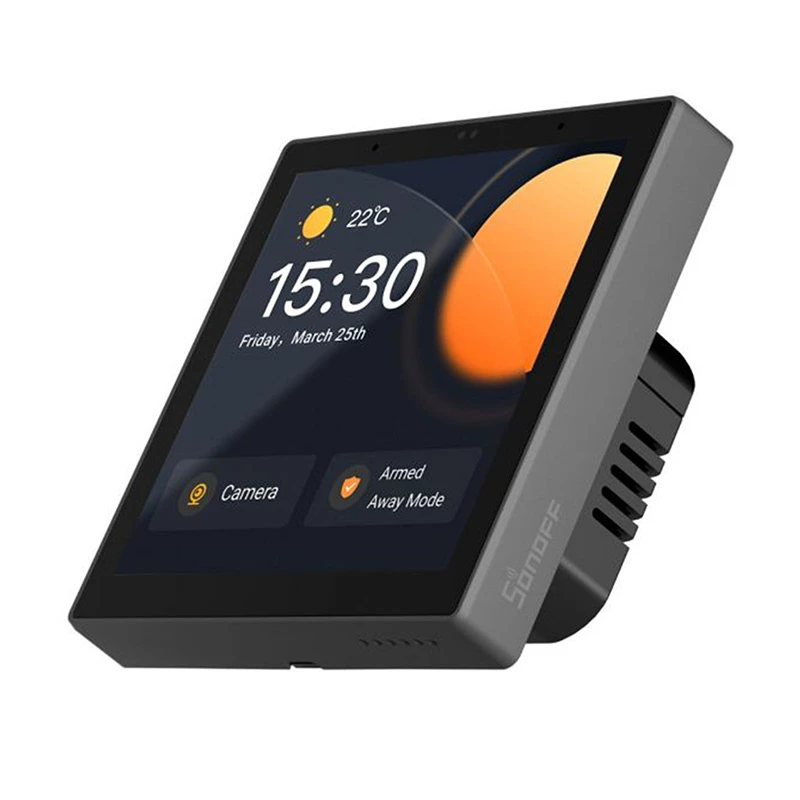

Wall-mounted Smart Control Panel Sonoff NSPanel Pro — Wi‑Fi, Bluetooth, ZigBee support, model NSPanel86PB

Sonoff NSPanel 86PB wall switch provides centralized control for smart home devices. It supports Wi‑Fi, Bluetooth and Zigbee 3.0, integrates with Home Assistant and NSPanel Pro, and displays camera feeds, temperature and other device states on a 3.95" touchscreen. The panel also includes a built‑in thermostat, voice communication via two‑way audio, and energy monitoring compatibility with Sonoff smart relays and switches.

Advantages

The NSPanel 86PB combines a touchscreen interface and wide protocol support to control lights, sensors, cameras and climate equipment. Automatic brightness adjustment and customizable wallpapers make daily interaction intuitive. Integration with Home Assistant and voice assistants allows flexible automation and remote control. Energy monitoring and compatibility with POW/Relay series help manage electricity consumption.

Key specifications

• Manufacturer: Sonoff
• Model: NS Panel 86PB
• Color: Black
• Voltage: 100–240V AC, 50/60Hz
• Maximum power consumption: 5W max, 150mA
• Screen: 3.95" TFT LCD, 480 × 480 resolution
• Audio output: 7Ω, 1W
• CPU/GPU: Quad‑core ARM Cortex‑A35 / Mali‑G31
• Dimensions: 86 × 86 × 39.5 mm
• Weight: 180 g
• Materials: PC V0, CRS, tempered glass
• Operating systems: Android, iOS
• Wi‑Fi: IEEE 802.11 b/g/n 2.4GHz
• Bluetooth: BT2.1+EDR, BT3.0, BT4.2
• Zigbee: IEEE 802.15.4 (Zigbee 3.0)
• Operating temperature: 0 °C to 40 °C
• Operating humidity: 5%–90% RH

How to use

Install the NSPanel 86PB into a standard 86 mm wall box and connect it to the mains according to local electrical rules. Pair the panel with your Wi‑Fi network or use Bluetooth for initial setup, then add Zigbee devices through NSPanel Pro if required. Integrate with Home Assistant using the supported synchronization options to control lights, relays, thermostats and cameras. Use the touchscreen to view camera feeds, set thermostat modes (Auto or Manual), store website shortcuts and customize wallpapers.

Recommendations

For reliable operation, mount the panel indoors within the specified temperature and humidity ranges and ensure a stable 2.4 GHz Wi‑Fi signal. When pairing Zigbee devices or Sonoff relays for energy monitoring, follow manufacturer pairing instructions and update firmware through NSPanel Pro or Home Assistant when available.
