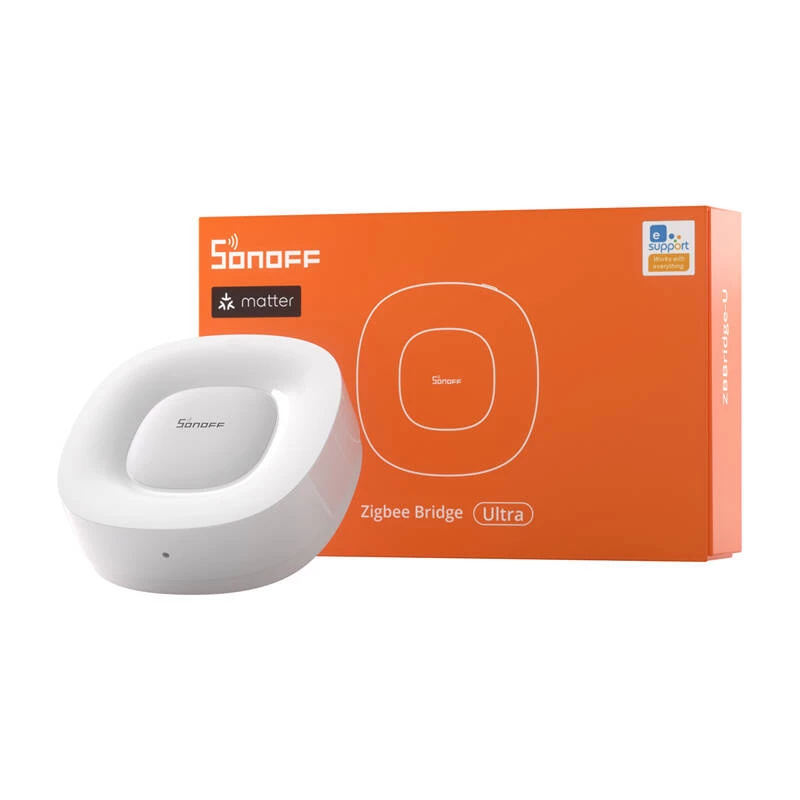

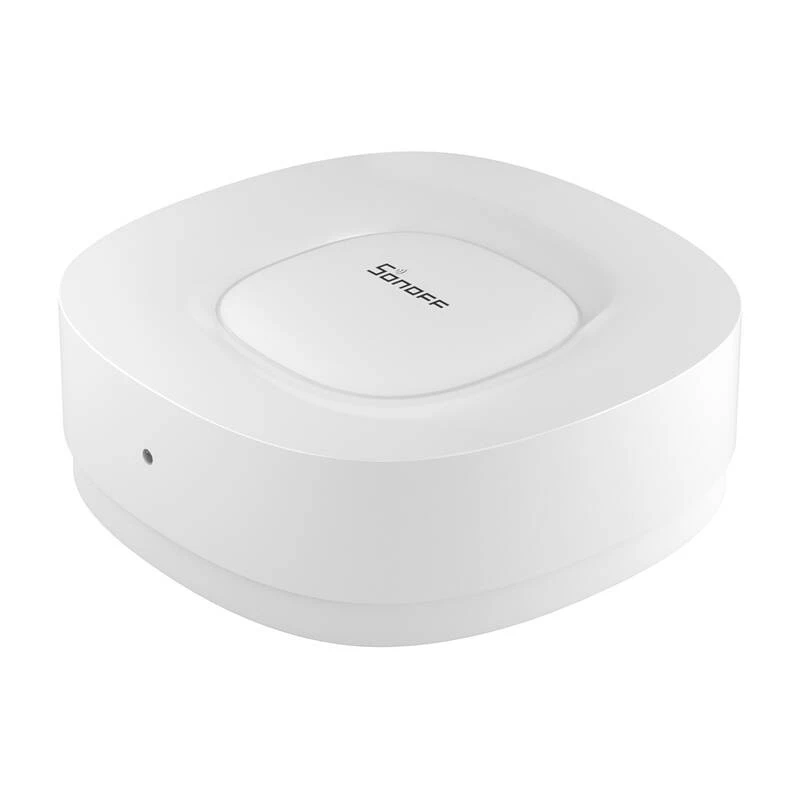

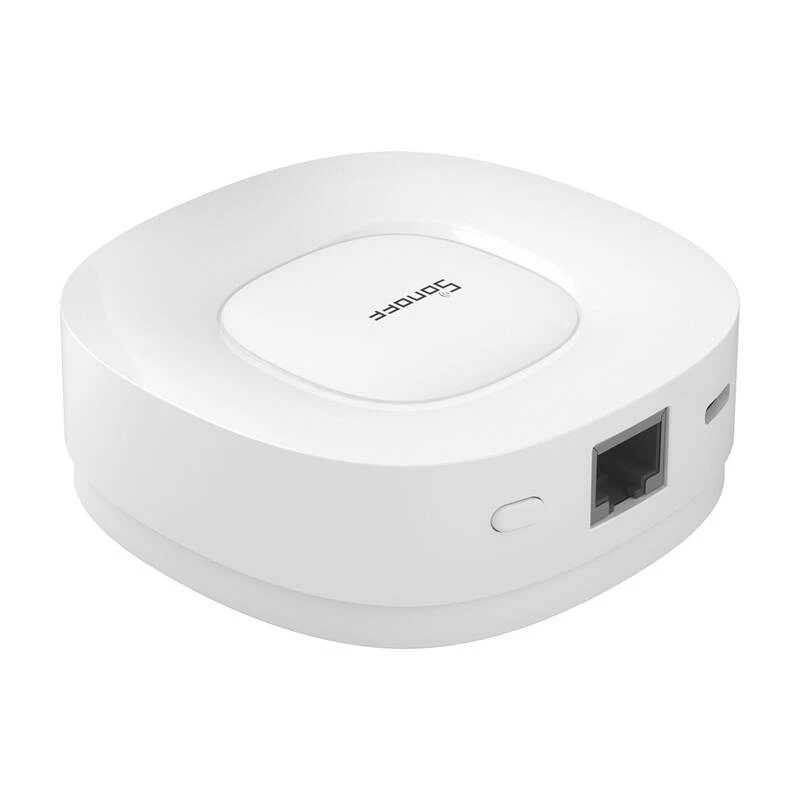

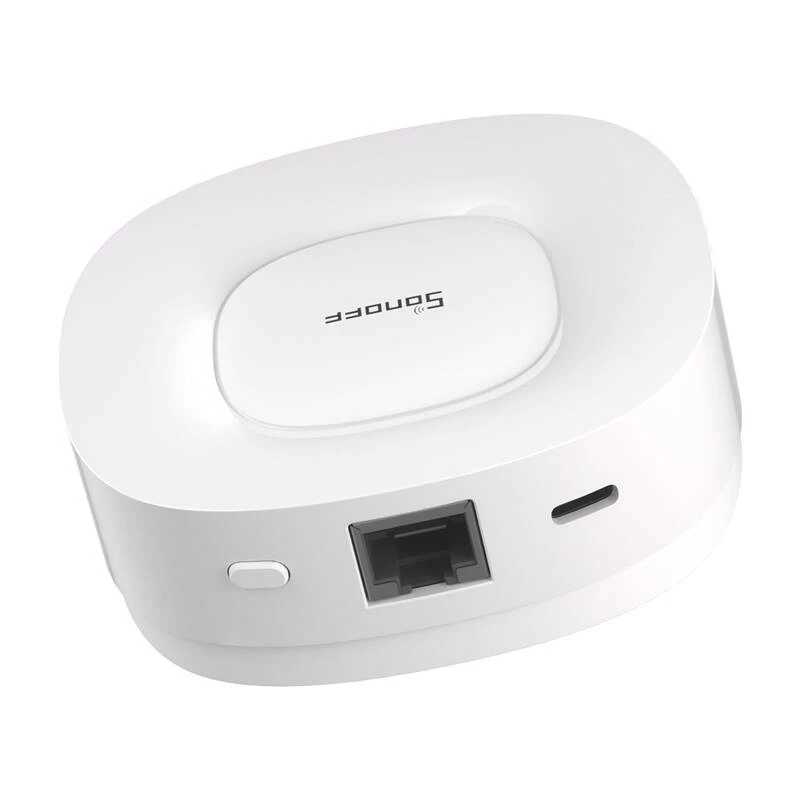

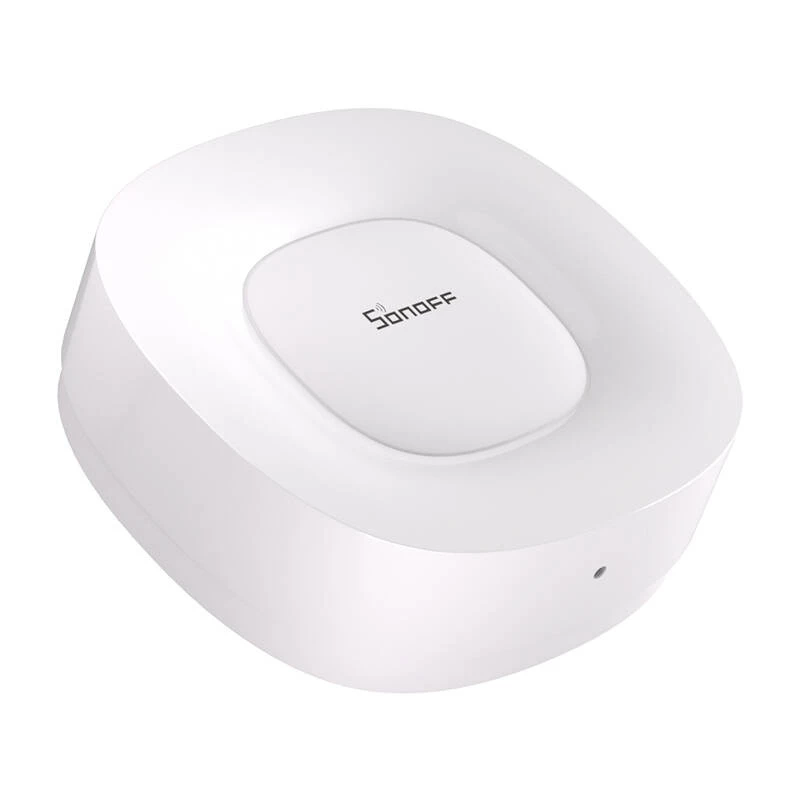

Smart home ZigBee bridge Sonoff ZBBridge-U with RJ45 LAN, 1.5 GHz processor, 1 GB RAM

SONOFF ZBBridge-U is a Zigbee bridge that connects Zigbee smart devices to the Matter ecosystem and IP-based smart home platforms. It provides RJ45 Ethernet and Wi‑Fi connectivity, a 1.5 GHz dual‑core processor, 1 GB DDR4 RAM and 8 GB eMMC storage, supports up to 256 devices and offers a radio range of up to 200 meters. The gateway enables control via Apple Home, Google Home, Amazon Alexa and SmartThings and can act as a security control panel to trigger alarm scenarios.

Advantages

The gateway combines wired Ethernet and 2.4 GHz Wi‑Fi connectivity with Zigbee 3.0 support to ensure stable and fast communication between devices. Its 1.5 GHz dual‑core processor, 1 GB of DDR4 memory and 8 GB eMMC provide sufficient performance for complex automations and simultaneous control of many devices. Matter compatibility makes it possible to manage Zigbee devices from major smart home ecosystems and voice assistants. The device also supports creation of alarm scenarios by integrating with Zigbee sensors.

Suitable for

• Connecting and managing Zigbee sensors, switches and smart outlets
• Integrating Zigbee devices into Apple Home, Google Home, Amazon Alexa or SmartThings
• Running home automations that require coordination of multiple devices
• Using wired Ethernet for a stable smart home backbone

Key specifications

• Manufacturer: SONOFF
• Model: ZBBridge-U
• Processor: 1.5 GHz dual‑core
• Memory: 1 GB DDR4 RAM
• Storage: 8 GB eMMC
• Max connected devices: 256
• Network interface: RJ45 (10/100 Mbps) and Wi‑Fi IEEE 802.11 b/g/n 2.4 GHz
• Zigbee: Zigbee 3.0 (EFR32MG21 + RV1109)
• Power interface: USB‑C, power supply 5 V ⎓ 1 A
• Operating temperature: -10°C to 40°C
• Operating humidity: 5–95% RH, no condensation
• Material: PC + ABS
• Compatibility: Apple Home, Amazon Alexa, Google Home, SmartThings

How to use

Connect the ZBBridge‑U to your network using the included Ethernet cable or via 2.4 GHz Wi‑Fi, then power the device using the supplied USB‑C cable and a 5 V/1 A adapter. Install and open the compatible app or add the gateway through your chosen smart home platform (Apple Home, Google Home, Alexa or SmartThings) using Matter support. Pair Zigbee devices through the gateway following the device pairing procedure in the app. After pairing, create automations and scenes or configure alarm scenarios by selecting sensors and actions in the app.

Recommendations

For best performance place the gateway in a central location with minimal metal or concrete obstructions, use Ethernet when possible for a stable connection, and keep connected Zigbee devices within the typical Zigbee range for reliable communication. Ensure the gateway firmware and associated apps are kept up to date.
