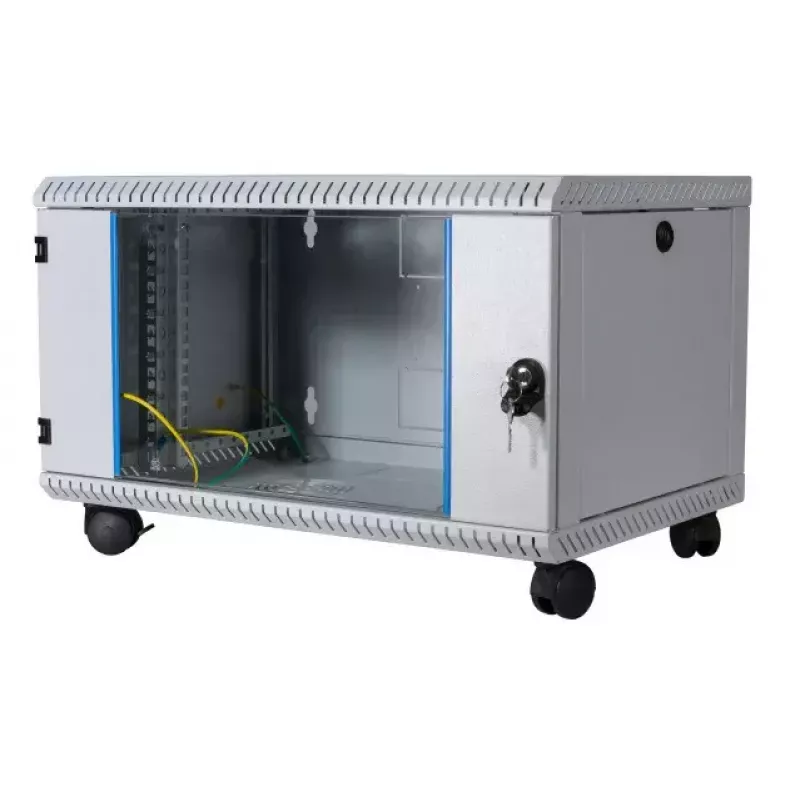

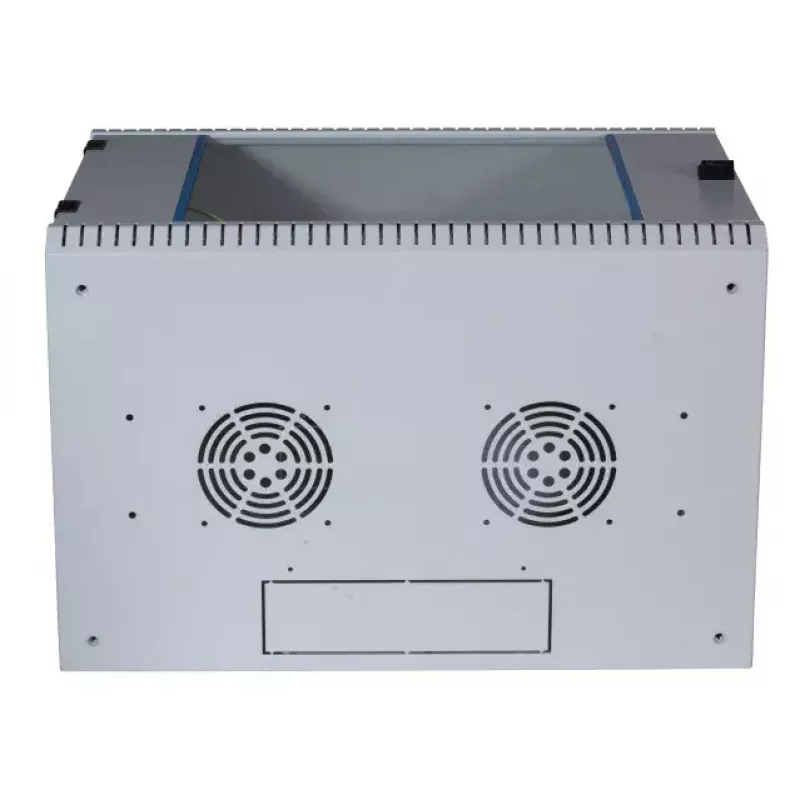

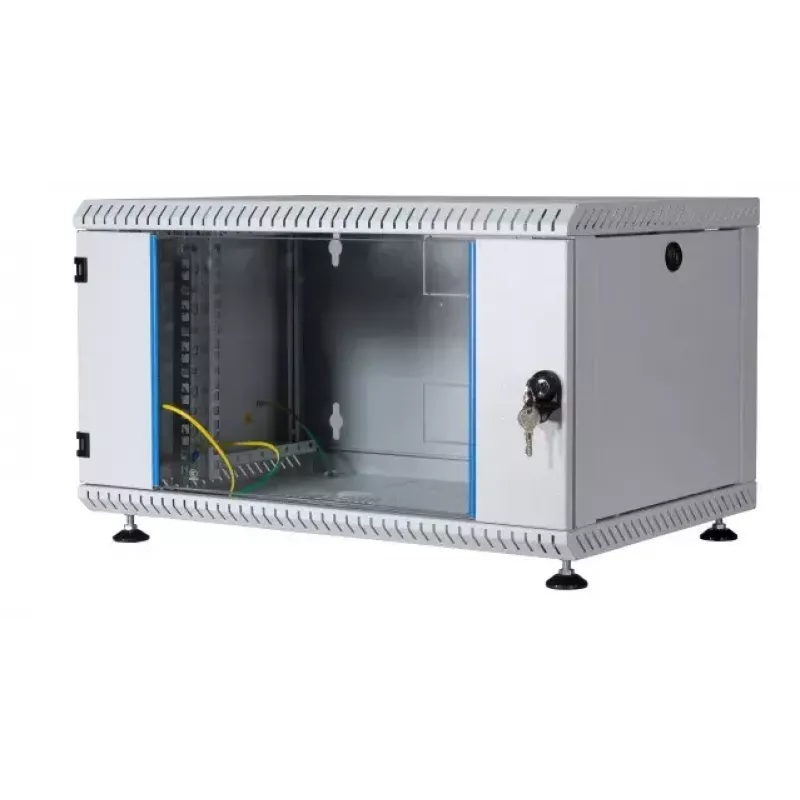

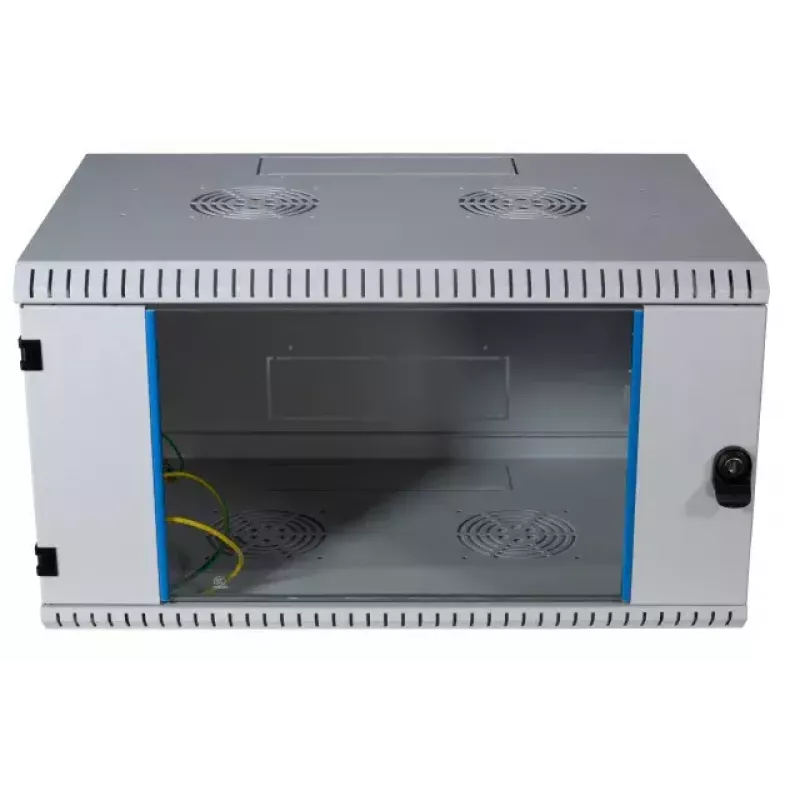

Wall mounted rack EFB Elektronik 691715VGR.60

The EFB Elektronik 691715VGR.60 is a wall mounted rack designed for orderly installation of network and server equipment in limited spaces. It provides 15U of rack capacity in a compact 19" format with a 600 mm width and 600 mm depth, standing 730 mm high. The unit supports a maximum load of 50 kg and features an IP20 protection rating suitable for indoor environments. Finished in grey, the rack combines a practical footprint with a standard mounting configuration for 19" devices.

Advantages

The rack offers a compact 15U mounting space that helps consolidate equipment while keeping a small wall-mounted profile. Its 600 x 600 mm footprint is appropriate for technical rooms, offices and small data closets where floor space is limited. With a 50 kg maximum load and 19" mounting rails, the enclosure provides stable support for patch panels, switches and similar 19" devices. The IP20 rating indicates protection against solid objects greater than 12 mm, making the rack suitable for typical indoor installations.

Suitable for

• Mounting 19" network switches and patch panels in offices and server rooms
• Telephone and communications equipment installations
• Small rack-mounted servers and edge computing devices within the stated load limit
• Cabling distribution and centralised network point management

Key specifications

• Rack capacity: 15U in 19" format
• Overall width: 600 mm
• Overall depth: 600 mm
• Overall height: 730 mm
• Maximum load capacity: 50 kg
• Protection rating: IP20 (indoor use)
• Colour: grey

How to use

Install the wall mounted rack on a load-bearing wall using appropriate anchors and fixings rated for the combined weight of the cabinet and installed equipment. Securely fasten the 19" mounting rails to the rack interior before fitting equipment. Mount devices from top to bottom to maintain balance, and distribute weight evenly to stay within the 50 kg maximum. Route network cables through available entry points and organise them with cable management accessories compatible with 19" racks.

Recommendations

Place the rack in a dry, ventilated indoor location away from direct heat sources and moisture. Verify that the wall and fixings can safely carry the static and dynamic loads. Do not exceed the specified load capacity, and ensure adequate airflow around installed equipment to prevent overheating.
