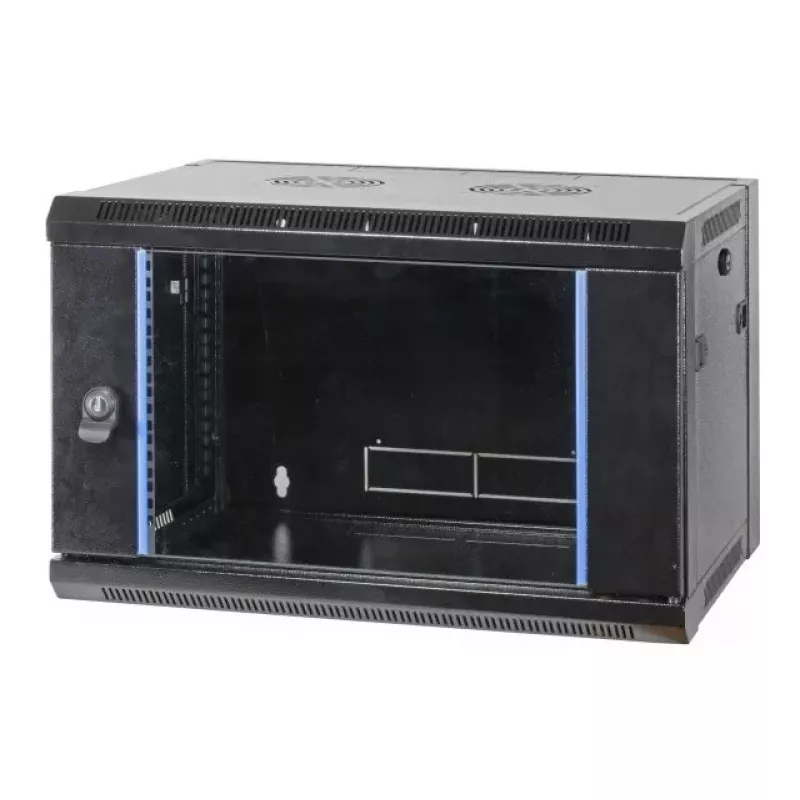

Wall mounted rack EFB Elektronik 691715FTS.1

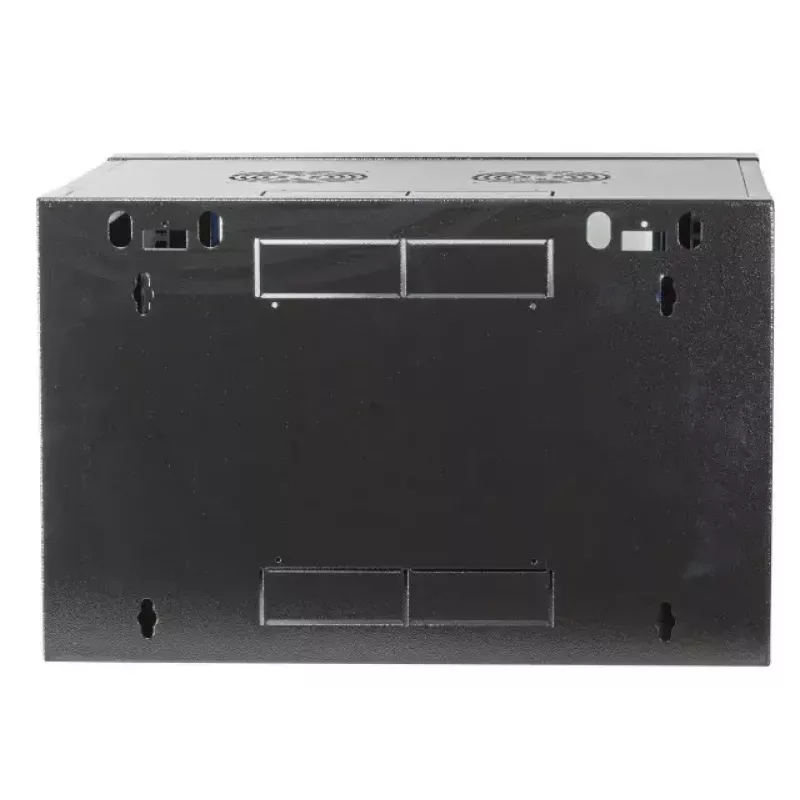

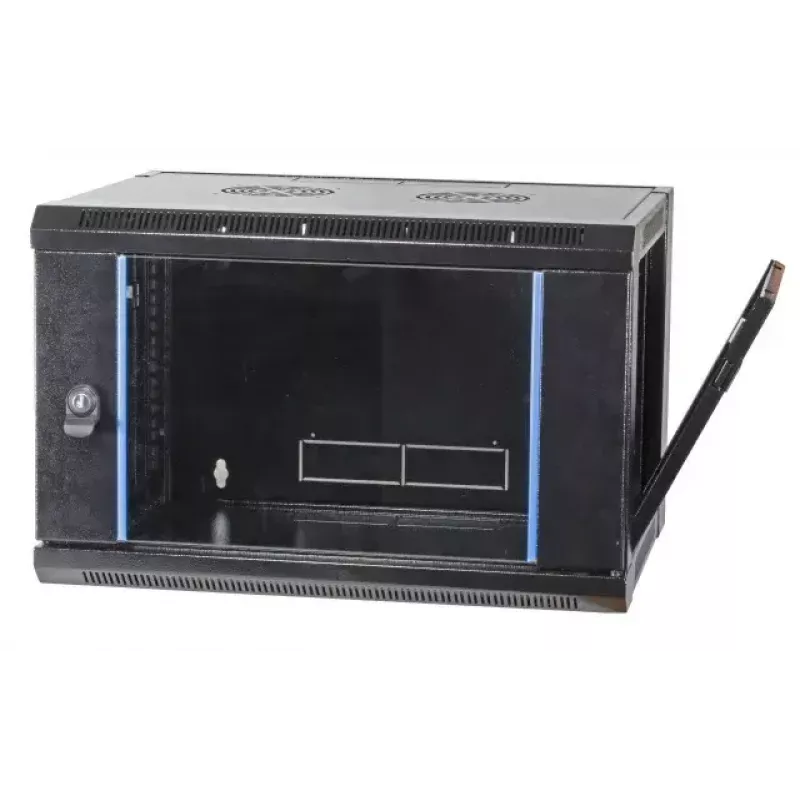

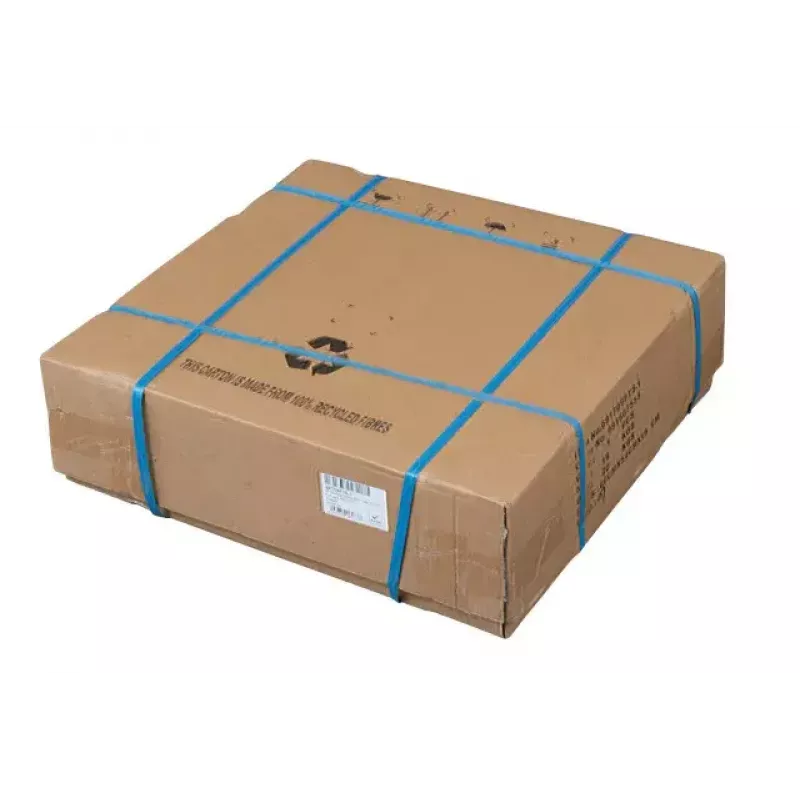

Steel sheet housing with a screwed frame, designed as a wall mounted rack by EFB Elektronik (model 691715FTS.1). The cabinet is delivered unassembled and self-ventilated, with removable side wall secured by a quick fastener. Roof, bottom and rear wall include pre-punched cable entry openings (230 x 41 mm) and the roof is prepared for mounting two single fans (Art.-No. 691664). Inside there are two 19" rails on the front side with adjustable depth. The front door features a window of certified safety glass (4 mm) and a lock. Cabinet parts are fully earthed and the unit has a maximum load of 60 kg. Protection degree IP20 and paint finish RAL9005 (jet black). Included accessories: 2 keys. Delivery unassembled in transport packaging.

Advantages

The wall mounted rack offers a compact footprint (570 x 450 x 770 mm) suitable for small to medium network installations, combining a screwed steel-frame construction with RAL9005 powder coating for durable protection. Removable side wall and front-mounted, depth-adjustable 19" rails simplify installation and maintenance while pre-punched cable entries and fan-ready roof support effective cable management and airflow. The front door with 4 mm certified safety glass and integrated lock provides secure visual access to equipment.

Suitable for

• Small to medium office network equipment
• Patch panels, switches and small servers
• Telecom and AV installations requiring wall-mounted cabinets
• Environments where a compact, lockable wall cabinet is required

Key specifications

• Brand: EFB Elektronik, Model: 691715FTS.1
• Dimensions (W x D x H): 570 x 450 x 770 mm
• Material: Steel sheet housing with screwed frame
• Mounting: Wall mounted rack, delivery unassembled
• Rails: 2 x 19" front-sided, depth-adjustable
• Cable entry: Pre-punched openings 230 x 41 mm (roof, bottom, rear)
• Roof fan preparation: For 2 x single fan (Art.-No. 691664)

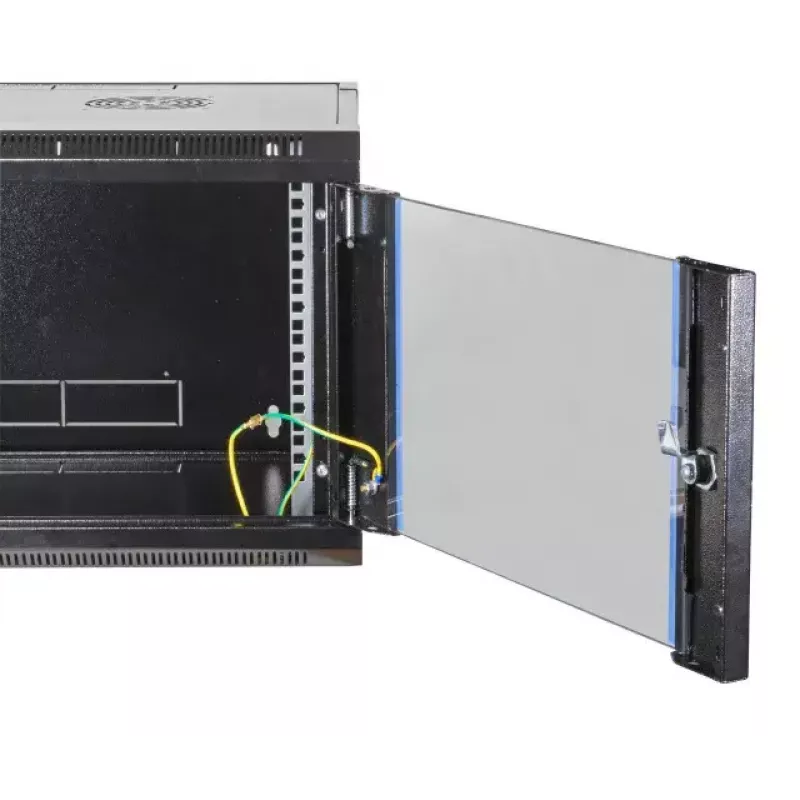

• Front door: Certified safety glass window, 4 mm, with lock; 2 keys included
• Earthing: Cabinet parts completely earthed
• Max. load: 60 kg
• Protection degree: IP20
• Finish: RAL9005 (jet black)

How to use

Unpack the transport packaging and assemble the cabinet according to the supplied instructions. Mount the assembled rack securely to a suitable wall structure capable of supporting the specified maximum load (60 kg). Install equipment on the front-sided 19" rails, adjusting rail depth as required. Use the pre-punched openings for cable routing and fit fans on the prepared roof positions if active ventilation is needed. Lock the front door after placing equipment; two keys are provided.

Recommendations

Install the cabinet on a load-bearing wall and ensure proper earthing connection. Do not exceed the 60 kg maximum load and maintain clearances for ventilation; if higher cooling demand is expected, mount the recommended single fans (Art.-No. 691664) on the prepared roof openings.
