Wall mounted rack EFB Elektronik 691706VGR.50

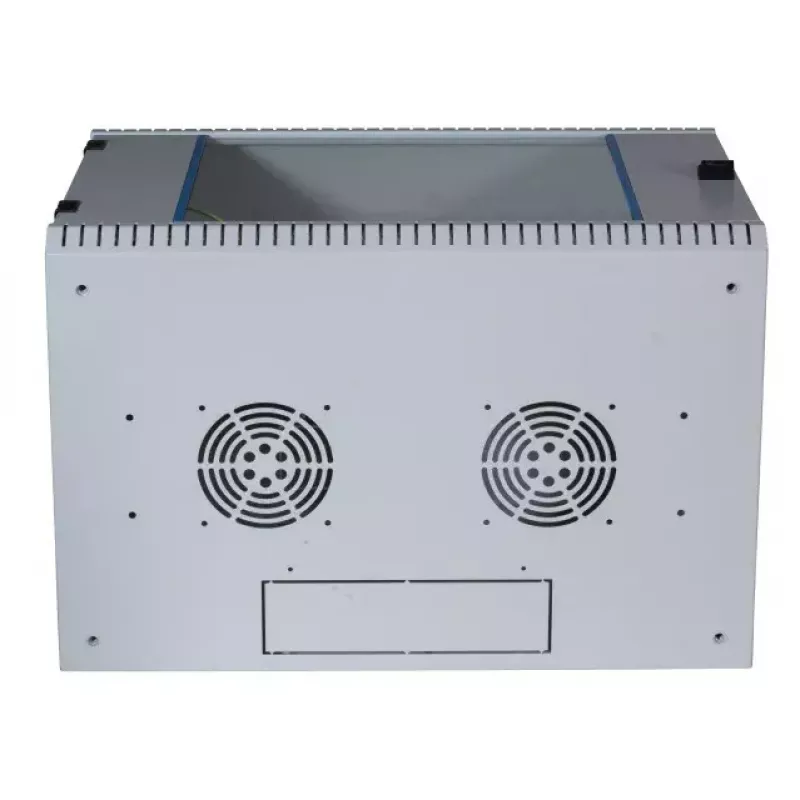

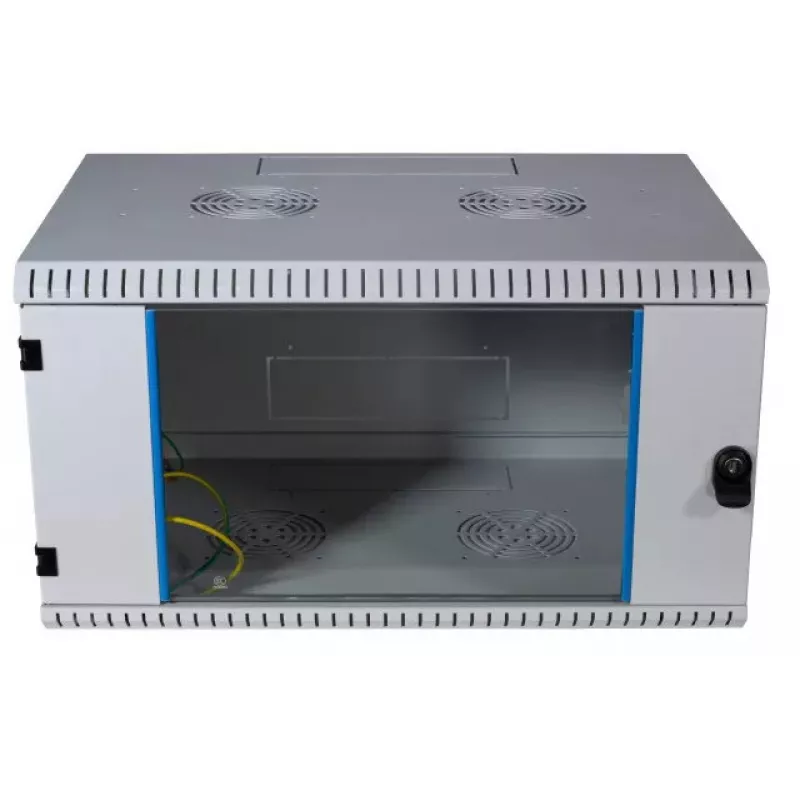

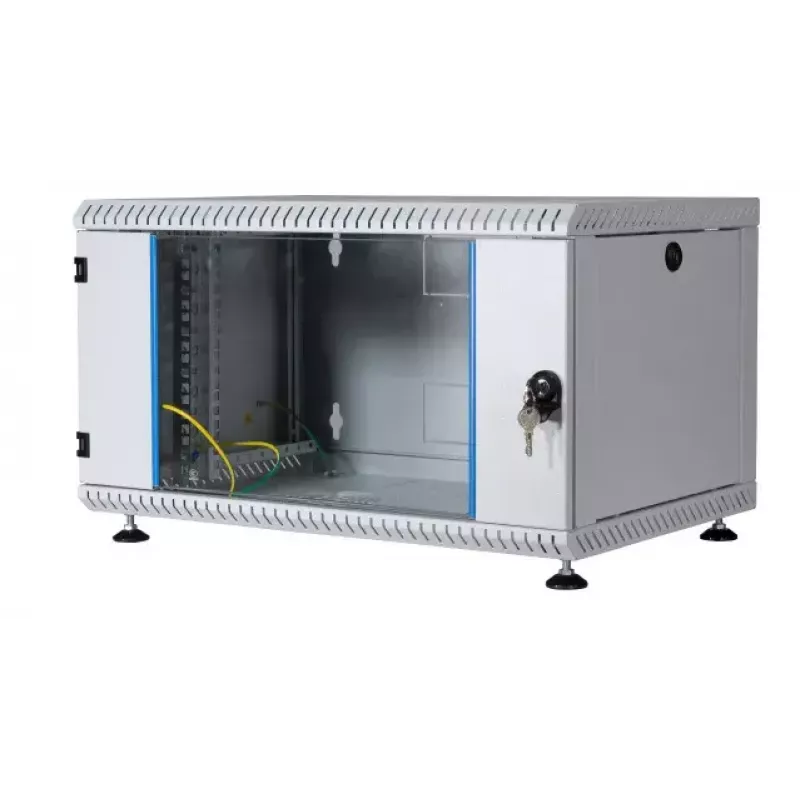

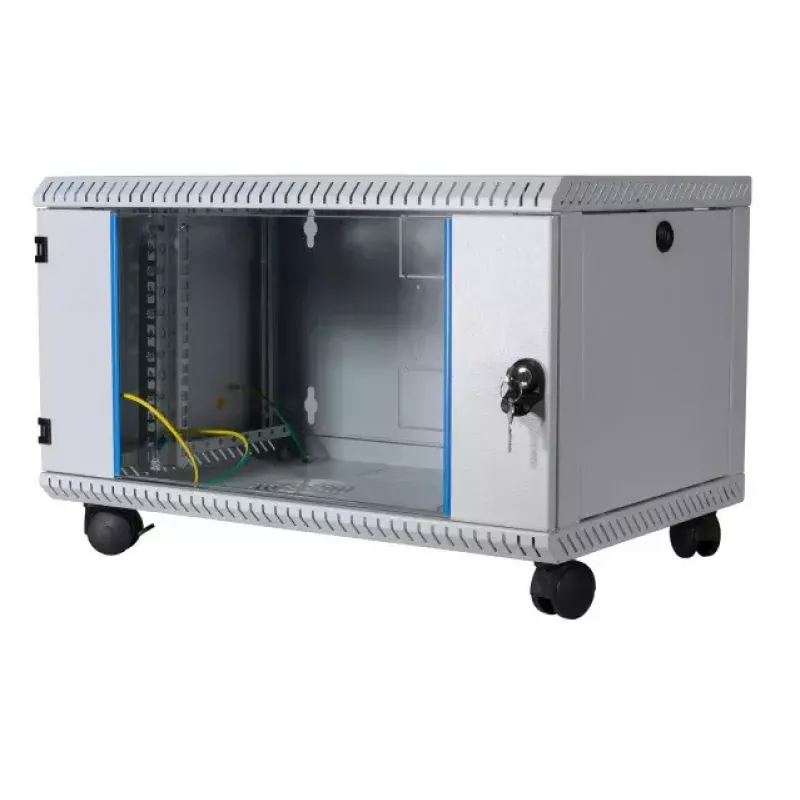

The EFB Elektronik 691706VGR.50 is a 6U wall mounted rack with a steel sheet housing and welded frame, delivered completely pre-assembled and self-ventilated. Designed for indoor network and equipment installation, it supports up to 50 kg and has an IP20 protection rating. The grey finish and 19" compatibility make it suitable for standard IT and telecom devices while saving floor space.

Advantages

Sturdy steel construction with a welded frame ensures structural stability and long service life. The rack comes fully pre-assembled for quick installation and is self-ventilated to assist passive heat dissipation. Its compact 6U size and 600 mm width with 500 mm depth provide compatibility with standard 19" equipment while minimizing required wall area. IP20 protection makes it appropriate for controlled indoor environments.

Suitable for

• Small server and network appliance installations
• Patching panels, switches and routers in IT closets
• Telecom and structured cabling termination points
• Environments where floor space is limited and wall mounting is preferred

Key specifications

• Brand: EFB Elektronik
• Model / MPN: 691706VGR.50
• Rack capacity: 6U (19")
• Dimensions (W x D x H): 600 mm x 500 mm x 330 mm
• Maximum load: 50 kg
• IP rating: IP20
• Colour: Grey
• Assembly: Delivered completely pre-assembled

How to use

Mount the rack on a suitable load-bearing wall using appropriate fasteners and anchors for the wall material. Verify the mounting height and clearances for cabling and ventilation. Install standard 19" equipment into the 6U frame, securing devices with compatible rails or mounting hardware. Route cables through the available openings and ensure the total weight of mounted equipment does not exceed the 50 kg limit.

Recommendations

Install the rack in a dry, dust-controlled indoor environment consistent with IP20 protection. Distribute mounted equipment weight evenly and periodically check fasteners and grounding. For active cooling needs, allow additional ventilation or integrate external cooling solutions; do not exceed the specified maximum load.
