Wall mounted rack EFB Elektronik 691703VWS

Steel sheet housing for wall mounting, completely pre-assembled and self-ventilated, the Wall mounted rack EFB Elektronik 691703VWS is designed for compact installation of 19" components in environments that require basic protection (IP20). The cabinet has a narrow overall depth of 150 mm and a robust steel construction with a painted finish available in RAL7035 (light grey), RAL9005 (jet black) or RAL9010 (white). Delivery includes one key.

Advantages

The unit arrives fully pre-assembled for quick installation and offers pre-punched ventilation openings and cable clamps to simplify cabling. A hinged, lockable cover with a window provides visual access while securing equipment. Multiple mounting options are provided with vertical and horizontal 19" mounting spaces, and several configurable depths for connected devices.

Suitable for

• Small network installations and patch panels
• Structured cabling and low-profile active equipment
• Wall-mounted IT, telecom or AV components in offices and homes
• Environments requiring basic protection against solid objects (IP20)

Key specifications

• Brand: EFB Elektronik, model 691703VWS
• Material: Steel sheet
• Dimensions (W × D × H): 537 mm × 146 mm × 475 mm
• Overall wall depth: 150 mm
• Mounting: 3U vertical 19" (max depths: 360 / 340 / 300 mm), 5U horizontal 19" (max depth 80 mm), 3U level 180° swiveling
• Cover: Hinged, lockable with window; includes 1 key

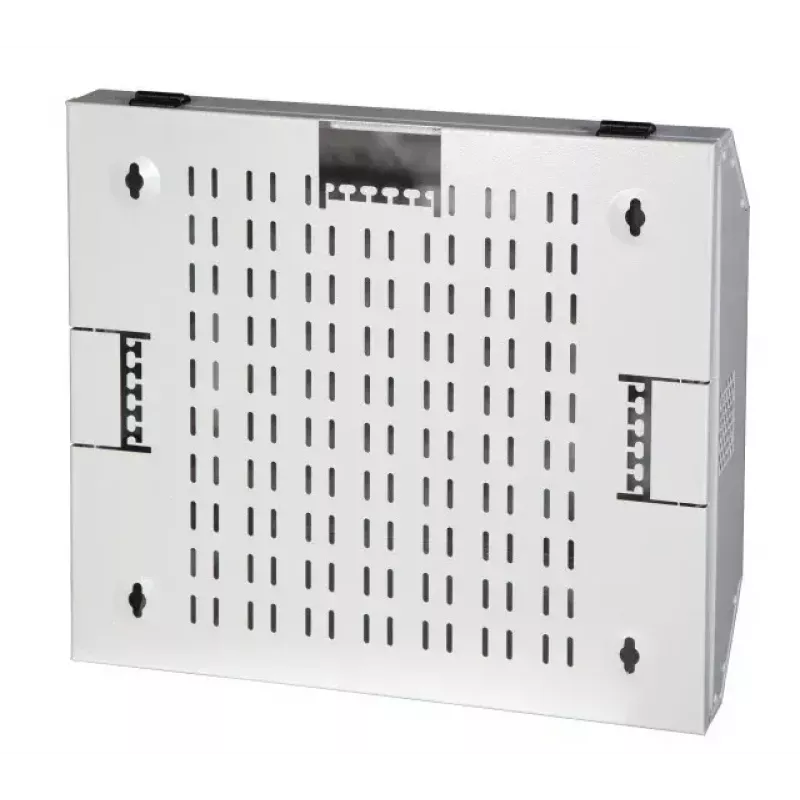

• Ventilation: Pre-punched ventilation openings; self-ventilated

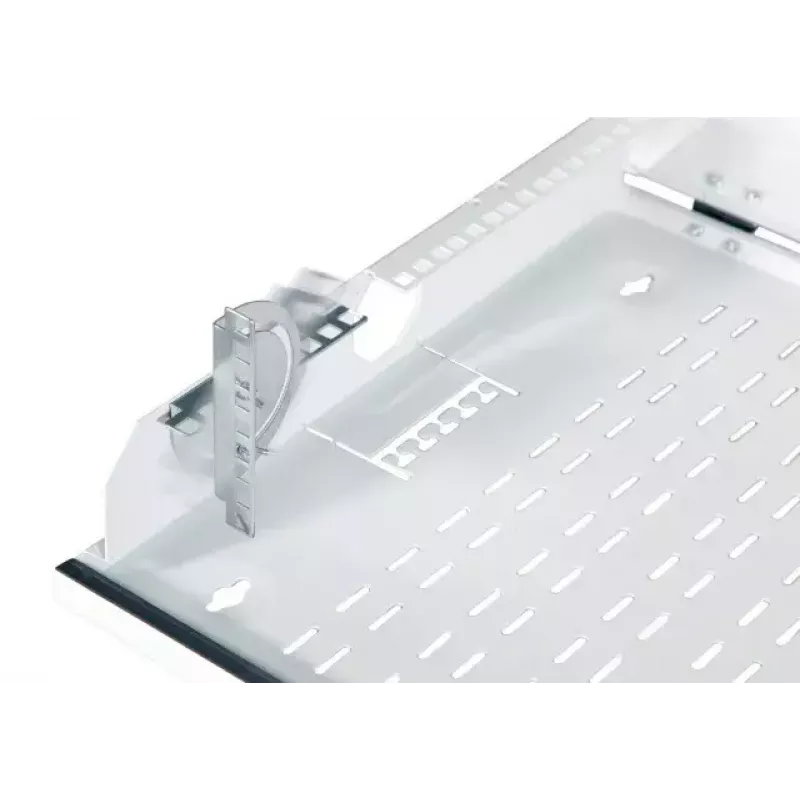

• Cable management: Pre-punched cable clamps in rear wall
• Finish colors: RAL7035 (light grey), RAL9005 (jet black), RAL9010 (white)
• Protection degree: IP20
• EAN: 4049759165178

How to use

Mount the cabinet securely to a suitable wall surface using appropriate fasteners for the wall material. Install 19" components vertically or horizontally according to the available U-positions and the component depths indicated. Route network and power cables through the pre-punched cable clamps in the rear wall and use the pre-punched ventilation openings to maintain airflow. Close and lock the hinged cover after installation; the window allows visual inspection without opening the door.

Recommendations

For safe operation, ensure mounted equipment does not exceed the listed maximum depths and that the wall and fixings support the combined weight. Maintain clearance for ventilation openings and follow EFB Elektronik mounting instructions. The cabinet is intended for indoor use where IP20 protection is sufficient.
