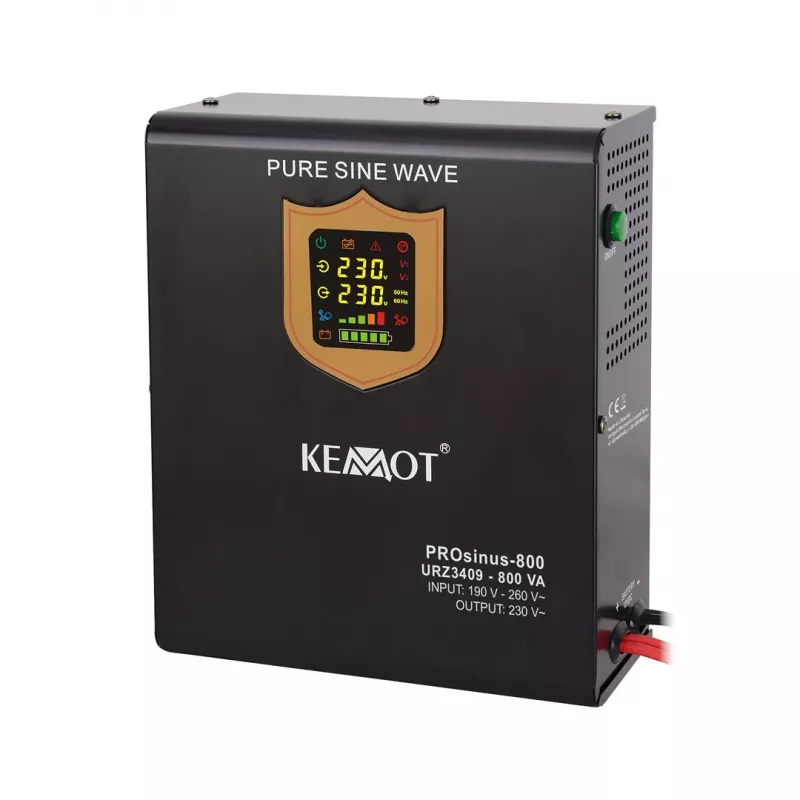

Wall-mounted Emergency Power Supply KEMOT PROsinus-800 Converter with Pure Sine Wave and Charging Function 12V 230V 800VA/500W

The KEMOT PROsinus-800 is a wall-mounted emergency power supply that combines a pure sine wave inverter and a battery charger in one unit. Designed for reliable backup power, it converts 12V DC battery power to 230V AC with a continuous output of 500W (800VA). The pure sine wave output ensures safe operation of sensitive electronics. The built-in charger supports lead-acid batteries (AGM, Gel) with up to 10A charging current. With a transfer time of less than 4 ms, it provides seamless power during outages. The LCD display shows operating status, and active cooling ensures stable performance. Protection features include overload, short circuit, over-temperature, over-discharge, and overcharge.

Advantages

Pure sine wave output for sensitive devices; fast transfer time; integrated charger; wall-mountable design; comprehensive protection.

Suitable for

• Home backup power
• Office equipment
• Security systems
• Telecommunications

Key specifications

• Output Power: 500 W (active) / 800 VA (apparent)
• Input Voltage (DC): 12 V
• Output Voltage (AC): 230 V
• Output Waveform: Pure Sine Wave
• Output Frequency: 50 Hz
• Battery Charger Current (Max): 10 A
• Transfer Time: < 4 ms
• Efficiency: > 85%
• Input Voltage Range (AC): 170 - 270 V AC
• Protection Features: Overload, Short Circuit, Over-temperature, Over-discharge, Overcharge
• Display Type: LCD
• Cooling Method: Active (Fan)
• Operating Temperature: 0 - 40 °C
• Mounting Type: Wall-mounted
• Battery Type Compatibility: Lead-acid (AGM, Gel)
• Topology: Line-Interactive
• Total Harmonic Distortion (THD): < 3%
• Output Sockets: 2x Schuko (Type F)

Recommendations

For optimal performance, use with a deep-cycle lead-acid battery. Ensure proper ventilation and follow the installation manual.
