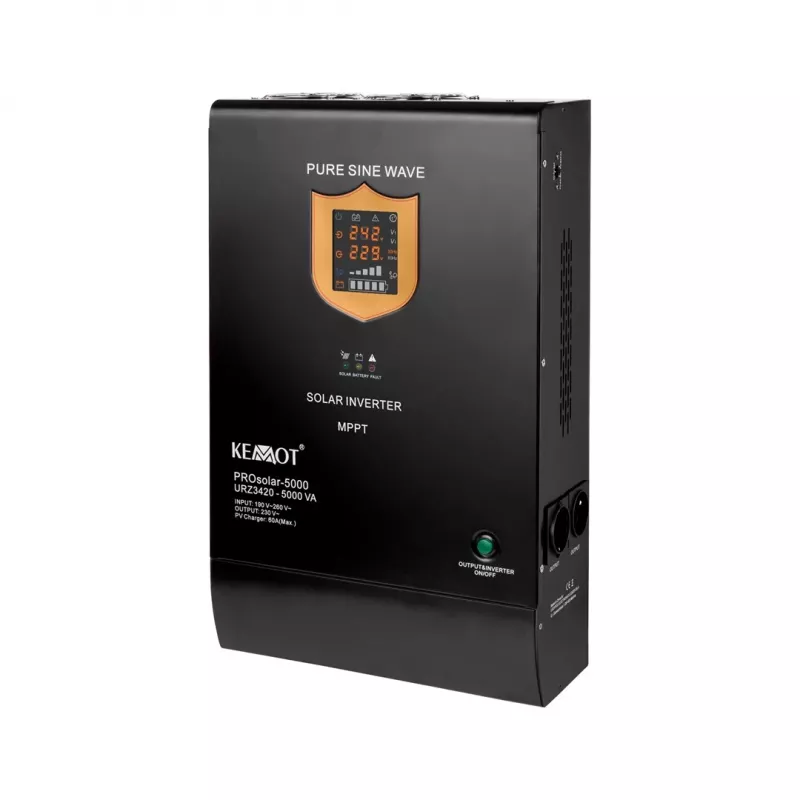

KEMOT PROsolar-5000 48V 230V 5000VA/3500W Hybrid Solar Inverter

The KEMOT PROsolar-5000 is a high-performance hybrid solar inverter designed for residential and commercial off-grid or backup power systems. With a rated output of 3500W (5000VA) and pure sine wave output, it ensures clean and stable power for sensitive electronics. The inverter integrates MPPT solar charging, battery charging, and AC bypass functionality, making it a versatile solution for solar energy management.

Advantages

This inverter offers seamless transition between solar, battery, and grid power with a fast transfer time of 10ms (UPS mode). Its high maximum PV array power of 4000W and MPPT voltage range of 120-450V DC allow efficient solar energy harvesting. The device supports both USB and RS232 communication for monitoring and control.

Suitable for

• Off-grid solar power systems
• Backup power for homes and small offices
• Remote monitoring stations
• Telecommunication equipment

Key specifications

• Rated Output Power: 3500W (5000VA)
• Peak Power: 7000VA (5 seconds)
• DC Input: 48V DC
• AC Output: 230V AC, Pure Sine Wave
• Frequency: 50/60Hz Auto Sensing
• Max PV Array Power: 4000W
• MPPT Voltage Range: 120-450V DC
• Max Solar Charge Current: 80A
• Max AC Charge Current: 60A
• Max Combined Charge Current: 140A
• Peak Efficiency: 93%
• Transfer Time: 10ms (UPS) / 20ms (Appliances)
• Communication: USB, RS232, Dry Contact
• Protection: Overload, Short Circuit, Over Temperature, Over/Under Voltage
• Operating Temperature: -10°C to 50°C

Recommendations

For optimal performance, use with a 48V battery bank and ensure proper ventilation. The inverter is suitable for indoor installation in a dry environment. Always follow local electrical codes and consult a professional installer.
