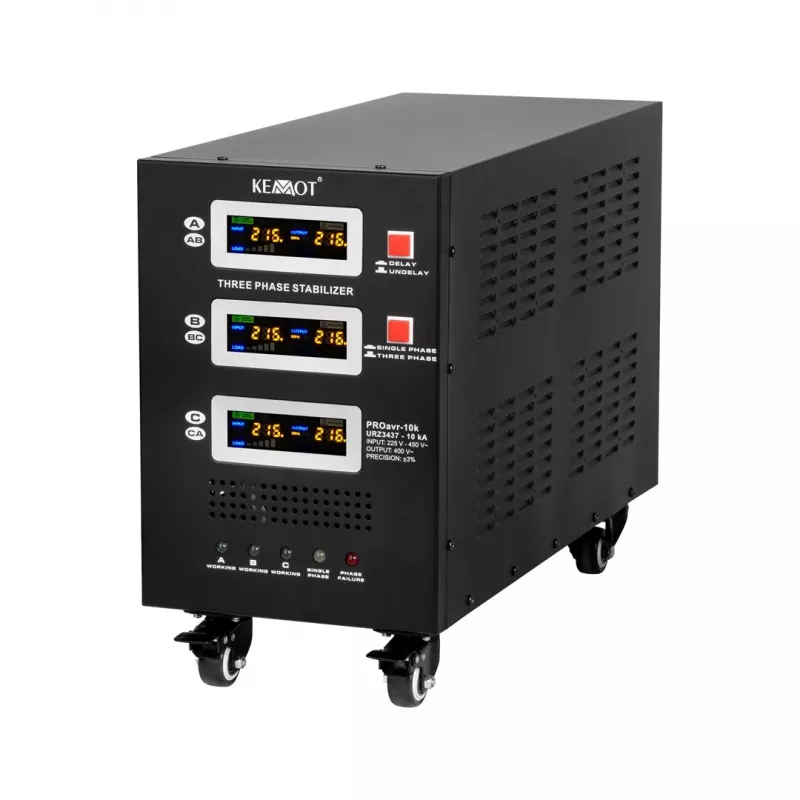

Automatic Three-Phase Voltage Stabilizer KEMOT PROavr-10k 10 kVA

The KEMOT PROavr-10k is a professional-grade automatic three-phase voltage stabilizer designed to protect sensitive industrial and commercial equipment from voltage fluctuations. With a power rating of 10 kVA and servo motor technology, it ensures stable output voltage of 380 V AC with ±3% accuracy, safeguarding your devices against overvoltage, undervoltage, overload, short circuits, and overheating. The LCD display provides real-time monitoring, while fan cooling ensures reliable operation in demanding environments.

Advantages

Reliable voltage stabilization for three-phase systems, fast response time (<1 second), high efficiency (≥95%), comprehensive protection features, and easy floor-standing installation with terminal block connections.

Suitable for

• Industrial machinery and production lines
• Commercial HVAC systems and elevators
• Data centers and server rooms
• Medical equipment and laboratories
• Any three-phase equipment requiring stable power

Key specifications

• Power Rating: 10000 VA / 10 kVA
• Phases: Three-phase
• Input Voltage Range: 280 V - 430 V AC
• Output Voltage: 380 V AC
• Output Voltage Accuracy: ± 3%
• Frequency: 50/60 Hz
• Stabilization Technology: Servo Motor Type
• Efficiency: ≥ 95%
• Response Time: < 1 second
• Protection Features: Overload, Overvoltage, Undervoltage, Short Circuit, Overheat
• Display Type: LCD
• Cooling System: Fan Cooling
• Operating Temperature: 0°C - 40°C
• Relative Humidity: 20% - 90% (non-condensing)
• Insulation Resistance: > 2 MΩ
• Dielectric Strength: 1500 V / 1 min
• Harmonic Distortion: No additional waveform distortion
• Mounting Type: Floor-standing
• Input Connection: Terminal Block
• Output Connection: Terminal Block

Recommendations

For optimal performance, ensure proper ventilation around the unit and follow the manufacturer's installation guidelines. Regularly inspect connections and keep the stabilizer in a clean, dry environment.
