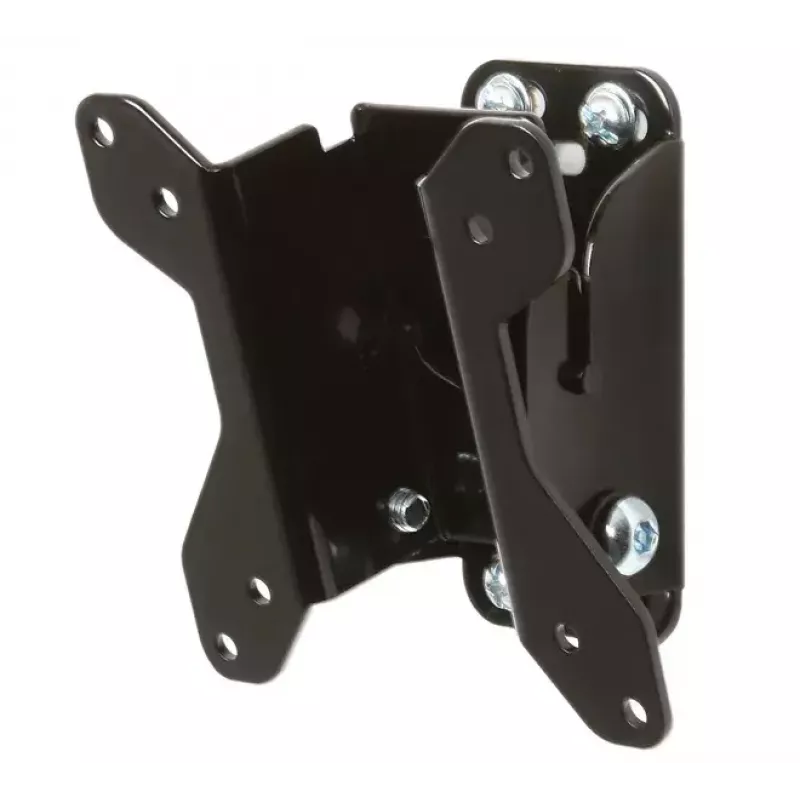

Wall mount B-TECH BT7511/B for flat screens, tilt -10° to 17°, up to 20 kg, for 28 inch (max 71.1 cm), VESA 75x75–100x100, 5.5 cm wall distance, black

B-TECH BT7511/B is a compact wall mount for flat-panel displays designed for screens up to 71.1 cm (28") and a maximum weight of 20 kg. The bracket supports VESA patterns 75×75 mm and 100×100 mm and provides a tilt adjustment from -10° to 17°, allowing vertical angle correction for comfortable viewing. With a low-profile distance of 5.5 cm from the wall and a black finish, the mount is suited to discreet installation in homes, offices and meeting rooms. The wall plate incorporates a simple levelling system for accurate alignment and the package includes security screws to reduce the risk of unauthorised removal. The plate is also compatible with matching poles and collars from the same manufacturer for alternative mounting configurations.

Advantages

The mount combines a small wall distance with a useful tilt range to optimise viewing angles while keeping the display close to the wall. Its support for common VESA sizes and a 20 kg load limit makes it suitable for many small TVs and monitors. The integrated wall levelling feature simplifies accurate installation and supplied security screws increase installation safety. Compatibility with accessory poles and collars adds flexibility for different mounting setups.

Suitable for

• Small TVs and computer monitors up to 28" (71.1 cm) and 20 kg
• Home living rooms and bedrooms where a compact, low-profile mount is desired
• Office spaces, meeting rooms and reception areas for space-saving screen placement
• Environments requiring a secure installation with anti-removal screws

Key specifications

• Tilt range: -10° to 17° for vertical angle adjustment
• Supported VESA patterns: 75×75 mm and 100×100 mm
• Maximum supported display size: 71.1 cm (28")
• Maximum load capacity: 20 kg
• Distance from wall: 5.5 cm (low-profile design)
• Finish: black
• Integrated wall levelling system for accurate alignment
• Includes security screws to help prevent unauthorised removal
• Compatible with accessory poles and collars for alternative mounting options

How to use

Select a suitable wall location capable of supporting the combined weight of the mount and display. Attach the wall plate to a solid surface using appropriate fixings for the wall type, use the integrated levelling system to ensure the plate is straight, then secure the plate. Fix the compatible VESA adapter on the back of the display using the supplied or appropriate screws, then hang the display onto the wall plate and engage the security screws to reduce the risk of removal. Adjust the tilt between -10° and 17° to achieve the desired viewing angle. If using accessory poles or collars, follow their instructions for safe attachment and alignment.

Recommendations

Use wall anchors or bolts rated for the wall material and load; do not exceed the 20 kg weight limit. Verify VESA compatibility before installation. Tighten security screws after final positioning and periodically check all fixings for tightness. For installations on hollow or weak walls, consult a professional installer or use appropriate reinforcement. When combining with poles or collars, ensure compatibility and follow the accessory manufacturer’s instructions.
