B-Tech XL Heavy Duty Universal Flat Screen Wall Mount with Tilt VESA 1000 x 600 130 kg

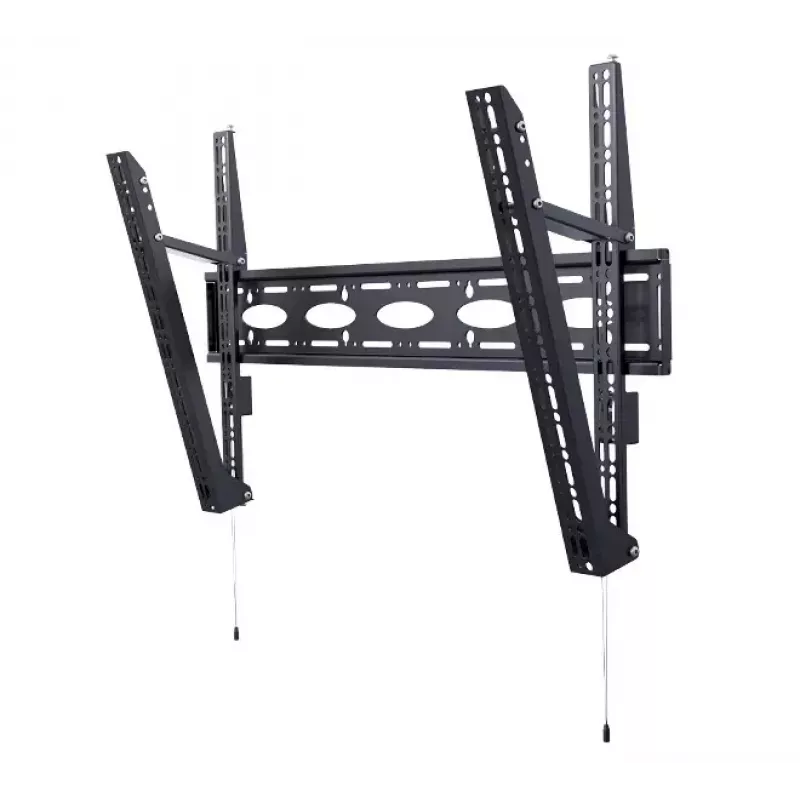

The B-Tech BT9910 XL heavy duty universal flat screen wall mount is designed to support very large displays, accommodating screens from 65" up to 100" with a maximum load capacity of 130 kg. The mount offers a choice of four tilt positions between 0° and 15°, a universal VESA interface up to 1000 x 600 mm, and a low-profile distance to the wall of 8.2 cm. Keyhole fixings on the wall plate, a hook-on mounting system and height-adjustment screws allow straightforward installation and post-fit levelling.

Advantages

The BT9910 supports very large screens and high weights (up to 130 kg) while providing tilt adjustment to reduce glare. Its universal VESA compatibility (up to 1000 x 600 mm) fits a wide range of professional and domestic displays. The combination of keyhole fixings, hook-on fitting and height adjustment screws simplifies installation and makes alignment easier after mounting.

Suitable for

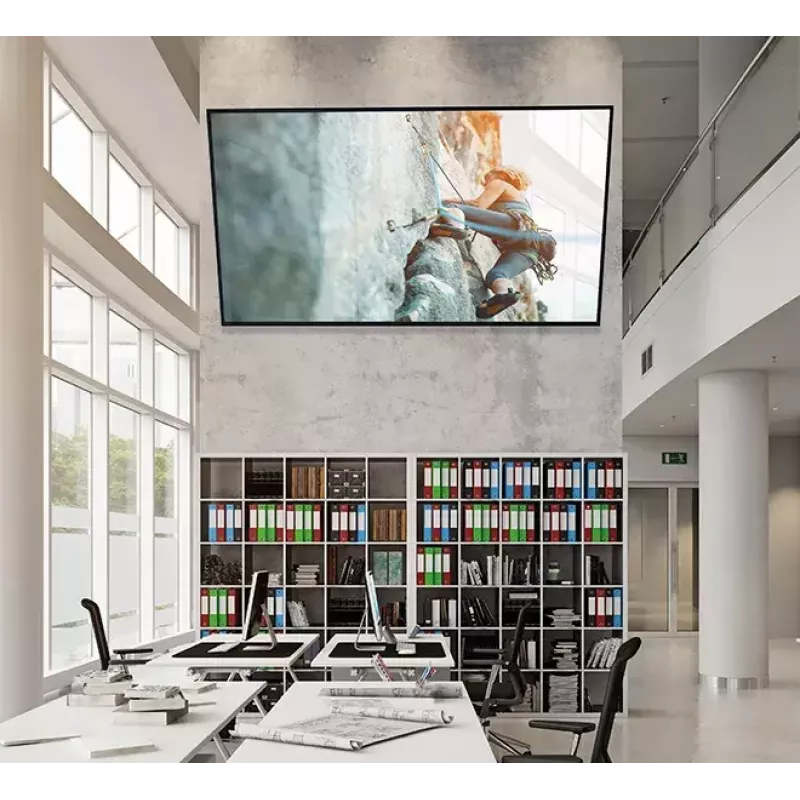

• Large commercial displays in offices, retail or public spaces
• Home theatre screens from 65" to 100"
• Wall-mounted digital signage and presentation screens

Key specifications

• Maximum weight capacity: 130 kg
• Maximum screen size supported: up to 100"
• VESA compatibility: up to 1000 x 600 mm

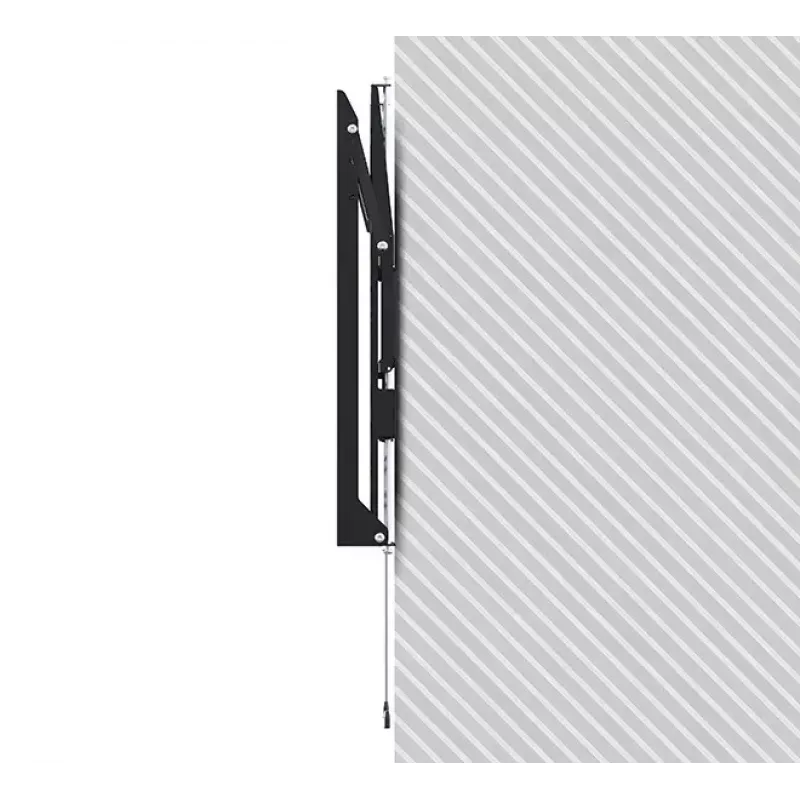

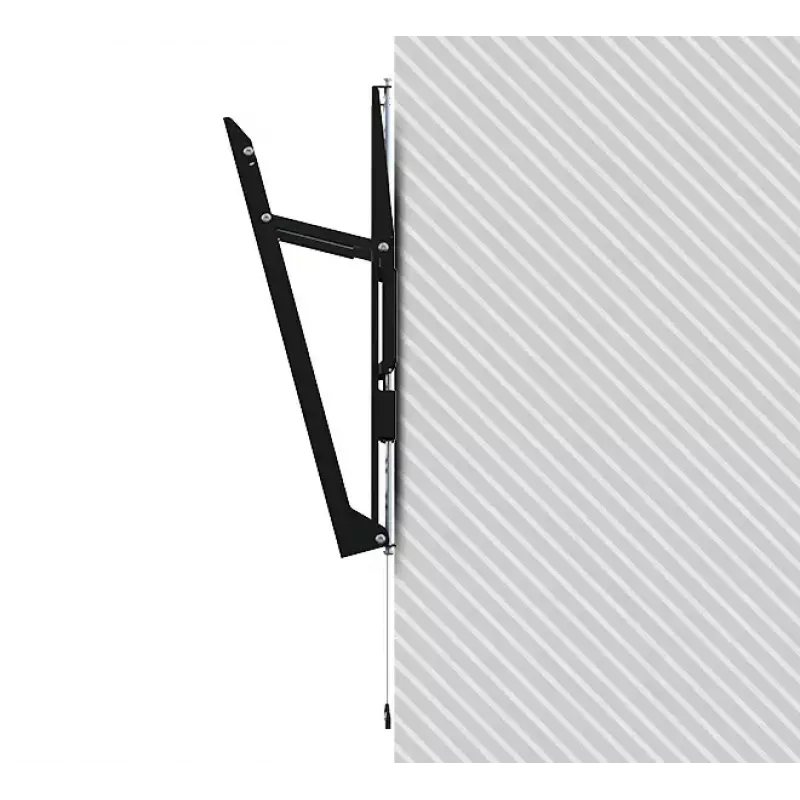

• Tilt positions: 0° to 15° (4 selectable positions)
• Distance to wall: 8.2 cm
• Colour: Black
• Number of displays supported: 1

How to use

Fix the wall plate to a suitable load-bearing wall using appropriate anchors and the keyhole fixings, observing local building standards. Attach the interface brackets to the display using the correct VESA holes and M-screws for your screen. Hang the display on the wall plate using the hook-on system, then use the height adjustment screws to level the screen. Select the required tilt position (0°–15°) and secure the mount according to the manufacturer’s torque recommendations.

Recommendations

Check the display’s VESA pattern and weight before installation, use suitable fixings for the wall type and, when in doubt, consult a professional installer to ensure safe mounting and correct load distribution.
