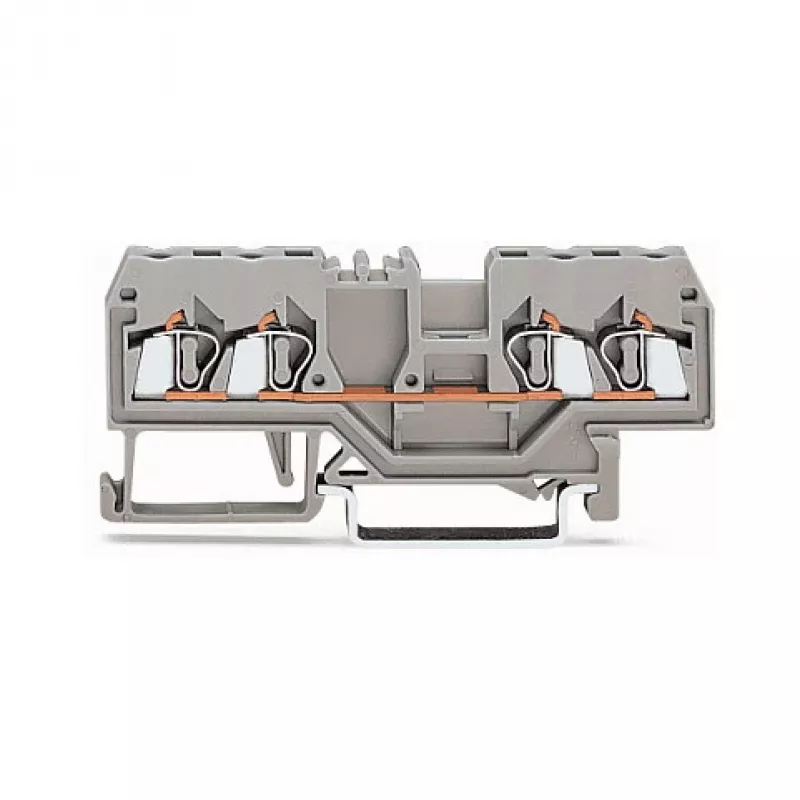

WAGO Through Terminal Block Grey 0.08-2.5 mm² 280-833

WAGO Through Terminal Block Grey 0.08-2.5 mm² 280-833
WAGO Through Terminal Block Grey 0.08-2.5 mm² 280-833
R619
The WAGO 280-833 Through Terminal Block is a high-quality, compact DIN-rail mounted terminal block from the TOPJOB S 280 Series. Designed for reliable and maintenance-free wiring, it features the innovative CAGE CLAMP® Push-in connection technology for fast and secure conductor termination. This gre... Read More
Stock 90 Code 2891396 Brand WAGO Model 280-833 Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The WAGO 280-833 Through Terminal Block is a high-quality, compact DIN-rail mounted terminal block from the TOPJOB S 280 Series. Designed for reliable and maintenance-free wiring, it features the innovative CAGE CLAMP® Push-in connection technology for fast and secure conductor termination. This grey terminal block accommodates solid and fine-stranded conductors from 0.08 to 2.5 mm² (28-12 AWG) and is rated for 800 V and 24 A. Ideal for industrial control cabinets, building automation, and electrical installations, it offers a front-entry wiring design with a stripping length of 9-11 mm. The insulation material is polyamide (PA) with a flammability rating of UL94 V0, ensuring high safety standards. With 3 conductors and 1 potential, this through terminal block provides a simple and efficient solution for connecting and distributing electrical signals.

Advantages

• CAGE CLAMP® Push-in connection for tool-free, vibration-proof wiring
• Compact design saves space on DIN-35 rail
• Clear marking and color coding for easy identification
• High reliability and low maintenance

Suitable for

  • Industrial control panels
  • Building automation systems
  • Electrical distribution and junction boxes
  • Machine and plant engineering

Key specifications

  • Connection Technology: CAGE CLAMP® Push-in
  • Number of Conductors: 3
  • Number of Potentials: 1
  • Nominal Cross-Section: 2.5 mm²
  • Solid Conductor Size: 0.08 - 2.5 mm² (28 - 12 AWG)
  • Fine-Stranded Conductor Size: 0.08 - 2.5 mm² (28 - 12 AWG)
  • Nominal Voltage (EN): 800 V
  • Rated Surge Voltage (EN): 8 kV
  • Nominal Current (EN): 24 A
  • Mounting Type: DIN-35 Rail
  • Color: Grey
  • Insulation Material: Polyamide (PA)
  • Stripping Length: 9 - 11 mm (0.35 - 0.43 inch)
  • Wiring Type: Front-entry wiring
  • Pollution Degree: 3
  • Flammability Rating: UL94 V0
  • Series: TOPJOB S 280 Series

Recommendations

For optimal performance, use with WAGO marking strips and accessories. Ensure proper stripping length and conductor insertion for secure connections.

Specifications
AWG wire size
28-12 AWG
Brand
WAGO
Category
Terminal Blocks
EAN
4044918311328
Housing material
Polyamide (PA)
Model
280-833
MPN
280-833
Product colour
Grey
