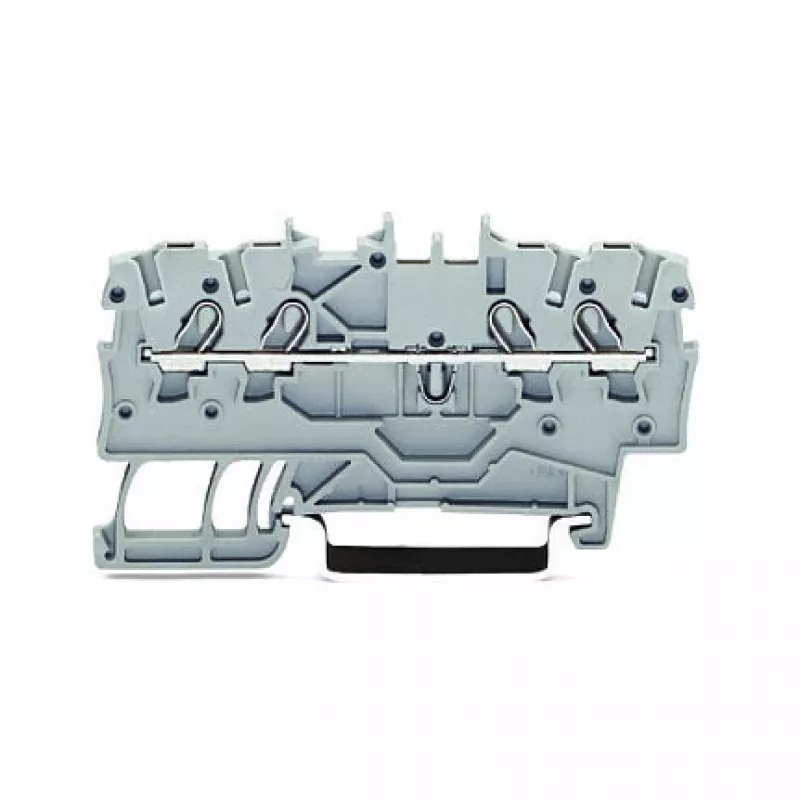

WAGO Feed-Through Terminal Block 4 mm², Gray, 32 A, 800 V, CAGE CLAMP®

The WAGO 2000-1405 feed-through terminal block is a high-quality, compact solution for wiring applications requiring reliable and maintenance-free connections. Designed for DIN-rail mounting, this 4 mm² terminal block features the proven CAGE CLAMP® connection technology, ensuring fast, secure, and vibration-resistant terminations. With a rated voltage of 800 V and a nominal current of 32 A, it is suitable for a wide range of industrial and commercial electrical installations.

Advantages

• CAGE CLAMP® connection technology for tool-free, gas-tight connections
• Compact design saves space on the DIN rail
• High-quality polyamide (PA66) housing with V0 flammability rating for enhanced safety
• Wide operating temperature range from -35 to +105 °C
• Front-entry wiring simplifies installation and maintenance

Suitable for

• Industrial control cabinets
• Building automation systems
• Power distribution panels
• Machine wiring

Key specifications

• Number of Potentials: 1
• Number of Connection Points: 2
• Connection Technology: CAGE CLAMP®
• Nominal Cross-Section: 4 mm² (AWG 12)
• Conductor Range: 0.25 - 4 mm² (AWG 22 - 12)
• Rated Voltage (III/3): 800 V
• Rated Surge Voltage (III/3): 8 kV
• Nominal Current: 32 A
• Mounting Type: DIN-rail 35 x 15 / 35 x 7.5
• Color: Gray
• Insulation Material: Polyamide (PA66)
• Stripping Length: 9 - 11 mm (0.35 - 0.43 inch)
• Pollution Degree: 3
• Flammability Class (UL94): V0
• Operating Temperature: -35 to +105 °C
• Connection Direction: Front-entry wiring

Recommendations

For optimal performance, use with WAGO marking strips and end brackets. Ensure proper stripping length and conductor insertion for reliable connections.
