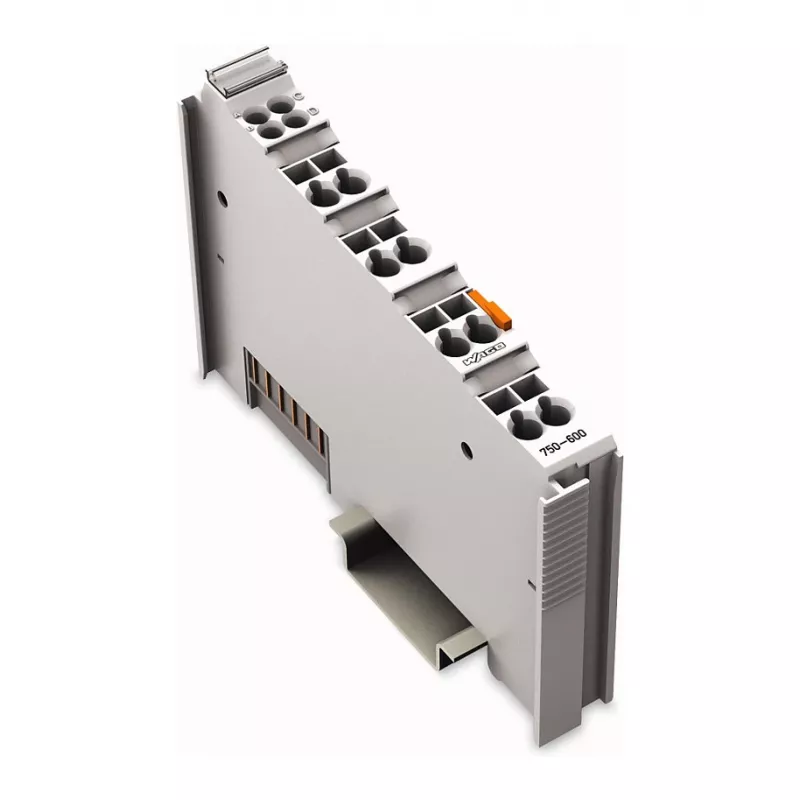

WAGO 750-600 System Power Supply, 24V DC Input, 5V DC Output, 2A, DIN-Rail Mount

The WAGO 750-600 is a high-efficiency system power supply designed for use with WAGO 750 Series I/O modules. It converts a 24V DC input (20.4 ... 28.8 V) to a regulated 5V DC output at 2A, providing reliable power for fieldbus couplers and controllers. With a compact design (12 x 100 x 69.8 mm) and DIN-rail mounting, it integrates seamlessly into industrial control cabinets.

Advantages

High efficiency (typ. 80%) reduces power loss and heat generation. Electrical isolation of 500 V between system and field supply ensures safe operation. CAGE CLAMP® connection technology provides fast, vibration-proof wiring. Wide operating temperature range (-25 to 85 °C storage) and high humidity tolerance (0-95% non-condensing) make it suitable for demanding environments.

Suitable for

• WAGO 750 Series I/O systems
• Industrial automation and control cabinets
• DIN-rail mounted power distribution
• Applications requiring isolated 5V DC supply

Key specifications

• Input voltage: DC 24 V (20.4 ... 28.8 V)
• Output voltage: DC 5 V
• Output current: 2 A
• Power loss typ.: 2.5 W
• Efficiency typ.: 80%
• Isolation: 500 V system/field supply
• Mounting: DIN-rail 35 mm
• Operating temperature: 0 ... 55 °C
• Storage temperature: -25 ... 85 °C
• Relative humidity: 0 ... 95 % (non-condensing)
• Protection: IP20
• Connection: CAGE CLAMP®
• Housing: Polycarbonate, Polyamide 6.6
• Dimensions: 12 x 100 x 69.8 mm
• Weight: approx. 50 g

Recommendations

For optimal performance, use with WAGO 750 Series bus couplers and controllers. Ensure adequate ventilation and observe derating at elevated temperatures. Always follow local electrical codes and safety regulations.
