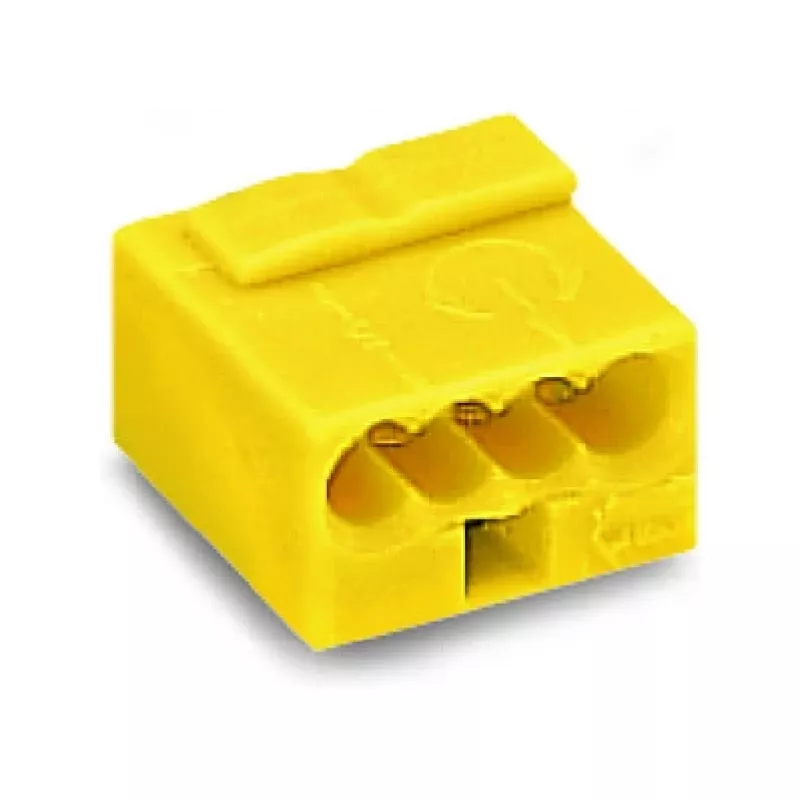

WAGO 243-504 COMPACT Lighting Connector, Female, 4-Pole, Push-wire, 400 V, 24 A, 100 pcs

The WAGO 243-504 is a high-quality COMPACT lighting connector designed for reliable and efficient electrical connections. This female connector features 4 poles and utilizes the proven CAGE CLAMP® push-wire connection technology for fast and tool-free wiring. Rated for 400 V and 24 A, it is suitable for a wide range of lighting and industrial applications. The transparent polycarbonate housing allows for easy visual inspection of the connection. Supplied in a pack of 100 pieces, ideal for professional installers and volume projects.

Advantages

Tool-free push-wire connection saves installation time. Compact design fits in tight spaces. Transparent housing enables quick visual check of conductor insertion. High reliability with CAGE CLAMP® technology. Suitable for solid conductors from 0.5 to 2.5 mm² (20-14 AWG). Wide operating temperature range from -35 to +105 °C.

Suitable for

• Lighting installations in junction boxes
• Industrial control cabinets
• Building automation systems
• Distribution boards and enclosures

Key specifications

• Connector Type: COMPACT Lighting Connector
• Connection Method: Push-wire (CAGE CLAMP®)
• Number of Poles: 4
• Gender: Female
• Rated Voltage (EN): 400 V
• Rated Impulse Voltage: 4 kV
• Rated Current (EN): 24 A
• Conductor Compatibility: Solid
• Min. Conductor Cross-Section (Solid): 0.5 mm²
• Max. Conductor Cross-Section (Solid): 2.5 mm²
• Min. Conductor Cross-Section (AWG): 20 AWG
• Max. Conductor Cross-Section (AWG): 14 AWG
• Wiring Direction: Side-entry
• Color: Transparent
• Housing Material: Polycarbonate (PC)
• Flammability Rating: UL94 V-2
• Operating Temperature Range: -35 to +105 °C
• Pack Quantity: 100 pieces

Recommendations

For optimal performance, use with WAGO original tools and accessories. Ensure conductors are fully inserted and latched. Suitable for solid copper conductors only.
