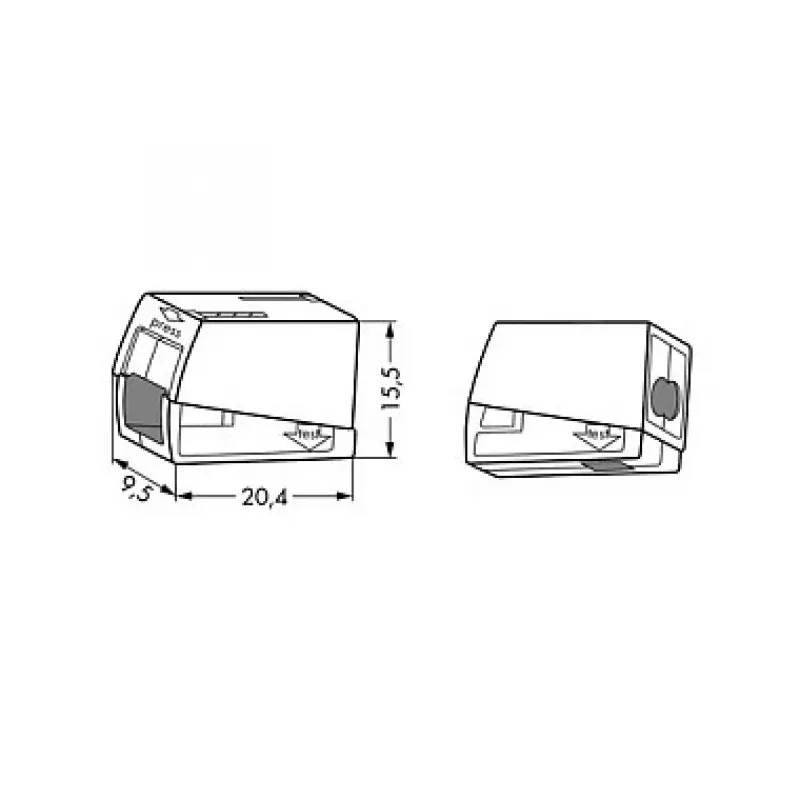

WAGO 224-112 2-Conductor Compact Splicing Connector, 400V, 24A, 1-2.5mm², Push-in, White/Transparent

The WAGO 224-112 is a compact 2-conductor splicing connector from the WAGO 224 Series, designed for reliable and tool-free wiring in junction boxes and lighting applications. With push-in termination for solid conductors and CAGE CLAMP® for fine-stranded wires, it ensures fast, secure connections. Rated at 400V and 24A, it accommodates solid conductors from 1 to 2.5 mm² (18-12 AWG) and fine-stranded from 0.5 to 2.5 mm² (20-12 AWG). The transparent polycarbonate housing provides visual inspection of conductor insertion, while the UL94 V-0 flammability rating guarantees safety. Operating temperature range is -35°C to +85°C.

Advantages

Tool-free push-in termination for solid conductors saves installation time. Compact design fits tight spaces. Transparent housing allows easy inspection. High reliability with CAGE CLAMP® spring technology for fine-stranded wires. Suitable for a wide range of conductor sizes.

Suitable for

• Junction boxes
• Lighting fixtures
• Control cabinets
• General electrical wiring

Key specifications

• Number of Conductors: 2
• Connection Type: Push-in (solid), CAGE CLAMP® (fine-stranded)
• Rated Voltage (EN): 400 V
• Rated Impulse Voltage: 4 kV
• Rated Current (EN): 24 A
• Solid Conductor Size: 1 - 2.5 mm² (18 - 12 AWG)
• Fine-Stranded Conductor Size: 0.5 - 2.5 mm² (20 - 12 AWG)
• Stripping Length: 9 - 11 mm (0.35 - 0.43 inch)
• Wiring Type: Side-entry wiring
• Color: White/Transparent
• Insulation Material: Polycarbonate (PC)
• Contact Material: Electrolytic copper (Cu ETP)
• Flammability Rating: UL94 V-0
• Pollution Degree: 2
• Operating Temperature: -35 °C to +85 °C
• Mounting Type: Free wiring
• Product Series: WAGO 224 Series

Recommendations

For optimal performance, ensure conductors are properly stripped to 9-11 mm and fully inserted. Use only with compatible conductor types and sizes. Store in a dry environment.
