WAGO 2016-7714 TOPJOB S Through Terminal Block, 2-Conductor, Push-in, 1000V, 76A, Gray, 0.5-25 mm², DIN Rail

The WAGO 2016-7714 is a high-quality through terminal block from the TOPJOB S series, designed for reliable and efficient wiring in industrial and building installations. With its push-in CAGE CLAMP connection technology, it enables fast, tool-free wiring of solid and stranded conductors, saving time and ensuring secure connections. This 2-conductor terminal block is rated for 1000V and 76A, making it suitable for demanding applications.

Advantages

Push-in connection technology allows direct insertion of solid conductors without tools, reducing installation time. The compact design saves space on the DIN rail. The transparent housing provides visual inspection of conductor insertion. V0 flammability rating ensures high safety standards.

Suitable for

• Industrial control cabinets
• Building automation systems
• Power distribution
• Machine wiring

Key specifications

• Series: TOPJOB S
• Connection type: Through terminal block
• Connection technology: Push-in CAGE CLAMP
• Number of conductors: 2
• Number of potentials: 1
• Number of levels: 1
• Nominal voltage (IEC/EN): 1000 V
• Nominal current (IEC/EN): 76 A (for 16 mm² conductor)
• Rated impulse voltage: 8 kV
• Conductor size (solid/stranded): 0.5 - 25 mm² (AWG 20 - 4)
• Conductor size (fine-stranded): 0.5 - 16 mm² (AWG 20 - 6)
• Stripping length: 18 - 20 mm
• Mounting type: DIN rail (35 mm)
• Housing material: Polyamide (PA 66)
• Color: Gray
• Flammability class: UL94 V0
• Operating temperature: -35 °C to +85 °C

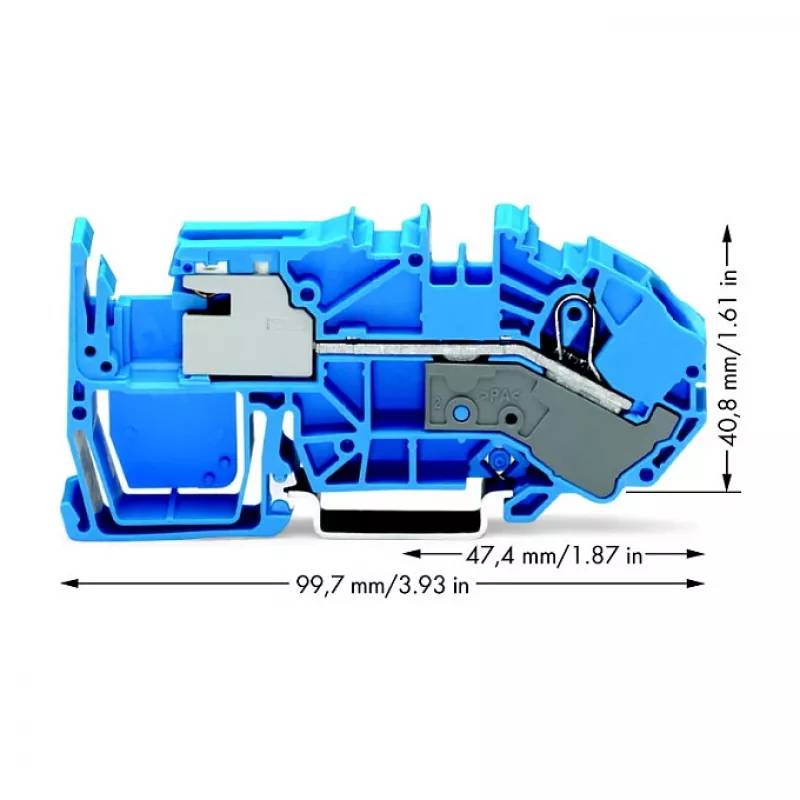

• Dimensions (W x H x D): 12 mm x 86 mm x 40.8 mm

Recommendations

For optimal performance, ensure proper conductor stripping length and use appropriate tools for fine-stranded conductors if needed. This terminal block is ideal for high-current applications requiring reliable connections.
