WAGO 2016-7114 2-Conductor Through Terminal Block, 2.5 mm², 250 V, Gray

The WAGO 2016-7114 is a compact 2-conductor through terminal block from the 2016 series, designed for reliable and maintenance-free wiring in industrial and building installations. Featuring the innovative Push-in CAGE CLAMP® connection technology, it enables fast and tool-free connection of solid and fine-stranded conductors. With a rated voltage of 250 V and a rated current of 24 A, this terminal block is suitable for a wide range of applications. The gray polyamide housing offers high mechanical strength and a flammability rating of UL94 V-0, ensuring safety and durability.

Advantages

Tool-free Push-in connection for solid conductors saves installation time. Compact design saves space on the DIN rail. Clear marking and test point allow easy identification and testing. Vibration-proof and maintenance-free connection ensures long-term reliability.

Suitable for

• Control cabinets and distribution boards
• Building automation and lighting systems
• Machine and plant engineering
• General electrical installations requiring secure conductor termination

Key specifications

• Number of conductors: 1 (2 connection points)
• Connection technology: Push-in CAGE CLAMP®
• Rated voltage (III/2): 250 V
• Rated impulse voltage (III/2): 4 kV
• Rated current: 24 A
• Rated cross-section: 2.5 mm²
• Solid conductor: 0.5 - 4 mm² (20 - 12 AWG)
• Fine-stranded conductor: 0.5 - 4 mm² (20 - 12 AWG)
• Fine-stranded with ferrule: 0.5 - 2.5 mm² (20 - 14 AWG)
• Stripped length: 9 - 11 mm
• Mounting type: Screw mounting
• Color: Gray
• Insulation material: Polyamide (PA)
• Flammability rating: UL94 V-0
• Pollution degree: 2

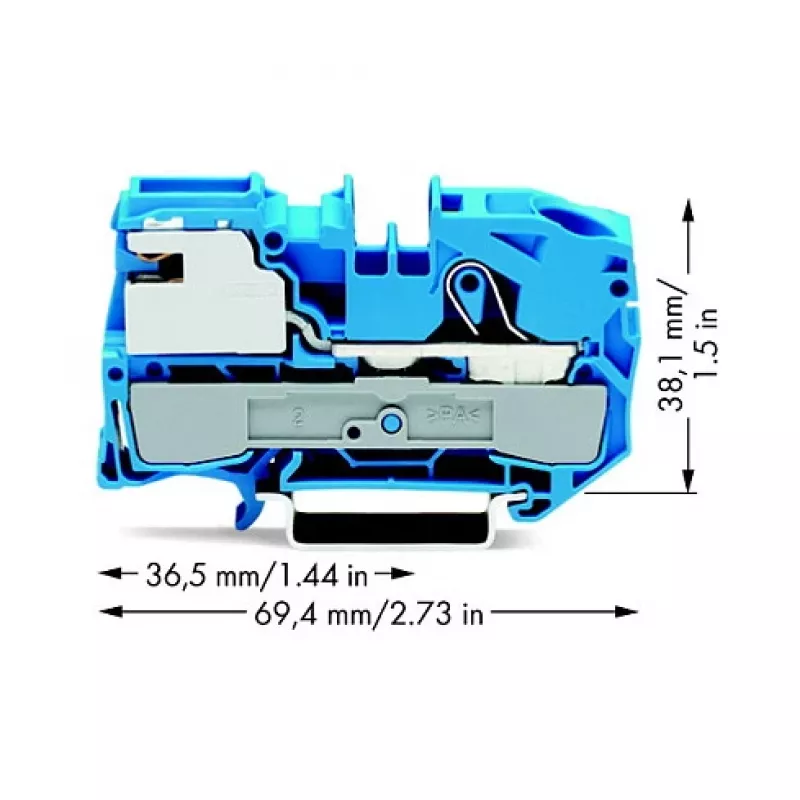

• Dimensions (W x H x D): 12 mm x 69 mm x 38.1 mm

Recommendations

For optimal performance, use with WAGO marking strips and test plugs. Ensure proper stripping length and conductor preparation for reliable Push-in connection.
