WAGO 2016-1304 TOPJOB S Through Terminal Block, 4-Conductor, 16 mm², 800 V, Gray

The WAGO 2016-1304 is a high-quality through terminal block from the TOPJOB S series, designed for reliable and efficient electrical connections. With CAGE CLAMP® S push-in connection technology, it ensures fast, tool-free wiring for solid and fine-stranded conductors. This 4-conductor, 1-potential terminal block is rated for 800 V and 76 A, making it suitable for a wide range of industrial and building automation applications.

Advantages

Push-in actuation reduces installation time; compact design saves space on DIN-35 rail; vibration-proof and maintenance-free connections; high temperature resistance and UL 94 V-0 flammability rating for safety.

Suitable for

• Control cabinets and switchgear
• Building automation and lighting systems
• Industrial machinery and equipment
• Power distribution and junction boxes

Key specifications

• Terminal block type: Through terminal block
• Series: TOPJOB S
• Number of conductors: 4
• Number of potentials: 1
• Connection technology: CAGE CLAMP® S
• Actuation type: Push-in
• Nominal cross-section: 16 mm² (AWG 6)
• Solid conductor range: 0.5 ... 25 mm² (20 ... 4 AWG)
• Fine-stranded conductor range: 0.5 ... 16 mm² (20 ... 6 AWG)
• Stripping length: 18 ... 20 mm
• Mounting type: DIN-35 rail
• Color: Gray
• Rated voltage (EN): 800 V
• Rated impulse voltage: 8 kV
• Rated current (EN): 76 A
• Pollution degree: 3
• Overvoltage category: III
• Insulation material: Polyamide (PA 66)
• Flammability rating: UL 94 V-0
• Operating temperature: -35 ... +105 °C

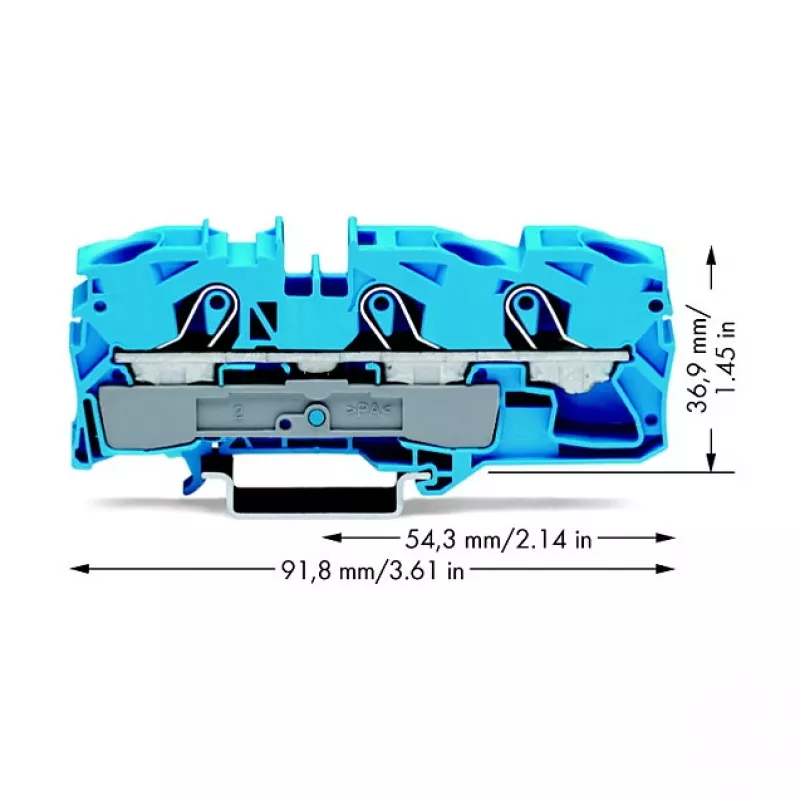

• Dimensions (WxHxD): 12 mm x 91.8 mm x 36.9 mm

Recommendations

For optimal performance, use with WAGO marking strips and accessories. Ensure proper stripping length and conductor insertion for secure connections.
