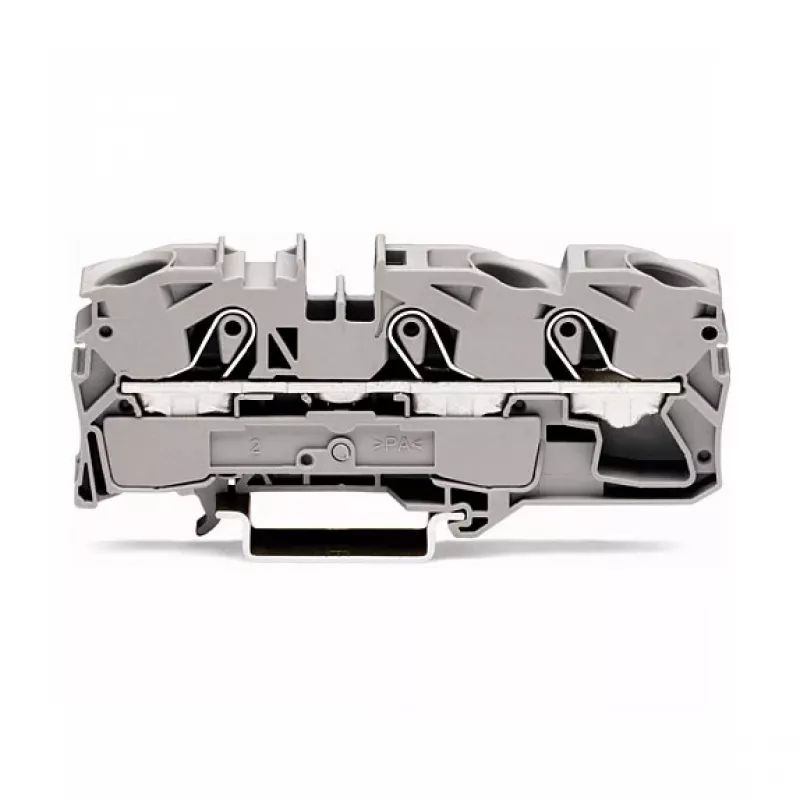

WAGO 2016-1301 Feedthrough Terminal Block - 12 mm - 91.8 mm - 36.9 mm - 800 V

The WAGO 2016-1301 is a high-quality feedthrough terminal block designed for reliable and efficient electrical connections. With a compact design and push-in CAGE CLAMP® technology, it ensures fast, tool-free wiring for solid and stranded conductors. Ideal for industrial control cabinets and junction boxes, this terminal block offers a rated voltage of 800 V and a rated current of 76 A, making it suitable for demanding applications.

Advantages

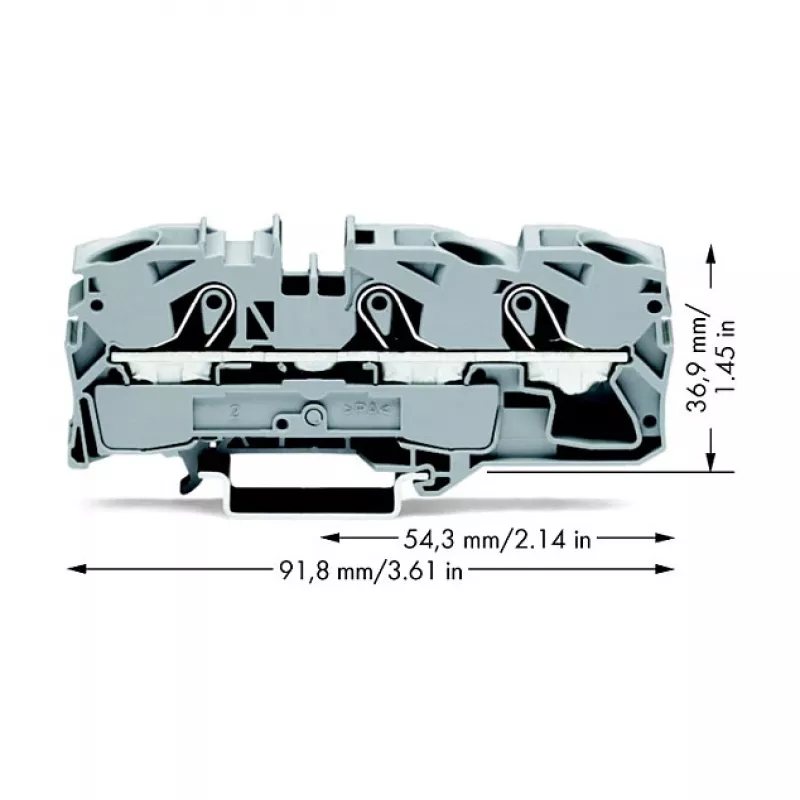

Push-in CAGE CLAMP® connection technology enables quick and secure conductor termination without special tools. The compact dimensions (12 mm width, 91.8 mm height, 36.9 mm depth) save space on DIN-35 rails. The gray polyamide housing with UL94 V-0 flammability rating ensures high safety and durability. Wide operating temperature range from -35 to +85 °C allows use in various environments.

Suitable for

• Industrial control panels and switchgear
• Building automation and distribution boards
• Machine and plant engineering
• Electrical installations requiring reliable feedthrough connections

Key specifications

• Type: Feedthrough Terminal Block
• Number of Conductors: 2
• Number of Potentials: 1
• Connection Technology: Push-in CAGE CLAMP®
• Nominal Cross-section: 16 mm² (AWG 6)
• Conductor Size (Solid/Stranded): 0.5 - 16 mm² (AWG 20 - AWG 6)
• Conductor Size (Fine-stranded): 0.5 - 16 mm² (AWG 20 - AWG 6)
• Rated Voltage (EN 60947-7-1): 800 V
• Rated Impulse Voltage: 8 kV
• Rated Current (EN 60947-7-1): 76 A
• Mounting Type: DIN-35 Rail
• Color: Gray
• Insulation Material: Polyamide (PA 66)
• Flammability Rating: UL94 V-0
• Pollution Degree: 3
• Operating Temperature: -35 to +85 °C
• Stripping Length: 18 - 20 mm

Recommendations

For optimal performance, use with WAGO marking strips and accessories. Ensure proper conductor stripping length (18-20 mm) for secure connection. Suitable for use in pollution degree 3 environments.
