WAGO 2010-1307 TOPJOB S 3-Conductor Through Terminal Block, 10 mm Width, 89 mm Height, 36.9 mm Depth, Gray, 0.5-16 mm², 1000 V, 76 A

The WAGO 2010-1307 is a high-quality through terminal block from the TOPJOB S series, designed for reliable and maintenance-free electrical connections. With a compact width of 10 mm, it is ideal for space-saving installations on DIN rails. The push-in CAGE CLAMP® connection technology ensures fast and secure wiring without the need for tools, accommodating solid, stranded, and fine-stranded conductors from 0.5 to 16 mm² (20 to 6 AWG). Rated for 1000 V (IEC) and 76 A (IEC), this terminal block is suitable for demanding industrial applications.

Advantages

Tool-free push-in connection saves installation time and reduces labor costs. The compact 10 mm width allows for high-density wiring, optimizing cabinet space. Vibration-proof and maintenance-free connections ensure long-term reliability. The gray polyamide housing with UL94 V-0 flammability rating provides excellent fire safety.

Suitable for

• Industrial control panels and switchgear
• Building automation and lighting systems
• Power distribution and junction boxes
• Machine building and plant engineering

Key specifications

• Series: TOPJOB S
• Connection Technology: Push-in CAGE CLAMP®
• Number of Conductors: 3
• Number of Potentials: 1
• Nominal Cross Section (Solid): 0.5 - 16 mm² (20 - 6 AWG)
• Nominal Cross Section (Stranded): 0.5 - 16 mm² (20 - 6 AWG)
• Nominal Cross Section (Fine-stranded): 0.5 - 10 mm² (20 - 8 AWG)
• Nominal Voltage (IEC): 1000 V
• Nominal Current (IEC): 76 A
• Nominal Voltage (UL): 600 V
• Nominal Current (UL): 65 A
• Mounting Type: DIN-rail (TS 35)
• Color: Gray
• Insulating Material: Polyamide (PA 66)
• Flammability Rating: UL94 V-0
• Pollution Degree: 3
• Stripping Length: 18 - 20 mm
• Operating Temperature: -35 °C to +85 °C

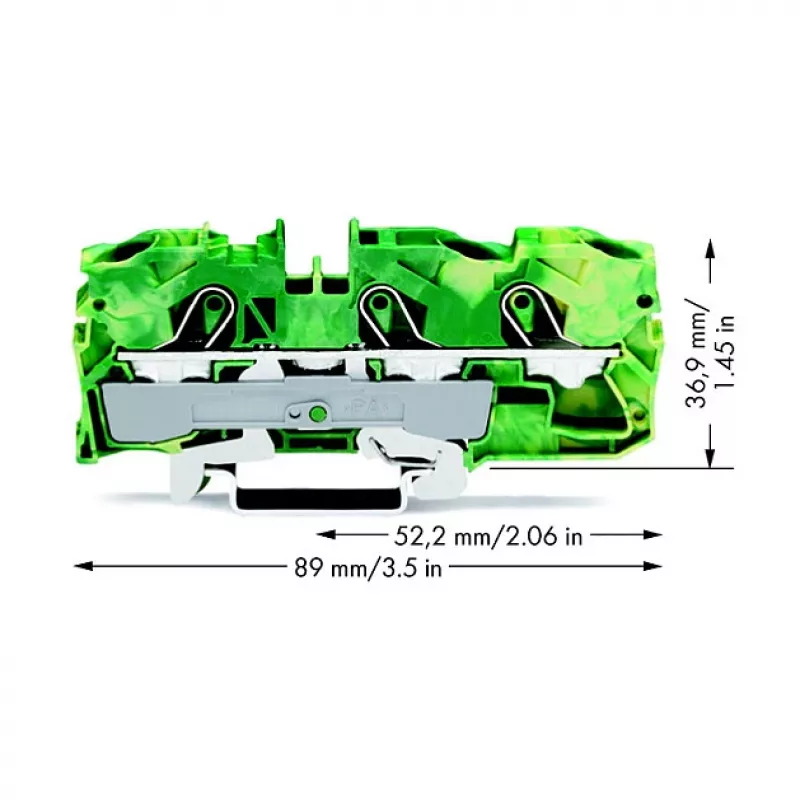

• Width: 10 mm
• Height: 89 mm
• Depth: 36.9 mm

Recommendations

For optimal performance, use with WAGO marking strips and accessories. Ensure proper stripping length (18-20 mm) for reliable connections. Suitable for use with copper conductors only.
