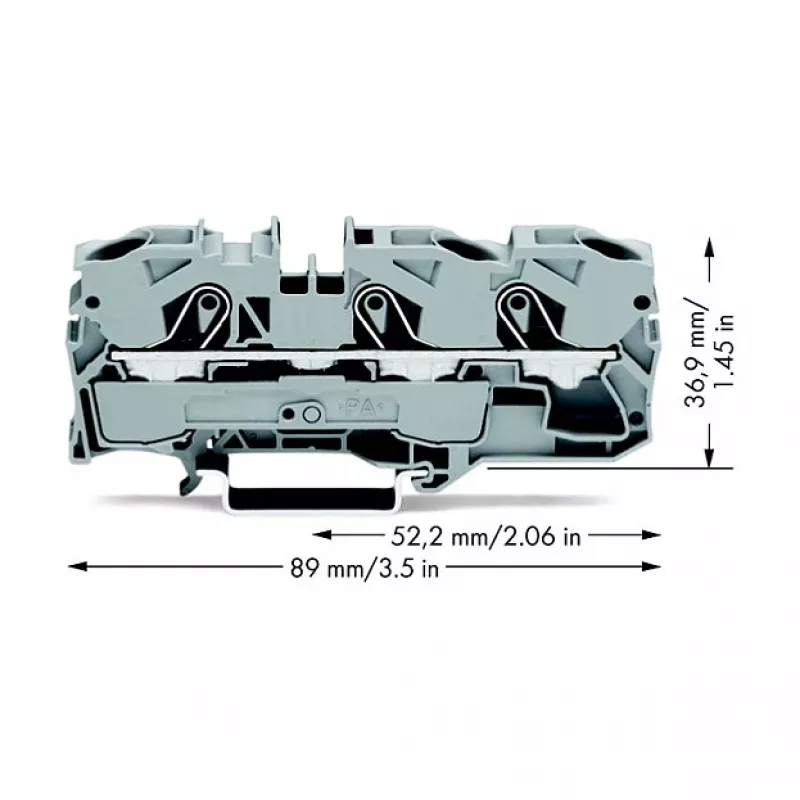

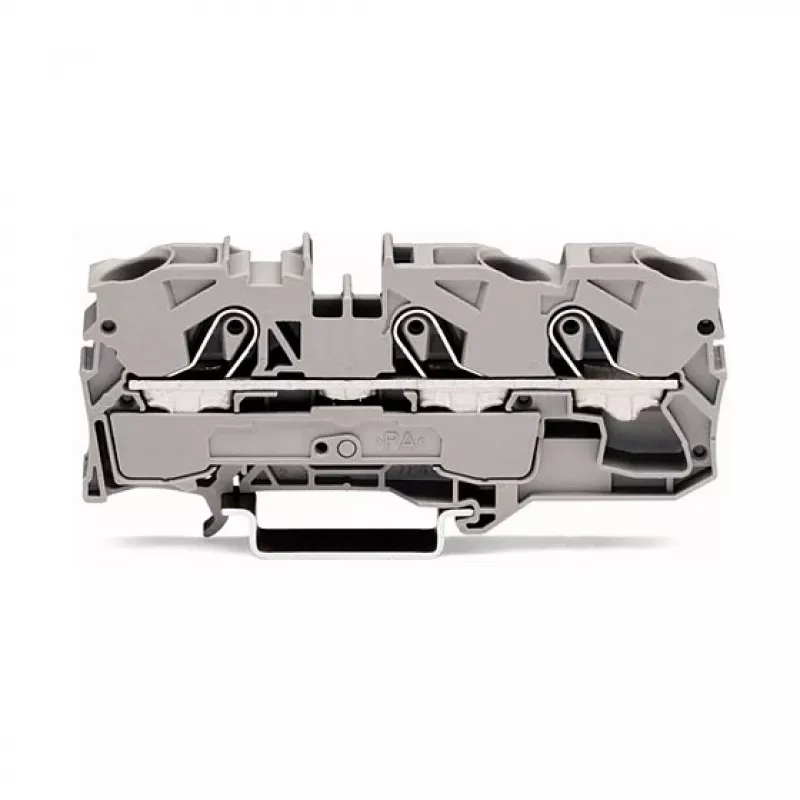

WAGO 2010-1301 Through Terminal Block, 10 mm², 800 V, Gray, DIN Rail Mount

The WAGO 2010-1301 is a high-quality through terminal block designed for reliable and safe electrical connections. With a rated voltage of 800 V and a nominal cross-section of 10 mm², it is ideal for industrial and commercial applications. The terminal block features CAGE CLAMP® connection technology for fast and maintenance-free wiring.

Advantages

Push-in actuation and push-button operation allow for tool-free wiring, saving time and effort. The compact design saves space on the DIN rail. The gray polyamide housing offers high mechanical strength and excellent electrical insulation.

Suitable for

• Industrial control cabinets
• Building automation systems
• Power distribution
• Machine building

Key specifications

• Connection Technology: CAGE CLAMP®
• Actuation Type: Push-in; Push-button
• Number of Potentials: 1
• Number of Connection Points: 2
• Total Number of Poles: 1
• Rated Voltage (III/3): 800 V
• Rated Impulse Voltage (III/3): 8 kV
• Rated Current: 41 A
• Nominal Cross Section: 10 mm²
• Solid Conductor Size: 0.5 ... 16 mm² (20 ... 6 AWG)
• Fine-Stranded Conductor Size: 0.5 ... 16 mm² (20 ... 6 AWG)
• Mounting Type: DIN-35 Rail
• Color: Gray
• Insulation Material: Polyamide (PA)
• Pollution Degree: 3
• Flammability Rating: UL94 V-0
• Operating Temperature: -35 ... +85 °C

Recommendations

For optimal performance, use with WAGO marking strips and accessories. Ensure proper tightening torque as per manufacturer guidelines.
