WAGO 2006-7114 TOPJOB S Feed-Through Terminal Block, 4-Conductor, 6 mm², Grey, DIN-Rail Mount

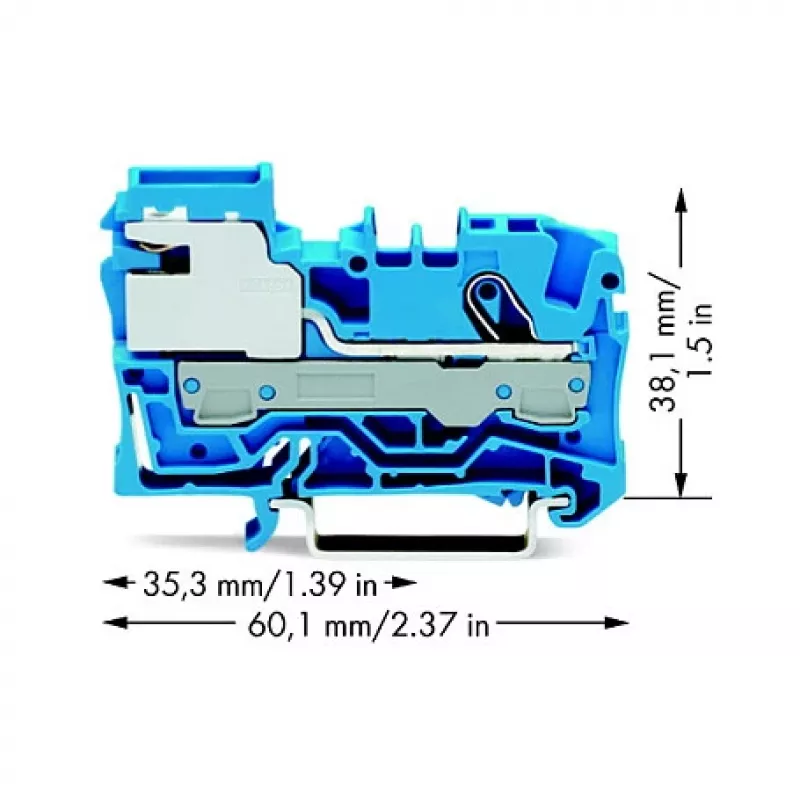

The WAGO 2006-7114 is a high-quality feed-through terminal block from the TOPJOB S series, designed for reliable and maintenance-free electrical connections. With 4 conductors and a nominal cross-section of 6 mm² (AWG 10), this terminal block is ideal for industrial control panels, building automation, and power distribution systems. Its compact dimensions (7.5 mm width, 60 mm height, 38.1 mm depth) save valuable space on the DIN-rail (TS 35).

Advantages

Push-in CAGE CLAMP® connection technology ensures fast, tool-free wiring for solid and stranded conductors. The transparent housing allows visual inspection of conductor insertion. Rated voltage up to 800 V (EN 60947-7-1) and rated current up to 41 A make it suitable for demanding applications. The polyamide (PA 66) insulation material with UL94 V-0 flammability rating guarantees high safety and durability.

Suitable for

• Industrial control cabinets
• Building automation systems
• Power distribution and junction boxes
• Ex e II applications (250 V, 20 A)

Key specifications

• Series: TOPJOB S
• Number of conductors: 4
• Nominal cross-section: 6 mm² (AWG 10)
• Connection technology: Push-in CAGE CLAMP®
• Mounting type: DIN-rail (TS 35)
• Colour: Grey
• Rated voltage (Ex e II): 250 V
• Rated current (Ex e II): 20 A
• Rated voltage (EN 60947-7-1): 800 V
• Rated impulse voltage: 8 kV
• Rated current (EN 60947-7-1): 41 A
• Solid conductor size: 0.5 ... 10 mm² (20 ... 8 AWG)
• Stranded conductor size: 0.5 ... 10 mm² (20 ... 8 AWG)
• Fine-stranded conductor size: 0.5 ... 6 mm² (20 ... 10 AWG)
• Strip length: 18 ... 20 mm
• Insulation material: Polyamide (PA 66)
• Flammability rating: UL94 V-0
• Operating temperature: -35 ... +85 °C
• Number of potentials: 1

Recommendations

For optimal performance, use WAGO ferrule crimpers and marking strips. Ensure proper strip length (18-20 mm) for reliable connection. Suitable for use with WAGO 2006 series accessories.
