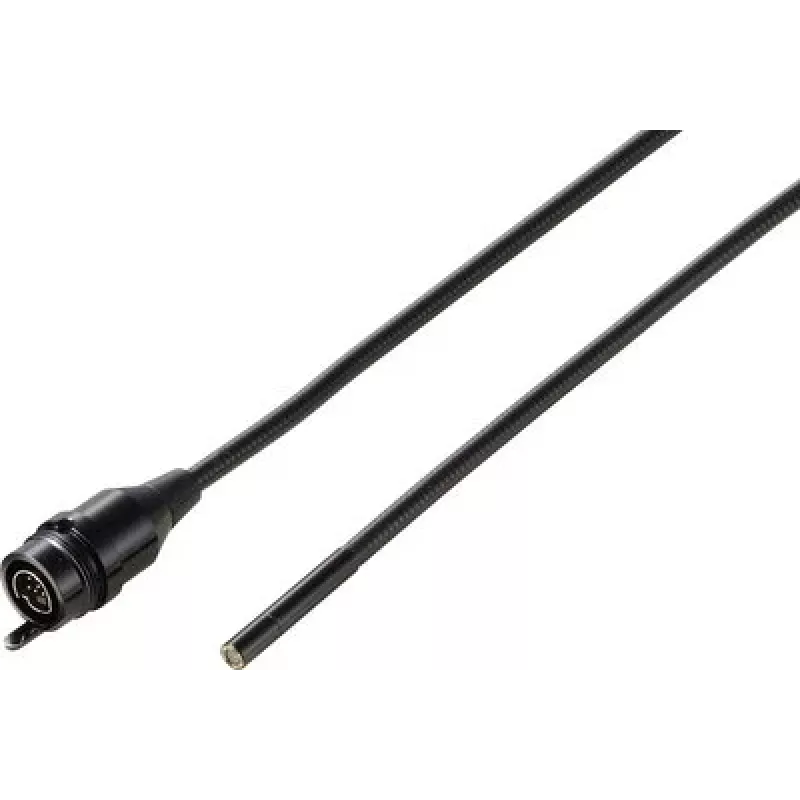

VOLTCRAFT BS-801 Camera Cable Probe 5.5 mm, 1 m, LED Illumination, Swivel Function, High-Resolution, Waterproof (VC-18667015)

Inspecting tight, dark, or hard-to-reach spaces often means compromising on image quality or articulation. The VOLTCRAFT BS-801 Camera Cable Probe solves this by combining a slim 5.5 mm diameter with Full HD resolution, adjustable LED lighting, and a 2-way swivel head that bends up to 180° in each direction. Designed as a dedicated accessory for the VOLTCRAFT BS-801 endoscope system, this 1 m semi-rigid cable lets you capture clear visuals in automotive, HVAC, plumbing, and industrial maintenance tasks without disassembling equipment.

Who is it for

Technicians, mechanics, electricians, and DIY enthusiasts who need reliable visual inspection of engines, walls, pipes, or machinery. It is particularly useful for professionals who already own a VOLTCRAFT BS-801 base unit and require a replacement or additional probe for different inspection scenarios.

Main features

• High-resolution 1920 x 1080 pixel camera for sharp, detailed images
• 5.5 mm probe diameter fits into narrow openings
• 1 m semi-rigid cable maintains shape for guided navigation
• 2-way articulation with 180° swivel in each direction for full 360° coverage
• Four adjustable LEDs provide optimal illumination in dark cavities
• IP67 waterproof rating on probe and cable for wet or dusty environments
• 70° field of view and 30–80 mm focus distance for close-up clarity
• Proprietary connector ensures seamless integration with BS-801 system

Specifications

• Probe diameter: 5.5 mm
• Cable length: 1 m
• Articulation: 2-way, 2 x 180°
• Camera resolution: 1920 x 1080 px (Full HD)
• Illumination: 4 adjustable LEDs
• Field of view: 70°
• Focus distance: 30–80 mm
• Water resistance: IP67 (probe and cable)
• Operating temperature: 0 to 45 °C
• Connector: Proprietary for VOLTCRAFT BS-801
• Material: Flexible cable, metal probe head

Tips

To extend the life of the probe, avoid bending the cable beyond its natural articulation range and clean the lens after each use with a soft, dry cloth. When inspecting wet areas, ensure the connector remains dry and properly seated. For best image quality, adjust the LED brightness according to the reflectivity of the surface being inspected.
