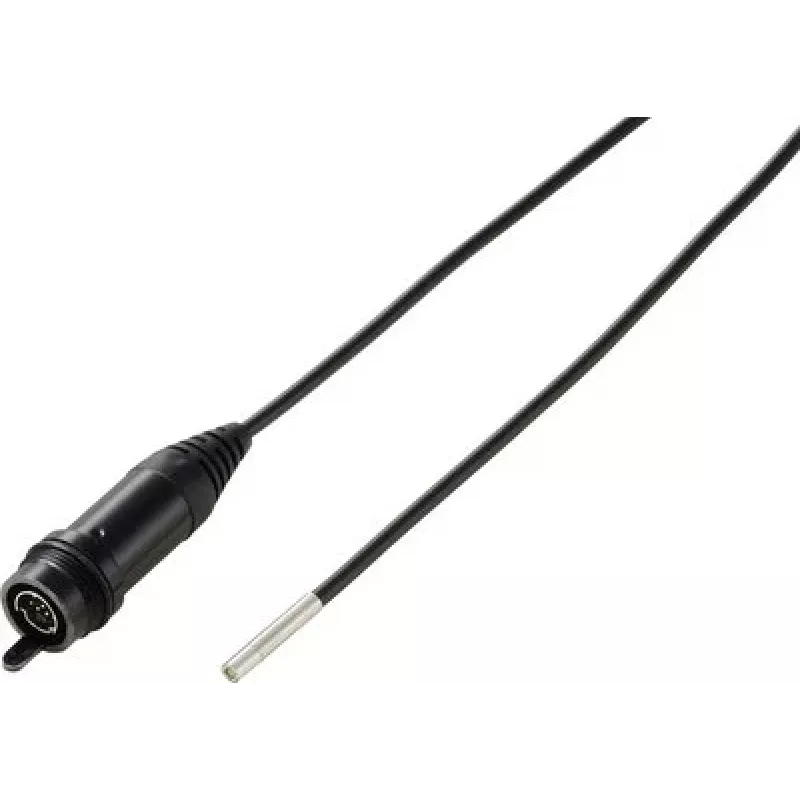

VOLTCRAFT BS-803 Camera Cable Probe 3.9 mm 1 m HD, LED Illumination, Articulating, Waterproof (VC-18667025)

Inspecting tight, dark, or hard-to-reach spaces often means guesswork—until now. The VOLTCRAFT BS-803 Camera Cable Probe replaces uncertainty with a clear, high-definition view, letting you see exactly what’s inside pipes, walls, engines, and machinery before you act. With a slim 3.9 mm probe head, integrated LED lighting, and a two-way articulating tip, this accessory turns your compatible BS-803 borescope into a versatile inspection tool for professional diagnostics and DIY troubleshooting alike.

Who is it for

This camera cable is built for technicians, mechanics, electricians, plumbers, and serious hobbyists who need reliable visual access in confined areas. Whether you’re checking for corrosion inside an engine, tracing wiring behind a panel, or locating a blockage in a drain, the BS-803 probe delivers the detail you need to make informed decisions without unnecessary disassembly.

Main features

• Ultra-slim 3.9 mm diameter probe head fits into extremely narrow openings
• High-definition 1280 x 720 pixel camera captures sharp, detailed images
• Two-way articulation (90° left/right, 180° total) lets you steer the tip around obstacles
• Six integrated LED lights with adjustable brightness illuminate dark cavities
• IP67 waterproof rating on probe head and cable allows use in wet or submerged environments
• 1 m semi-rigid flexible cable holds its shape for precise positioning
• 70° field of view and 15–100 mm depth of field cover a wide range of inspection distances
• Durable stainless steel probe head withstands demanding job sites
• Proprietary multi-pin connector ensures secure attachment to the BS-803 main unit
• Operates in temperatures from -10 to 50 °C for year-round use

Specifications

• Probe diameter: 3.9 mm
• Probe length: 1 m
• Articulation: two-way, 90° left/right (180° total)
• Illumination: 6 adjustable LED lights
• Camera resolution: 1280 x 720 pixels (HD)
• Waterproof rating: IP67 (probe head and cable)
• Field of view: 70°
• Depth of field: 15 mm to 100 mm
• Compatibility: VOLTCRAFT BS-803 Borescope
• Cable type: semi-rigid flexible
• Operating temperature: -10 to 50 °C
• Storage temperature: -20 to 60 °C
• Connector type: proprietary multi-pin
• Probe head material: stainless steel
• Power source: powered by main unit

Tips

To extend the life of your probe, avoid bending the cable beyond its natural radius and clean the lens after each use with a soft, dry cloth. When inspecting wet areas, ensure the connector remains dry—only the probe head and cable are waterproof. For best image quality, adjust the LED brightness to match the ambient light inside the inspection area.
