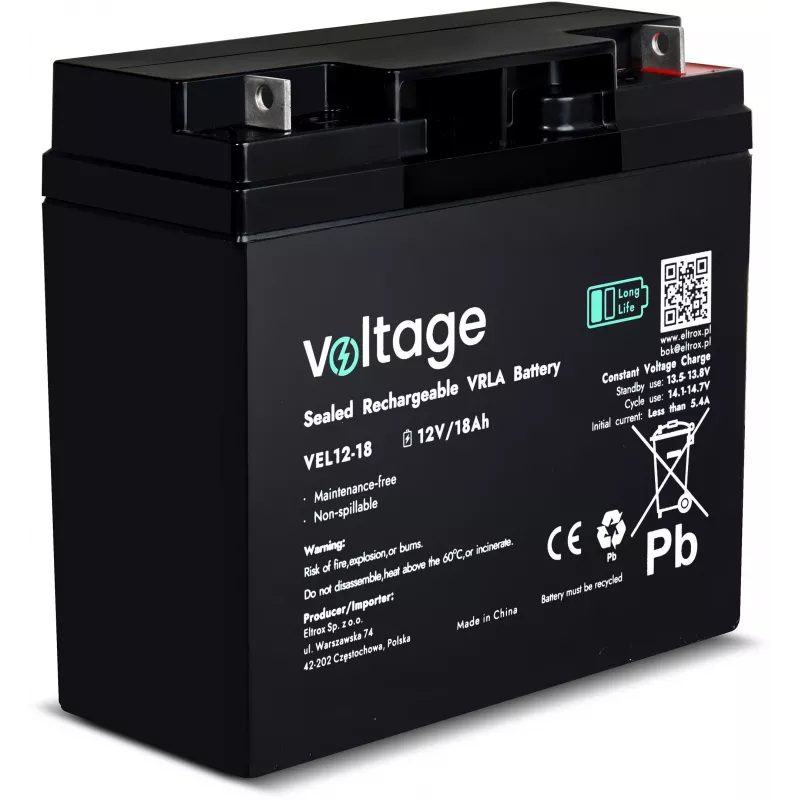

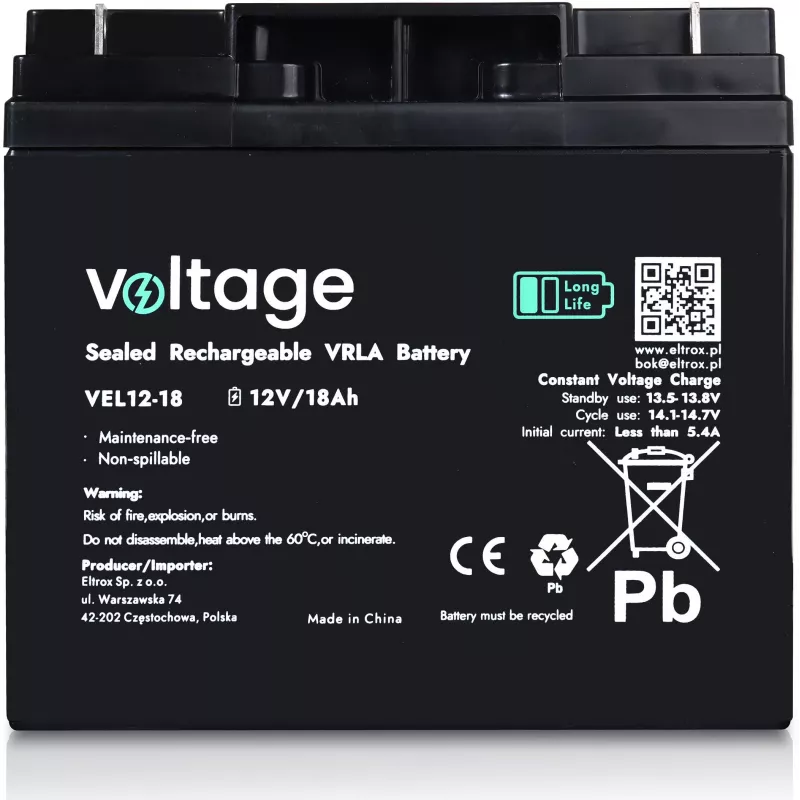

VOLTAGE AGM Long Life Battery 12V 18Ah VEL12-18

The VOLTAGE VEL12-18 is a high-quality AGM (Absorbent Glass Mat) VRLA battery designed for long-life applications. With a nominal voltage of 12V and a capacity of 18Ah (C20), this maintenance-free battery offers exceptional reliability and a design life of up to 15 years. It is ideal for use in UPS systems, alarm systems, emergency lighting, telecommunications, solar power, and medical equipment.

Advantages

This battery features AGM technology, which ensures low internal resistance, high discharge rates, and excellent cycle stability. The immobilized electrolyte makes it spill-proof and safe for use in various orientations. With a self-discharge rate of less than 3% per month, it retains charge longer when not in use.

Suitable for

• UPS (Uninterruptible Power Supplies)
• Alarm and security systems
• Emergency lighting
• Telecommunications equipment
• Solar power storage
• Medical devices

Key specifications

• Battery Technology: AGM VRLA
• Nominal Voltage: 12 V
• Nominal Capacity (C20): 18 Ah
• Design Life: 15 years

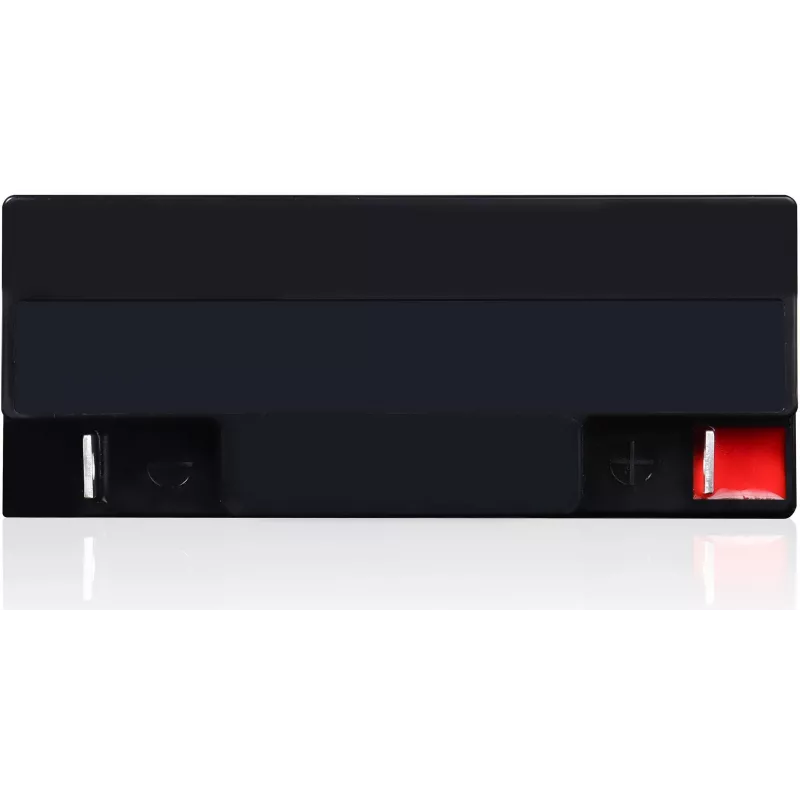

• Terminal Type: F2 (Faston 250)
• Internal Resistance: Approx. 13 mΩ
• Max. Discharge Current (5s): 180 A
• Max. Charging Current: 5.4 A (0.3C)
• Float Charge Voltage: 13.5 - 13.8 V (at 25°C)
• Cycle Use Voltage: 14.4 - 14.7 V (at 25°C)
• Operating Temperature Range (Discharge): -20°C to 50°C
• Operating Temperature Range (Charge): -10°C to 50°C
• Self-Discharge Rate: < 3% per month (at 25°C)
• Container Material: ABS Plastic
• Electrolyte: Sulfuric acid immobilized in fiberglass mat

Recommendations

For optimal performance and longevity, use a compatible charger with appropriate voltage settings. Ensure proper ventilation during charging. This battery is a direct replacement for many standard 12V 18Ah AGM batteries.
