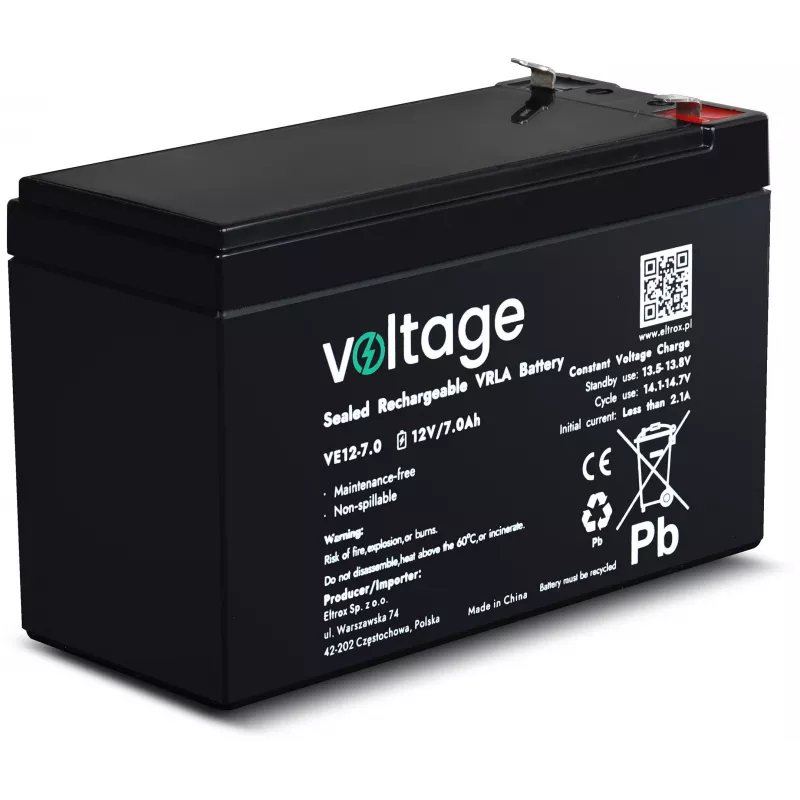

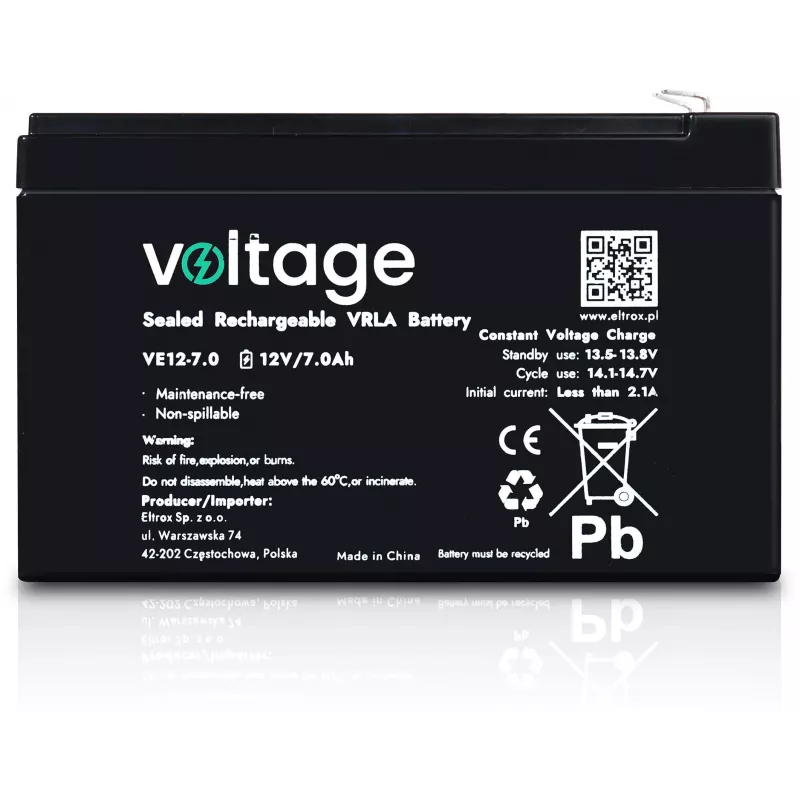

VOLTAGE AGM Battery 12V 7Ah VE12-7.0 (6-9 Years Lifespan)

The VOLTAGE VE12-7.0 is a high-quality AGM (Absorbed Glass Mat) battery designed for reliable backup power and cyclic applications. With a nominal voltage of 12V and a capacity of 7Ah, it offers a long design lifespan of 6-9 years, making it ideal for security systems, UPS, emergency lighting, and other standby power needs. The battery features F1 (Faston 187) terminals and a durable ABS housing.

Advantages

Maintenance-free operation with no water refilling required. Low self-discharge rate of less than 3% per month at 25°C ensures long shelf life. Excellent deep discharge recovery and high discharge current capability up to 105A for 5 seconds. The AGM technology provides spill-proof construction and safe operation in any orientation.

Suitable for

• Uninterruptible Power Supplies (UPS)
• Security and alarm systems
• Emergency lighting
• Medical equipment
• Telecommunications
• Solar energy storage
• Electric wheelchairs and scooters

Key specifications

• Battery Type: AGM (Absorbed Glass Mat)
• Nominal Voltage: 12V
• Nominal Capacity: 7Ah
• Design Lifespan: 6-9 years (Eurobat Classification: Standard Commercial)
• Terminal Type: F1 (Faston 187)
• Max Discharge Current: 105A (5 seconds)
• Max Charge Current: 2.1A
• Float Charge Voltage: 13.5V - 13.8V
• Cyclic Charge Voltage: 14.4V - 15.0V
• Internal Resistance: Approx. 25 mΩ
• Self-Discharge Rate: <3% per month at 25°C
• Operating Temperature Range (Discharge): -20°C to 60°C
• Operating Temperature Range (Charge): 0°C to 50°C
• Operating Temperature Range (Storage): -20°C to 60°C
• Housing Material: ABS
• Height with Terminals: 100 mm

Recommendations

For optimal performance and longevity, use a compatible charger with appropriate voltage settings. Store in a cool, dry place. Do not short-circuit or dispose of in fire. Recycle according to local regulations.
