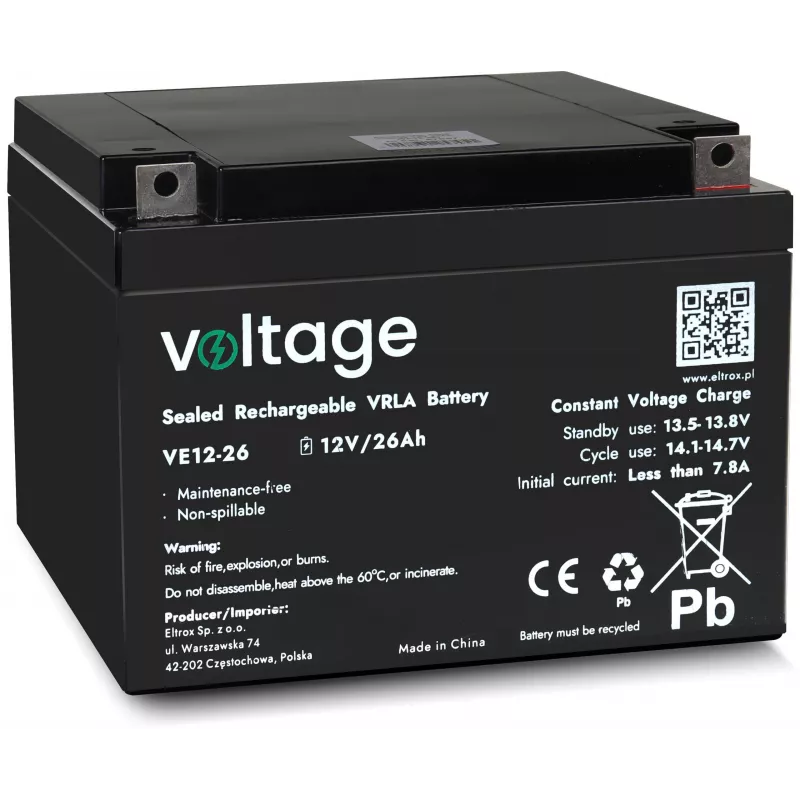

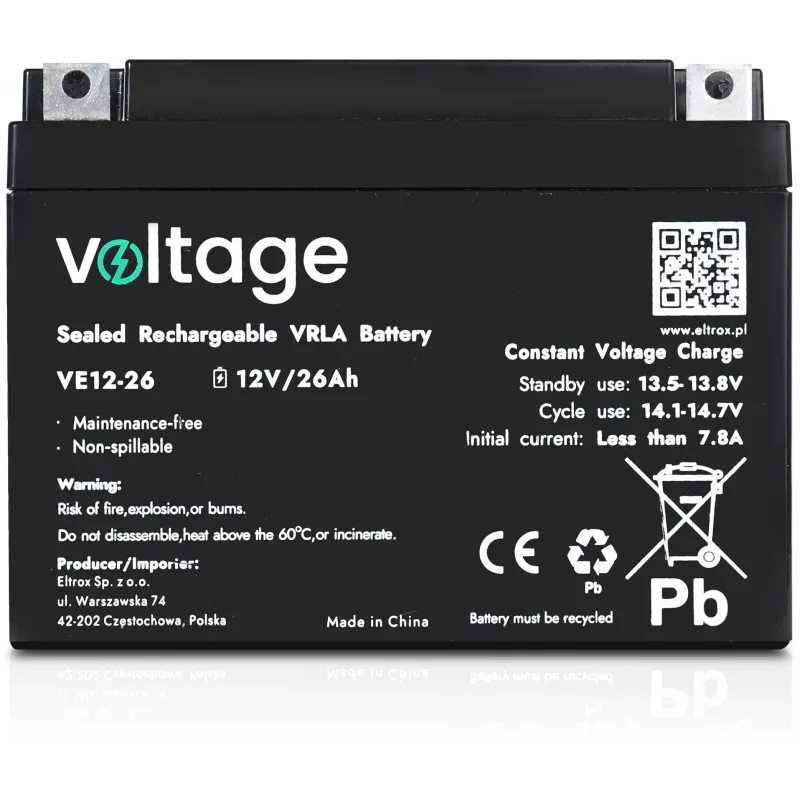

VOLTAGE AGM Battery 12V 26Ah VE12-26 (6-9 Years Lifespan)

The VOLTAGE VE12-26 is a high-quality AGM (Absorbent Glass Mat) battery designed for reliable backup power and cyclic applications. With a nominal voltage of 12V and a capacity of 26Ah (C20), this maintenance-free, valve-regulated lead-acid (VRLA) battery offers a design lifespan of 6-9 years, making it ideal for UPS systems, emergency lighting, security systems, solar power, telecommunications, and medical equipment.

Advantages

Sealed and maintenance-free construction eliminates the need for water refilling. The immobilized electrolyte in absorbent glass mat ensures safe operation in any position. Low self-discharge rate (less than 3% per month at 25°C) allows for long storage periods. High discharge current capability (260A for 5 seconds) supports demanding applications.

Suitable for

• UPS (Uninterruptible Power Supplies)
• Emergency lighting systems
• Security and alarm systems
• Solar power storage
• Telecommunications equipment
• Medical devices

Key specifications

• Battery Type: AGM (Absorbent Glass Mat)
• Nominal Voltage: 12V
• Nominal Capacity: 26Ah (C20)
• Design Lifespan: 6-9 years (EUROBAT General Purpose)
• Terminal Type: M5 Bolt (F3/T3)
• Internal Resistance: ≤ 10 mΩ @ 25°C
• Max Discharge Current: 260A (5 seconds)
• Max Charge Current: 7.8A
• Float Charge Voltage: 13.5V - 13.8V @ 25°C
• Cycle Use Voltage: 14.4V - 14.7V @ 25°C
• Operating Temperature (Discharge): -20°C to 50°C
• Operating Temperature (Charge): -10°C to 50°C
• Self-Discharge Rate: < 3% per month @ 25°C
• Construction: Sealed, Maintenance-Free, VRLA

Recommendations

For optimal performance and longevity, use this battery in a well-ventilated area and follow the recommended charging voltages. Always recycle lead-acid batteries responsibly.
