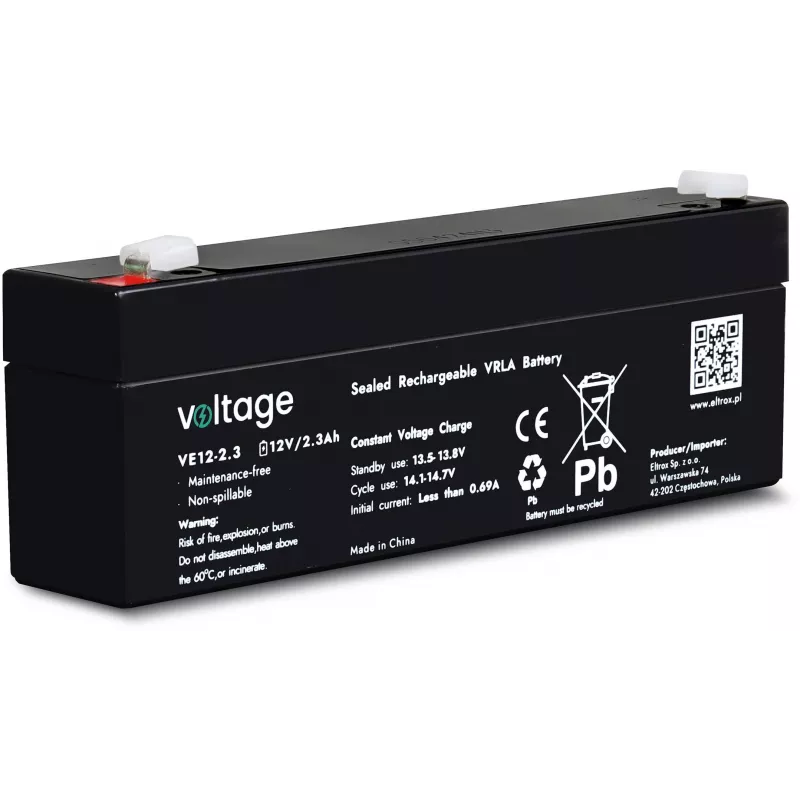

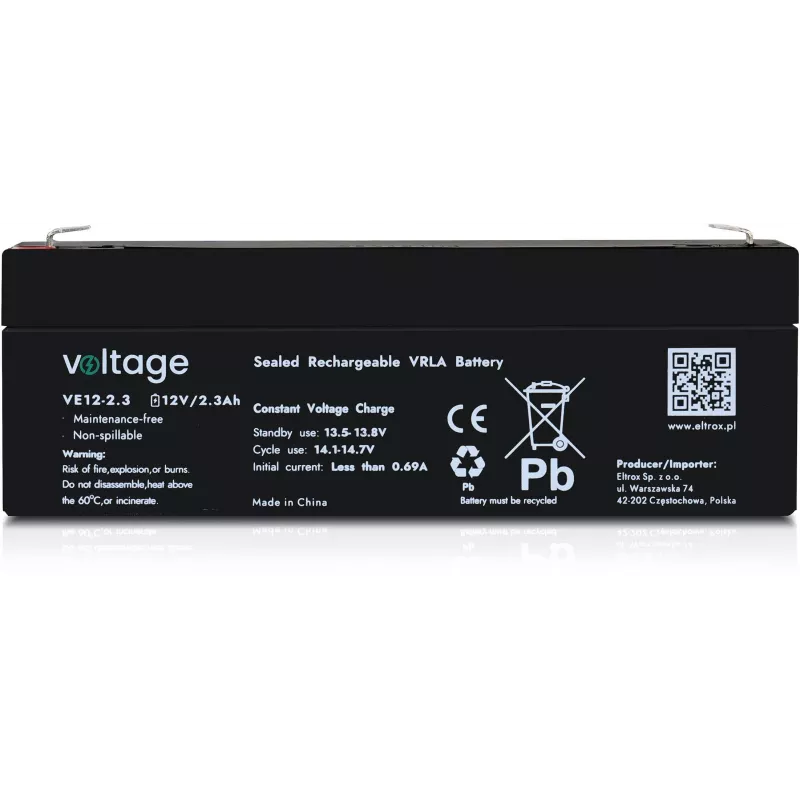

VOLTAGE AGM Battery 12V 2.3Ah VE12-2.3 (6-9 Years Life)

The VOLTAGE VE12-2.3 is a high-quality AGM (Absorbent Glass Mat) battery designed for reliable backup power and cyclic applications. With a nominal voltage of 12V and a capacity of 2.3Ah (C20), this VRLA battery offers a design life of 6-9 years, making it ideal for UPS systems, security alarms, emergency lighting, medical equipment, and portable devices. Its maintenance-free construction and low self-discharge rate ensure long-lasting performance with minimal upkeep.

Advantages

Sealed AGM technology eliminates the need for water refilling and allows operation in any orientation. The battery features a low internal resistance of approximately 60 mΩ, enabling high discharge currents up to 34.5A for 5 seconds. It is compliant with CE, ISO9001, and ISO14001 standards, ensuring safety and environmental responsibility. The ABS container (UL94-HB) provides durability and flame resistance.

Suitable for

• UPS (Uninterruptible Power Supplies)
• Security and alarm systems
• Emergency lighting
• Medical equipment
• Portable electronic devices

Key specifications

• Battery Type: AGM (VRLA)
• Nominal Voltage: 12V
• Nominal Capacity: 2.3 Ah (C20)
• Design Life: 6-9 Years (EUROBAT General Purpose)
• Terminal Type: F1 (Faston Tab 187)
• Internal Resistance: ~60 mΩ
• Max Discharge Current (5 sec): 34.5 A
• Max Charging Current: 0.69 A
• Float Charge Voltage: 13.5V - 13.8V (at 25°C)
• Cycle Use Voltage: 14.4V - 15.0V (at 25°C)
• Operating Temperature (Discharge): -15°C to 50°C
• Operating Temperature (Charge): -15°C to 40°C
• Self-Discharge: <3% per month at 20°C
• Container Material: ABS (UL94-HB)
• Certifications: CE, ISO9001, ISO14001
• Dimensions (Case): 66mm total height (60mm case height)

Recommendations

For optimal performance and longevity, use a compatible charger with voltage settings within the specified float or cycle ranges. Store in a cool, dry environment. Always follow manufacturer guidelines for installation and disposal.
