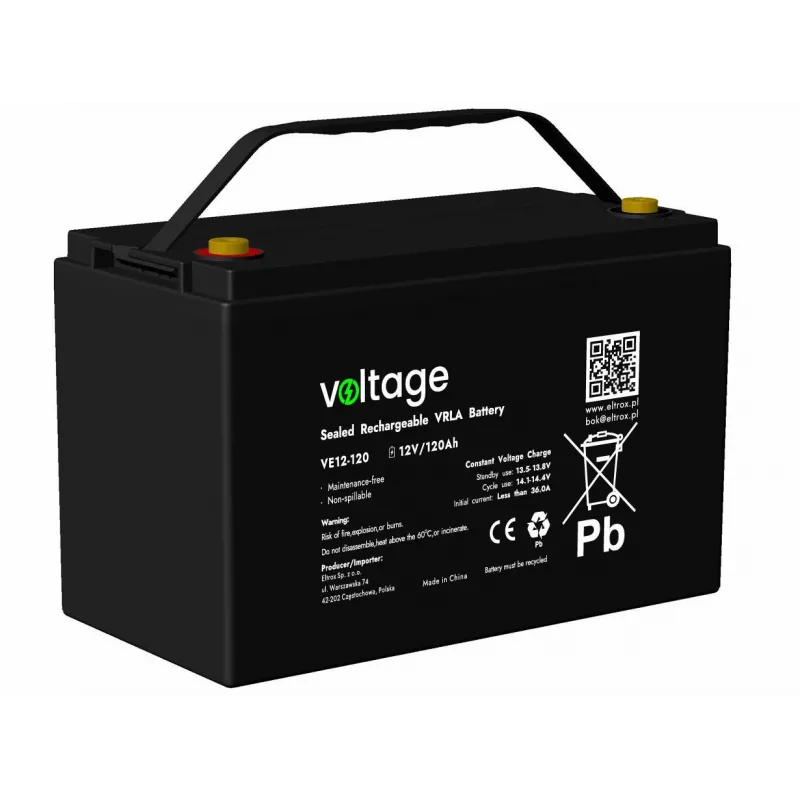

VOLTAGE AGM Battery 12V 120Ah VE12-120 (6-9 Years Lifespan)

The VOLTAGE VE12-120 is a high-performance AGM (Absorbent Glass Mat) battery designed for reliable backup power and cyclic applications. With a nominal voltage of 12V and a capacity of 120Ah (C10), this maintenance-free, sealed battery delivers consistent power for UPS systems, solar installations, telecommunications, emergency lighting, and alarm systems. Its robust design ensures a long service life of 6-9 years under standard Eurobat Commercial conditions.

Advantages

This AGM battery offers deep cycle capability, low self-discharge (approx. 3% per month at 25°C), and excellent recovery after deep discharge. The sealed construction prevents electrolyte leakage and allows installation in any orientation (except inverted). With M8 bolt terminals (T11), it ensures secure and easy connection. The ABS container provides durability and resistance to impact.

Suitable for

• UPS (Uninterruptible Power Supply) systems
• Solar power storage
• Telecommunications equipment
• Emergency lighting
• Alarm and security systems

Key specifications

• Battery Technology: AGM (Absorbent Glass Mat)
• Nominal Voltage: 12V
• Nominal Capacity (C10): 120 Ah
• Design Lifespan: 6-9 years (Eurobat Standard Commercial)
• Terminal Type: M8 Bolt (T11)
• Max. Discharge Current (5 sec): 1200 A
• Max. Charging Current: 36 A
• Float Charge Voltage: 13.5V - 13.8V (at 25°C)
• Cycle Use Voltage: 14.4V - 14.7V (at 25°C)
• Operating Temperature Range (Discharge): -20°C to 50°C
• Operating Temperature Range (Charge): -10°C to 50°C
• Self-Discharge Rate: Approx. 3% per month at 25°C
• Internal Resistance: Approx. 3.5 mΩ (fully charged, 25°C)
• Container Material: ABS
• Number of Cells: 6
• Energy Content: 1440 Wh
• Maintenance: Maintenance-free, Sealed
• Certification: CE

Recommendations

For optimal performance and longevity, use this battery in a well-ventilated area and follow the recommended charging voltages. Ensure the battery is fully charged before first use. Regularly check terminal connections for tightness and cleanliness.
